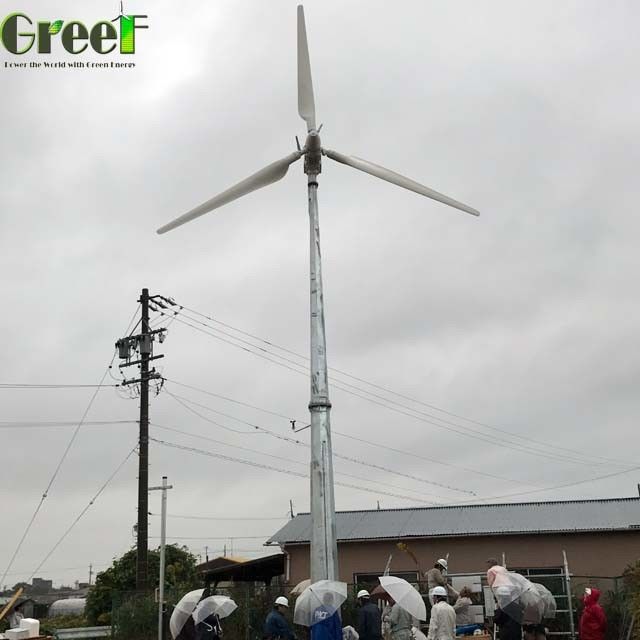

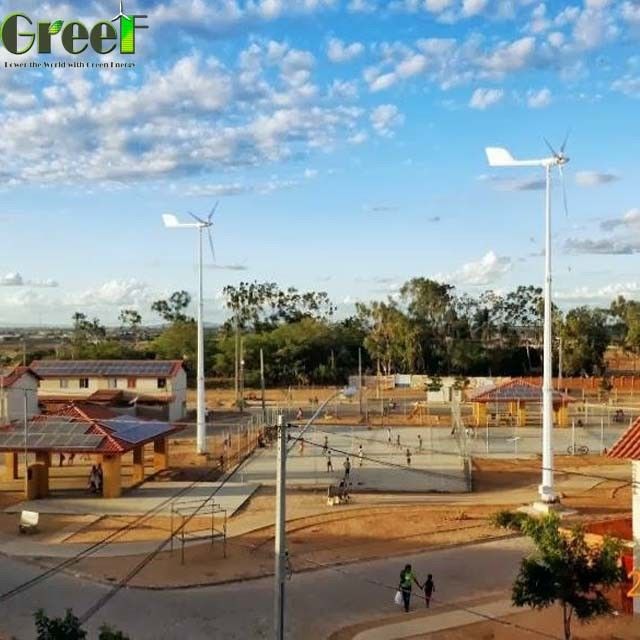

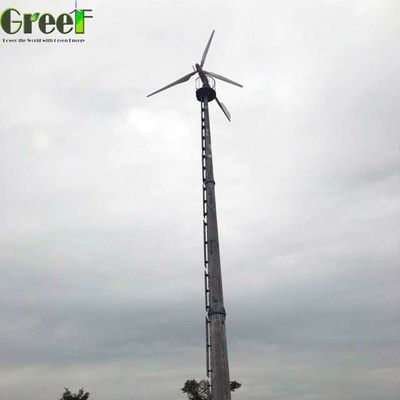

Small Horizontal Pitch Control Wind Turbine Generator System Home 20kw

Small Horizontal Pitch Control Wind Turbine Generator System Home 20kw
Small Horizontal Pitch Control Wind Turbine Generator System Home 20kw

Large Image :  Small Horizontal Pitch Control Wind Turbine Generator System Home 20kw

Product Details:
Place of Origin: CHINA
Brand Name: GREEF
Certification: CE
Model Number: AH-20KW
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $299-12999
Packaging Details: Inner Foam + Plywooden case
Delivery Time: 25DAY
Payment Terms: L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 25 Units
Contact Now
Detailed Product Description
Rated Rotor Speed: 20-900RRM Type: Wind Power Generator
Application: Electricity Generation Warranty: 2 Years
Tolerance: +/-0.1mm Or According To Customer Request Life Time: 20 Years
High Light:

Pitch Control Wind Turbine Generator System

,

20kw Pitch Control Wind Turbine

,

20kw wind turbine pitch system

Small Pitch Control Horizontal Wind Turbine Generator System Home 20kw

Why choose AH-20KW wind turbine?
Leading technology-intelligent control, strong system scalability
1. The world's best wind power control technology is combined with the self-developed variable pitch technology.
2. The hardware design uses international well-known brands, and the software uses redundant control strategies.
3. It can achieve good compatibility with various well-known brand converters and remote modules.
A lot of power generation-variable pitch control, high-efficiency output, power generation up to 30%
1. Above the rated wind speed, the pitch angle of the blades can be adjusted to achieve continuous full power output.
2. The working wind speed range is large (3-25m/s), and the effective running time is long.
Recommended for:
· Household,Garden,Farm,Urban ,Rooftop
· Telecom sites.
· Rural electrification programs. Island , sentry, island, sight lighting
· Automatic speed reduction protection
Technical specification
Model
AH-20KW
Wind rotor diameter (m)
9.8
Blade material and quantity
Fiber glass reinforced * 3
Rated power (w)
20,000
Rated wind speed (m/s)
11
Rated rotate speed (rpm)
175
Working wind speed (m/s)
3-25
Start up wind speed (m/s)
2.5
Survived wind speed (m/s)
59.5
Working voltage (v)
DC450V
Speed regulation method
Pitch control + Active yawing +electromagnet brake
Stop method
Pitch controlled brake +Active yawing
Generator style
Three phase, permanent magnet
Wind turbine weight (kg)
1210
Products Description
Small Horizontal Pitch Control Wind Turbine Generator System Home 20kw 0
Using the world's leading mechanical centrifugal variable pitch technology, the average annual power generation is 30% more
(1) Large initial blade angle (+9 ), excellent acceleration performance, start at low wind speed of 2.5m/s;
(2) Below the rated wind speed, the wind turbine outputs efficiently;
(3) Above the rated wind speed, adjust the pitch angle so that the rotor speed is maintained near the rated speed and the power output is stable.
Project case

20kW In France


Small Horizontal Pitch Control Wind Turbine Generator System Home 20kw 1
Small Horizontal Pitch Control Wind Turbine Generator System Home 20kw 2

20kW In Kashgar


Small Horizontal Pitch Control Wind Turbine Generator System Home 20kw 3
Small Horizontal Pitch Control Wind Turbine Generator System Home 20kw 4



Systems
Small Horizontal Pitch Control Wind Turbine Generator System Home 20kw 5
Small Horizontal Pitch Control Wind Turbine Generator System Home 20kw 6
Small Horizontal Pitch Control Wind Turbine Generator System Home 20kw 7
Small Horizontal Pitch Control Wind Turbine Generator System Home 20kw 8
Why Choose Us
We are global supplier which focus on Permanent Magnet generator, wind turbine , wind turbine blades, controller, invertor etc.
"GREEF" have its own engineer design team which is design products ourselves. Moreover, we have successfully obtained CE approvals and supports from our customers, which boost our business day by day!
Believe in us, we can accompany you forever.
Small Horizontal Pitch Control Wind Turbine Generator System Home 20kw 9​
Small Horizontal Pitch Control Wind Turbine Generator System Home 20kw 10
