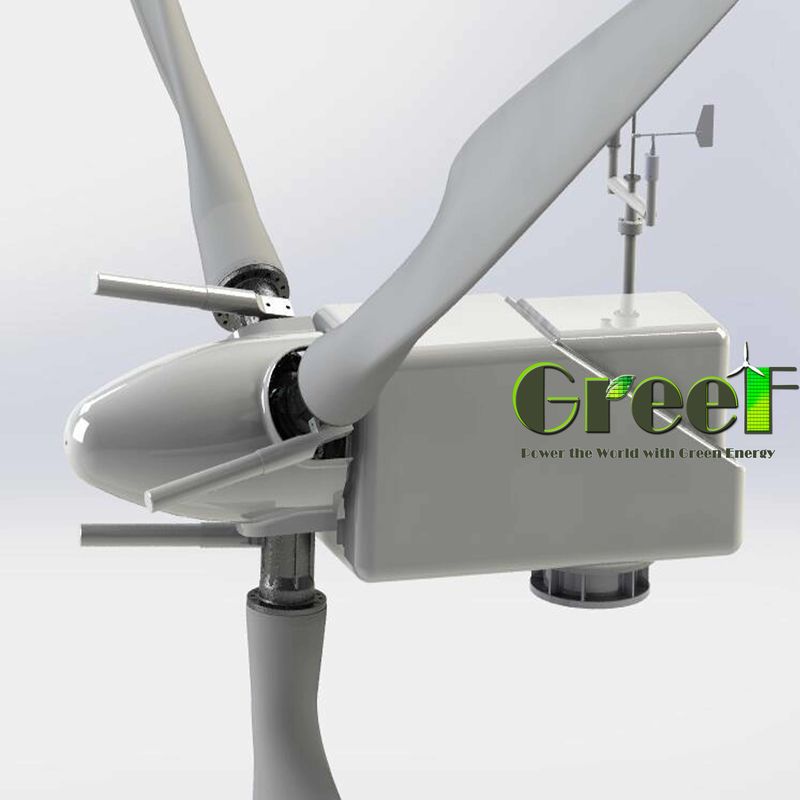

30kw Energy Electricity Horizontal Wind Turbine Pitch Control

30kw Energy Electricity Horizontal Wind Turbine Pitch Control

30kw Horizontal Wind Turbine

Pitch Control Horizontal Wind Turbine

30kw pitch angle wind turbine

Place of Origin:


Brand Name:




Model Number:


Contact Us
Request A Quote
Product Details
Rated Power:
Electricity Generation
3 Years
Rated Voltage:
12V / 24V / 48V
Generator Type:
3 Phase AC Permanent-magnet,1-3kw Vertical Axis Wind Turbine
Portection Grade:
IP 54
Payment & Shipping Terms
Minimum Order Quantity
Packaging Details
Inner Foam + Plywooden case
Delivery Time
Payment Terms
L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability
Product Description

30kw Energy Electricity Pitch Control Horizontal Wind Turbine


Horizontal Axis Wind Turbine Catalogue

Model: 30KW Horizontal axis wind turbine |Off-grid system |on-grid system| Folding tower


GREEF GH-30KW wind generator is the conversion of wind energy into mechanical energy first and electric energy afterwards. This equipment can fully make use of wind power to recharge a battery, and also can saved energy into ac source alternating current. Without the necessity of fuel, the GH-30KW wind generator is pollution free and far away from noise. The GH-30KW wind generator is generally applicable to the area which has good condition but is far away from the power grid, or the power grid is not normal. The GH-30KW generator can supply lighting, the television set, the searchlight, the communication equipment, the power tool and other household appliances.


Recommended for:

· Household,Garden,Farm,Urban ,Rooftop

· Telecom sites.

· Rural electrification programs. Island , sentry, island, sight lighting

· Automatic speed reduction protection

Technical specification

Model GH-30KW
Rated Power 30KW
Max Power 35KW
Start Wind Speed 2.5m/s(6.72mph)
Rated Wind Speed 11m/s(22.4mph)
Working Wind Speed 3-30m/s(8.96-56 mph)
Safety Wind Speed 60m/s(112mph)
Blades Rotor Diameter 13.1M(17.7ft)
Blades Material &Quantity FRP /3PCS
Top Weight 2800kg
Tower Height ≥20m(26.24ft.) Free folding tower
Generator Type Free stand tower
Rated voltage 450RPM
Rated rotating speed 95RPM
Speed regulation method Auto yawing+pitch-controlled
Wind answering method Up wind+yawing
Working Temperature -20℃~+50℃


30kW horizontal axis wind turbine for home use

Annual Energy Production

This data will have ±10% difference according to real condition.

30kW horizontal axis wind turbine for home use

Automatic Speed Reduction Protection


30kW horizontal axis wind turbine for home use

30kW horizontal axis wind turbine for home use


1. Q: How your permanent magnet generator work?

A: Our generator need to be drive by other energy, like wind power, water power, belt, etc, then it can generating power.


2. Q: Can your magnetic generator produce al power by itself?

A: No, please refer A1.

3. Q: What is the power of your generator?
A: We can manufacture from 100w to 5000kw.

4. Q: What is the rotate speed of your generator?
A: From 20rpm to 3000rpm.

5. Q: Can you manufacture customized product?
A: Yes, we can.

Please tell your detailed request (power, rpm, voltage, size, color) to our sales, we will made the generator according to your request.

6. Q: Can your company provide OEM service?
A: Yes, we can.


If you have other questions or requirements, please contact us directly!


30kW horizontal axis wind turbine for home use
