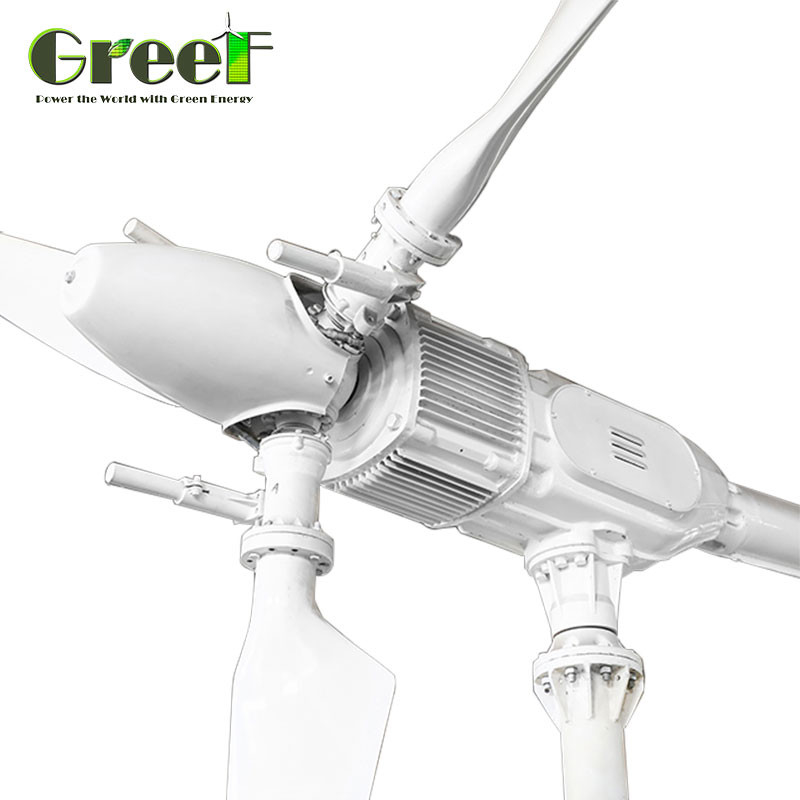

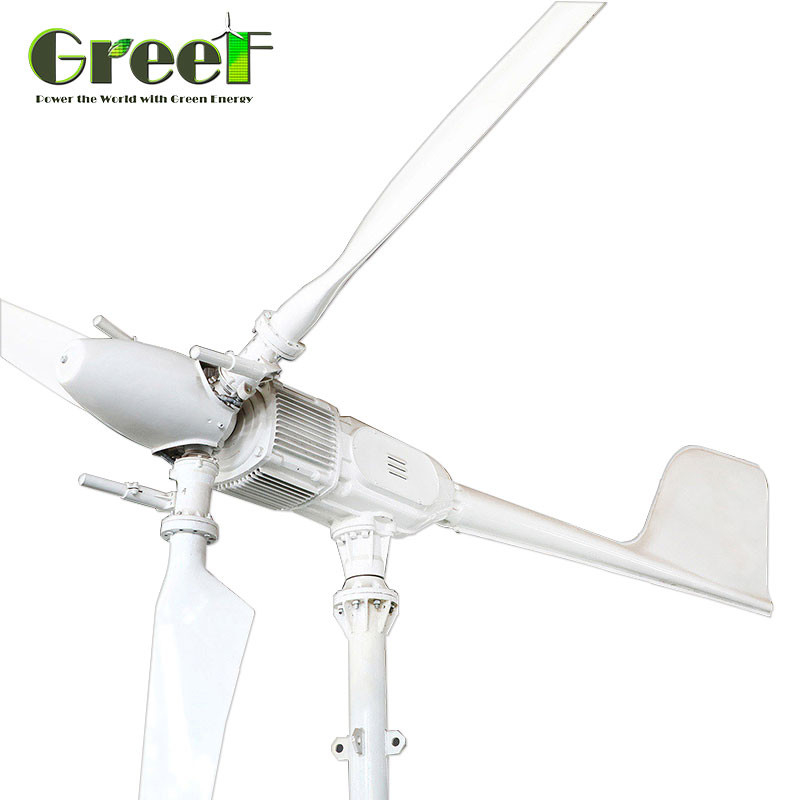

5kw Small Electric Pitch Regulated Wind Turbine Easy Install High Output

5kw Small Electric Pitch Regulated Wind Turbine Easy Install High Output

5kw Pitch Regulated Wind Turbine

Easy Install Pitch Regulated Wind Turbine

5kw variable pitch turbine

Place of Origin:

QINGDAO

Brand Name:

GREEF

Certification:

CE

Model Number:

AH-5KW

Contact Us
Request A Quote
Product Details
Rated Voltage:
12/24V,12V / 24V / 48V,400V 600V 800V 11KV 13.8KV
Rated Power:
300w-30kw
Application:
Electricity Generation,Wind Power System
Generator Type:
3 Phase AC Permanent-magnet,Three Phase AC Permanent Magnet Synchronous Generator,1-3kw Vertical Axis Wind Turbine
Color:
Multicolor
Type:
Wind Power Generator
Payment & Shipping Terms
Minimum Order Quantity
1set
Price
$299-12999
Packaging Details
Inner Foam + Plywooden case
Delivery Time
25DAYS
Payment Terms
L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability
25
Product Description

5kw Small High Output Pitch Control Wind Turbine

Why choose pitch control wind turbine?

Leading technology-intelligent control, strong system scalability

1. The world's best wind power control technology is combined with the self-developed variable pitch technology.

2. The hardware design uses international well-known brands, and the software uses redundant control strategies.

3. It can achieve good compatibility with various well-known brand converters and remote modules.

High security-continuous operation around the clock to achieve unattended operation

1. The speed of the wind wheel is controlled, and it runs continuously and stably under severe wind conditions.

2. More than a dozen redundant control strategies ensure the safety and stability of the system in all climates.

A lot of power generation-variable pitch control, high-efficiency output, power generation up to 30%
1. Above the rated wind speed, the pitch angle of the blades can be adjusted to achieve continuous full power output.
2. The working wind speed range is large (3-25m/s), and the effective running time is long.

5kw Small Electric Pitch Regulated Wind Turbine Easy Install High Output 0

Recommended for:

· Household,Garden,Farm,Urban ,Rooftop
· Telecom sites.
· Rural electrification programs. Island , sentry, island, sight lighting
· Automatic speed reduction protection

Technical specification

Model
AH-5KW
AH-10KW
AH-20KW
AH-30KW
Rotor diameter (m)
5.6
7.78
9.8
13.1
Blade material & Qty.
FRP*3
Rated power (kW)
5
10
20
30
Rated wind speed (m/s)
11
Rated rotating speed (r/min)
240
180
175
95
Generator type
3-phase PMG
Working wind speed (m/s)
3-30
Start-up wind speed(m/s)
2.5
Cut-in wind speed(m/s)
3
Survival wind speed (m/s)
60
Rated voltage (VDC)
400/240/custom made
400
450
Speed regulation method
Pitch-controlled
Pitch control + Active yawing +electromagnet brake
Auto yawing+pitch-controlled
Wind answering method
Up wind
Up wind+yawing
Stop method
Auto brake
Gale protection
Smart control+unattended
weight (kg)
400
550
1210
2800
Noise level (dB)
≤65
Tower height (m)
≥8
≥12
≥12
≥20
Tower type
Tilt-up tower
Free stand tower
Working temperature
-20℃~+50℃

Products Description

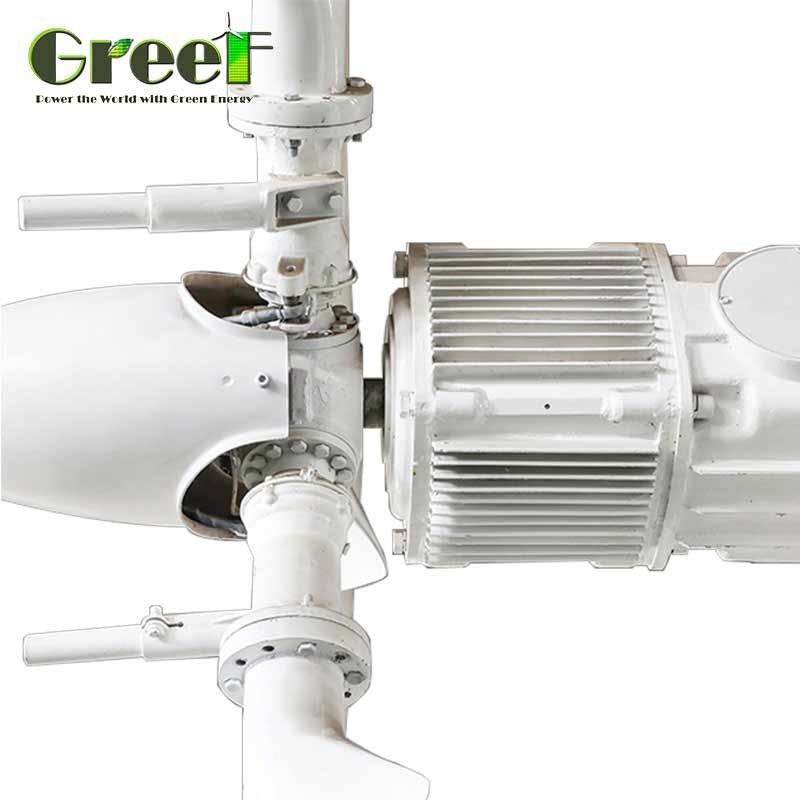

Using the world's leading mechanical centrifugal variable pitch technology, the average annual power generation is 30% more.
(1) Large initial blade angle (+9 ), excellent acceleration performance, start at low wind speed of 2.5m/s;
(2) Below the rated wind speed, the wind turbine outputs efficiently;
(3) Above the rated wind speed, adjust the pitch angle so that the rotor speed is maintained near the rated speed and the power output is stable.

5kw Small Electric Pitch Regulated Wind Turbine Easy Install High Output 1

Project case

On-grid Systems in Other Countries

The systems were also installed in countries, like India, the Phillipines, Ireland, Colombia,France, Brazil, Swiss and Hungary.

5kw Small Electric Pitch Regulated Wind Turbine Easy Install High Output 2
5kw Small Electric Pitch Regulated Wind Turbine Easy Install High Output 3
5kw Small Electric Pitch Regulated Wind Turbine Easy Install High Output 4
5kw Small Electric Pitch Regulated Wind Turbine Easy Install High Output 5
5kw Small Electric Pitch Regulated Wind Turbine Easy Install High Output 6

5kw Small Electric Pitch Regulated Wind Turbine Easy Install High Output 7

5kw Small Electric Pitch Regulated Wind Turbine Easy Install High Output 8

5kw Small Electric Pitch Regulated Wind Turbine Easy Install High Output 9
