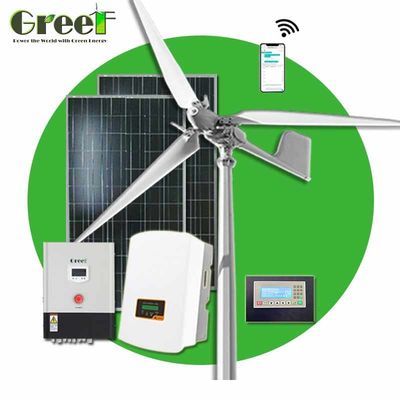

5000w Pitch Control Wind Turbine Low Start Speed High Output

5000w Pitch Control Wind Turbine Low Start Speed High Output

5000w Pitch Control Wind Turbine

Low Start Pitch Control Wind Turbine

5000w stall regulated wind turbine

Place of Origin:

QINGDAO

Brand Name:

GREEF

Certification:

CE

Model Number:

AH-5KW

Contact Us
Request A Quote
Product Details
Name:
Pitch Control Wind Turbine
Model Rotor Diameter(m):
5.6
Rated Wind Speed(m/s):
11
Blade Material & Qty.:
FRP*3
Rated Power(kW):
5
Rated Rotating Speed(r/min):
240
Payment & Shipping Terms
Minimum Order Quantity
1set
Price
$299-12999
Packaging Details
Inner Foam + Plywooden case
Delivery Time
25DAYS
Payment Terms
L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability
25
Product Description

5kw Rooftop High Efficiency Easy Installation Of Pitch Control Wind Turbine

Why choose AH-5KW wind turbine?

Leading technology-intelligent control, strong system scalability

1. The world's best wind power control technology is combined with the self-developed variable pitch technology.
2. The hardware design uses international well-known brands, and the software uses redundant control strategies.
3. It can achieve good compatibility with various well-known brand converters and remote modules.
High security-continuous operation around the clock to achieve unattended operation
1. The speed of the wind wheel is controlled, and it runs continuously and stably under severe wind conditions.
2. More than a dozen redundant control strategies ensure the safety and stability of the system in all climates.
A lot of power generation-variable pitch control, high-efficiency output, power generation up to 30%
1. Above the rated wind speed, the pitch angle of the blades can be adjusted to achieve continuous full power output.
2. The working wind speed range is large (3-25m/s), and the effective running time is long.
5000w Pitch Control Wind Turbine Low Start Speed High Output 0
Recommended for:
· Household,Garden,Farm,Urban ,Rooftop
· Telecom sites.
· Rural electrification programs. Island , sentry, island, sight lighting
· Automatic speed reduction protection
Technical specification
Model
AH-5KW
Rotor diameter(m)
5.6
Blade material & Qty.
FRP*3
Rated power(kW)
5
Rated wind speed(m/s)
11
Rated rotating speed(r/min)
240
Generator type
3-phase PMG
Working wind speed(m/s)
3-30
Start-up wind speed(m/s)
2.5
Survival wind speed(m/s)
60
Rated voltage(VDC)
400/240/custom made
Speed regulation method
Pitch-controlled
Wind answering method
Up wind
Stop method
Auto brake
Gale protection
Smart control+unattended
weight(kg)
400
Noise level(dB)
≤65
Tower height(m)
≥8
Tower model
Tilt-up tower
Working temperature
-20℃~+50℃



Products Description

5000w Pitch Control Wind Turbine Low Start Speed High Output 1
Using the world's leading mechanical centrifugal variable pitch technology, the average annual power generation is 30% more.
(1) Large initial blade angle (+9 ), excellent acceleration performance, start at low wind speed of 2.5m/s;
(2) Below the rated wind speed, the wind turbine outputs efficiently;
(3) Above the rated wind speed, adjust the pitch angle so that the rotor speed is maintained near the rated speed and the power output is stable.


Project case

On-grid Systems in Other Countries

The systems were also installed in countries, like India, the Phillipines, Ireland, Colombia,France, Brazil, Swiss and Hungary.

5000w Pitch Control Wind Turbine Low Start Speed High Output 2
5000w Pitch Control Wind Turbine Low Start Speed High Output 3
5000w Pitch Control Wind Turbine Low Start Speed High Output 4
5000w Pitch Control Wind Turbine Low Start Speed High Output 5
Systems5000w Pitch Control Wind Turbine Low Start Speed High Output 6
5000w Pitch Control Wind Turbine Low Start Speed High Output 7
5000w Pitch Control Wind Turbine Low Start Speed High Output 8
5000w Pitch Control Wind Turbine Low Start Speed High Output 9
5000w Pitch Control Wind Turbine Low Start Speed High Output 10
