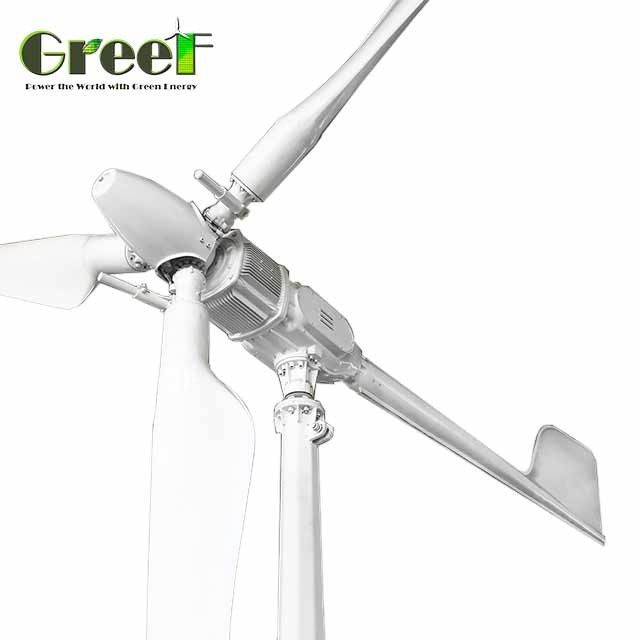

10kw High Efficiency Wind Turbine Generator For Home With CE Certificate

10kw High Efficiency Wind Turbine Generator For Home With CE Certificate
10kw High Efficiency Wind Turbine Generator For Home With CE Certificate 10kw High Efficiency Wind Turbine Generator For Home With CE Certificate 10kw High Efficiency Wind Turbine Generator For Home With CE Certificate 10kw High Efficiency Wind Turbine Generator For Home With CE Certificate

Large Image :  10kw High Efficiency Wind Turbine Generator For Home With CE Certificate

Product Details:
Place of Origin: QINGDAO
Brand Name: GREEF
Certification: CE
Model Number: AH-10KW
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $299-12999
Packaging Details: Inner Foam + Plywooden case
Delivery Time: 25DAYS
Payment Terms: L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 25
Detailed Product Description
Generator Type: 3-phase PMG Blade Material & Qty.: FRP*3
Rated Wind Speed (m/s): 11 Stop Method: Auto Brake
Start-up Wind Speed(m/s): 2.5 Working Wind Speed (m/s): 3-30
High Light:

10kw High Efficiency Wind Turbine Generator

,

CE Wind Turbine Generator

,

Household Pitch Control Wind Turbine

10kw Good Quality High Efficiency Wind Turbine Generator For Home Use With CE Certificate

Recommended for:

· Household,Garden,Farm,Urban ,Rooftop
· Telecom sites.
· Rural electrification programs. Island , sentry, island, sight lighting
· Automatic speed reduction protection

Technical specification



Model
AH-5KW
AH-10KW
AH-20KW
AH-30KW
Rotor diameter (m)
5.6
7.78
9.8
13.1
Blade material & Qty.
FRP*3
Rated power (kW)
5
10
20
30
Rated wind speed (m/s)
11
Rated rotating speed (r/min)
240
180
175
95
Generator type
3-phase PMG
Working wind speed (m/s)
3-30
Start-up wind speed(m/s)
2.5
Cut-in wind speed(m/s)
3
Survival wind speed (m/s)
60
Rated voltage (VDC)
400/240/custom made
400
450
Speed regulation method
Pitch-controlled
Pitch control + Active yawing +electromagnet brake
Auto yawing+pitch-controlled
Wind answering method
Up wind
Up wind+yawing
Stop method
Auto brake
Gale protection
Smart control+unattended
weight (kg)
400
550
1210
2800
Noise level (dB)
≤65
Tower height (m)
≥8
≥12
≥12
≥20
Tower type
Tilt-up tower
Free stand tower
Working temperature
-20℃~+50℃



Products Description
10kw High Efficiency Wind Turbine Generator For Home With CE Certificate 0
Using the world's leading mechanical centrifugal variable pitch technology, the average annual power generation is 30% more.
(1) Large initial blade angle (+9 ), excellent acceleration performance, start at low wind speed of 2.5m/s;
(2) Below the rated wind speed, the wind turbine outputs efficiently;
(3) Above the rated wind speed, adjust the pitch angle so that the rotor speed is maintained near the rated speed and the power output is stable.
10kw High Efficiency Wind Turbine Generator For Home With CE Certificate 1
10kw High Efficiency Wind Turbine Generator For Home With CE Certificate 2
10kw High Efficiency Wind Turbine Generator For Home With CE Certificate 3

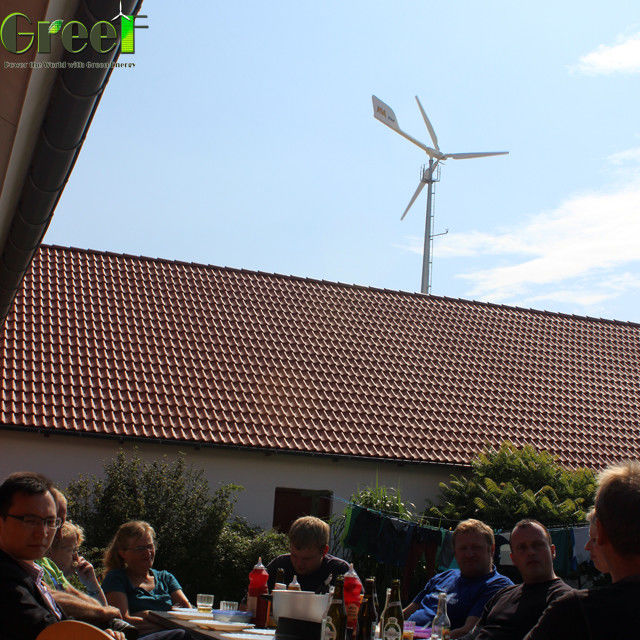

Project case

On-grid Systems in Other Countries

The systems were also installed in countries, like India, the Phillipines, Ireland, Colombia,France, Brazil, Swiss and Hungary.
10kw High Efficiency Wind Turbine Generator For Home With CE Certificate 4
10kw High Efficiency Wind Turbine Generator For Home With CE Certificate 5
10kw High Efficiency Wind Turbine Generator For Home With CE Certificate 6
10kw High Efficiency Wind Turbine Generator For Home With CE Certificate 7
10kw High Efficiency Wind Turbine Generator For Home With CE Certificate 8
10kw High Efficiency Wind Turbine Generator For Home With CE Certificate 9
10kw High Efficiency Wind Turbine Generator For Home With CE Certificate 10
10kw High Efficiency Wind Turbine Generator For Home With CE Certificate 11
10kw High Efficiency Wind Turbine Generator For Home With CE Certificate 12
Systems
10kw High Efficiency Wind Turbine Generator For Home With CE Certificate 13
10kw High Efficiency Wind Turbine Generator For Home With CE Certificate 14
Why Choose Us
We are global supplier which focus on Permanent Magnet generator, wind turbine , wind turbine blades, controller, invertor etc.
"GREEF" have its own engineer design team which is design products ourselves. Moreover, we have successfully obtained CE approvals and supports from our customers, which boost our business day by day!
Believe in us, we can accompany you forever.
10kw High Efficiency Wind Turbine Generator For Home With CE Certificate 15
10kw High Efficiency Wind Turbine Generator For Home With CE Certificate 16
10kw High Efficiency Wind Turbine Generator For Home With CE Certificate 17
10kw High Efficiency Wind Turbine Generator For Home With CE Certificate 18
10kw High Efficiency Wind Turbine Generator For Home With CE Certificate 19
10kw High Efficiency Wind Turbine Generator For Home With CE Certificate 20
