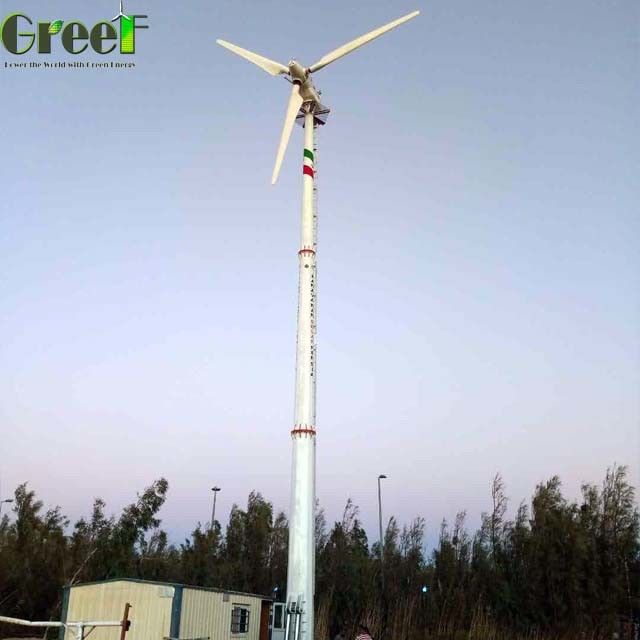

Windmill Mini Grid Tie Inverter Pitch Control Wind Turbine Generator 20kw For House

Windmill Mini Grid Tie Inverter Pitch Control Wind Turbine Generator 20kw For House
Windmill Mini Grid Tie Inverter Pitch Control Wind Turbine Generator 20kw For House Windmill Mini Grid Tie Inverter Pitch Control Wind Turbine Generator 20kw For House Windmill Mini Grid Tie Inverter Pitch Control Wind Turbine Generator 20kw For House Windmill Mini Grid Tie Inverter Pitch Control Wind Turbine Generator 20kw For House

Large Image :  Windmill Mini Grid Tie Inverter Pitch Control Wind Turbine Generator 20kw For House

Product Details:
Place of Origin: QINGDAO
Brand Name: GREEF
Certification: CE
Model Number: AH-20KW
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $299-12999
Packaging Details: Inner Foam + Plywooden case
Delivery Time: 25DAYS
Payment Terms: L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 25
Detailed Product Description
Rated Voltage: 12V / 24V / 48V Type: Wind Power Generator
Rated Power: 300w-30kw Application: Electricity Generation
Generator Type: 3 Phase AC Permanent-magnet,Three Phase AC Permanent Magnet Synchronous Generator,1-3kw Vertical Axis Wind Turbine
High Light:

Grid Tie Inverter Wind Turbine Generator

,

20kw Mini Wind Turbine Generator

20kw Windmill Low Rpm Mini Grid Tie Inverter Pitch Control Wind Turbine Generator For House Use
Why choose AH-20KW wind turbine?
Leading technology-intelligent control, strong system scalability
1. The world's best wind power control technology is combined with the self-developed variable pitch technology.
2. The hardware design uses international well-known brands, and the software uses redundant control strategies.
3. It can achieve good compatibility with various well-known brand converters and remote modules.
A lot of power generation-variable pitch control, high-efficiency output, power generation up to 30%
1. Above the rated wind speed, the pitch angle of the blades can be adjusted to achieve continuous full power output.
2. The working wind speed range is large (3-25m/s), and the effective running time is long.
Windmill Mini Grid Tie Inverter Pitch Control Wind Turbine Generator 20kw For House 0
Recommended for:
· Household,Garden,Farm,Urban ,Rooftop
· Telecom sites.
· Rural electrification programs. Island , sentry, island, sight lighting
· Automatic speed reduction protection
Technical specification
Model
AH-20KW
Wind rotor diameter (m)
9.8
Blade material and quantity
Fiber glass reinforced * 3
Rated power (w)
20,000
Rated wind speed (m/s)
11
Rated rotate speed (rpm)
175
Working wind speed (m/s)
3-25
Start up wind speed (m/s)
2.5
Survived wind speed (m/s)
59.5
Working voltage (v)
DC450V
Speed regulation method
Pitch control + Active yawing +electromagnet brake
Stop method
Pitch controlled brake +Active yawing
Generator style
Three phase, permanent magnet
Wind turbine weight (kg)
1210
Products Description
Windmill Mini Grid Tie Inverter Pitch Control Wind Turbine Generator 20kw For House 1
Using the world's leading mechanical centrifugal variable pitch technology, the average annual power generation is 30% more
(1) Large initial blade angle (+9 ), excellent acceleration performance, start at low wind speed of 2.5m/s;
(2) Below the rated wind speed, the wind turbine outputs efficiently;
(3) Above the rated wind speed, adjust the pitch angle so that the rotor speed is maintained near the rated speed and the power output is stable.
Project case

20kW In France

Windmill Mini Grid Tie Inverter Pitch Control Wind Turbine Generator 20kw For House 2
Windmill Mini Grid Tie Inverter Pitch Control Wind Turbine Generator 20kw For House 3

20kW In Kashgar

Windmill Mini Grid Tie Inverter Pitch Control Wind Turbine Generator 20kw For House 4
Windmill Mini Grid Tie Inverter Pitch Control Wind Turbine Generator 20kw For House 5



Systems
Windmill Mini Grid Tie Inverter Pitch Control Wind Turbine Generator 20kw For House 6
Windmill Mini Grid Tie Inverter Pitch Control Wind Turbine Generator 20kw For House 7
Windmill Mini Grid Tie Inverter Pitch Control Wind Turbine Generator 20kw For House 8
Windmill Mini Grid Tie Inverter Pitch Control Wind Turbine Generator 20kw For House 9
Why Choose Us
We are global supplier which focus on Permanent Magnet generator, wind turbine , wind turbine blades, controller, invertor etc.
"GREEF" have its own engineer design team which is design products ourselves. Moreover, we have successfully obtained CE approvals and supports from our customers, which boost our business day by day!
Believe in us, we can accompany you forever.
Windmill Mini Grid Tie Inverter Pitch Control Wind Turbine Generator 20kw For House 10
Windmill Mini Grid Tie Inverter Pitch Control Wind Turbine Generator 20kw For House 11
