Energy Electricity Solar Power System Pitch Control Wind Turbine 5kw

Name: Energy Electricity Solar Power System Pitch Control Wind Turbine 5kw
Brand: GREEF
SKU: AH-5KW
Price: 299 USD
Availability: InStock
Rating: 4.5 (154 reviews)

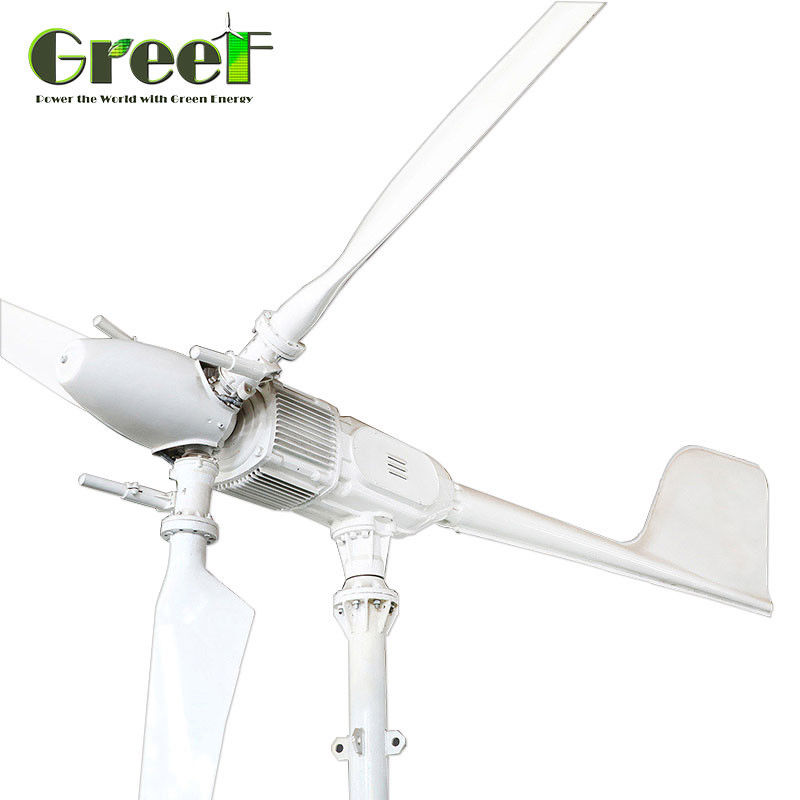

Large Image : Energy Electricity Solar Power System Pitch Control Wind Turbine 5kw

Product Details:

Place of Origin:	QINGDAO
Brand Name:	GREEF
Certification:	CE
Model Number:	AH-5KW

Payment & Shipping Terms:

Minimum Order Quantity:	1set
Price:	$299-12999
Packaging Details:	Inner Foam + Plywooden case
Delivery Time:	25DAYS
Payment Terms:	L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability:	25

Contact Now

Detailed Product Description

Name:	Pitch Control Wind Turbine	Rated Power(kW):	5
Model Rotor Diameter(m):	5.6	Rated Wind Speed(m/s):	11
Rated Rotating Speed(r/min):	240	Blade Material & Qty.:	FRP*3
High Light:	Solar Power Pitch Control Wind Turbine , PMG Pitch Control Wind Turbine 5kw , FRP Blade Pitch Regulated Wind Turbine

5kw Energy Electricity Solar Power System Pitch Control Wind Turbine

Why choose AH-5KW wind turbine?

Leading technology-intelligent control, strong system scalability

1. The world's best wind power control technology is combined with the self-developed variable pitch technology.
2. The hardware design uses international well-known brands, and the software uses redundant control strategies.
3. It can achieve good compatibility with various well-known brand converters and remote modules.
High security-continuous operation around the clock to achieve unattended operation
1. The speed of the wind wheel is controlled, and it runs continuously and stably under severe wind conditions.
2. More than a dozen redundant control strategies ensure the safety and stability of the system in all climates.
A lot of power generation-variable pitch control, high-efficiency output, power generation up to 30%
1. Above the rated wind speed, the pitch angle of the blades can be adjusted to achieve continuous full power output.
2. The working wind speed range is large (3-25m/s), and the effective running time is long.

Recommended for:

· Household,Garden,Farm,Urban ,Rooftop
· Telecom sites.
· Rural electrification programs. Island , sentry, island, sight lighting
· Automatic speed reduction protection

Technical specification

Model	AH-5KW
Rotor diameter(m)	5.6
Blade material & Qty.	FRP*3
Rated power(kW)	5
Rated wind speed(m/s)	11
Rated rotating speed(r/min)	240
Generator type	3-phase PMG
Working wind speed(m/s)	3-30
Start-up wind speed(m/s)	2.5
Survival wind speed(m/s)	60
Rated voltage(VDC)	400/240/custom made
Speed regulation method	Pitch-controlled
Wind answering method	Up wind
Stop method	Auto brake
Gale protection	Smart control+unattended
weight(kg)	400
Noise level(dB)	≤65
Tower height(m)	≥8
Tower model	Tilt-up tower
Working temperature	-20℃～+50℃

Products Description

Using the world's leading mechanical centrifugal variable pitch technology, the average annual power generation is 30% more.

(1) Large initial blade angle (+9 ), excellent acceleration performance, start at low wind speed of 2.5m/s;

(2) Below the rated wind speed, the wind turbine outputs efficiently;

(3) Above the rated wind speed, adjust the pitch angle so that the rotor speed is maintained near the rated speed and the power output is stable.
