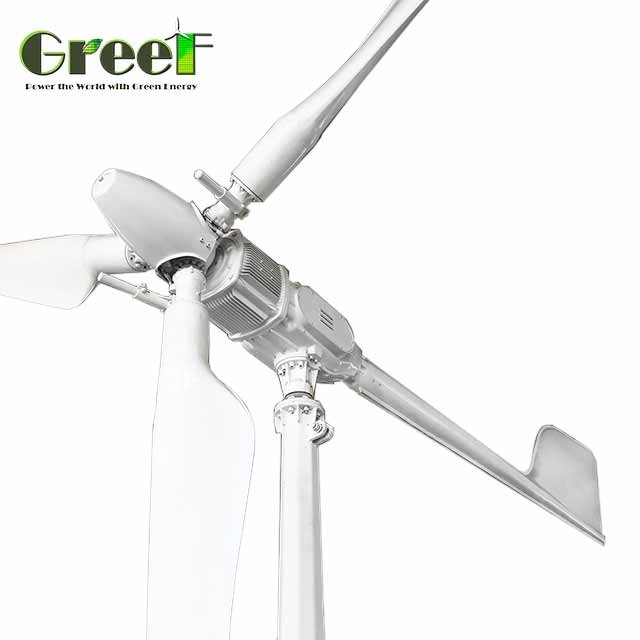

Name: Rooftop High Efficiency Pitch Control Wind Turbine Energy Generator 10kw
Brand: GREEF
SKU: AH-10KW
Price: 299 USD
Availability: InStock
Rating: 4.9 (146 reviews)

Home > products > Pitch Control Wind Turbine >

Rooftop High Efficiency Pitch Control Wind Turbine Energy Generator 10kw

10kw Rooftop Pitch Control Wind Turbine

FRP Pitch Control Wind Turbine

3phase PMG Pitch Wind Turbine

Place of Origin:

QINGDAO

Brand Name:

GREEF

Certification:

Model Number:

AH-10KW

Request A Quote

Rooftop High Efficiency Pitch Control Wind Turbine Energy Generator 10kw

Product Details

Warranty:

2 Years

Application:

Electricity Generation,Wind Power System

Color:

Multicolor

Generator Type:

3 Phase AC Permanent-magnet,Three Phase AC Permanent Magnet Synchronous Generator,1-3kw Vertical Axis Wind Turbine

Rated Power:

300w-30kw

Portection Grade:

IP 54

Payment & Shipping Terms

Minimum Order Quantity

1set

Price

$299-12999

Packaging Details

Inner Foam + Plywooden case

Delivery Time

25DAYS

Payment Terms

L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability

5KW 10KW 20KW 30KW Low Start Wind Speed Pitch Control Wind Turbine Horizontal Wind Generator

Get Best Price

Video

Low Speed Three Phase Permanent AC Magnet Generator Start Wind Speed 2.5m/S

Get Best Price

Video

5.6M Rotor Diameter Home Wind Turbine System For Customer Requirements

Get Best Price

Video

Up Wind Yawing Pitch Control Wind Turbine 11.5 M/S Rated Wind Speed 60m/S 133.8mph

Get Best Price

Contact Now

Product Description

10kw Rooftop High Efficiency Pitch Control Wind Turbine Energy Generator

Recommended for:

· Household,Garden,Farm,Urban ,Rooftop
· Telecom sites.
· Rural electrification programs. Island , sentry, island, sight lighting
· Automatic speed reduction protection

Technical specification

Model	AH-5KW	AH-10KW	AH-20KW	AH-30KW
Rotor diameter (m)	5.6	7.78	9.8	13.1
Blade material & Qty.	FRP*3
Rated power (kW)	5	10	20	30
Rated wind speed (m/s)	11
Rated rotating speed (r/min)	240	180	175	95
Generator type	3-phase PMG
Working wind speed (m/s)	3-30
Start-up wind speed(m/s)	2.5
Cut-in wind speed(m/s)	3
Survival wind speed (m/s)	60
Rated voltage (VDC)	400/240/custom made	400	450
Speed regulation method	Pitch-controlled		Pitch control + Active yawing +electromagnet brake	Auto yawing+pitch-controlled
Wind answering method	Up wind			Up wind+yawing
Stop method	Auto brake
Gale protection	Smart control+unattended
weight (kg)	400	550	1210	2800
Noise level (dB)	≤65
Tower height (m)	≥8	≥12	≥12	≥20
Tower type	Tilt-up tower		Free stand tower
Working temperature	-20℃～+50℃

Products Description

Using the world's leading mechanical centrifugal variable pitch technology, the average annual power generation is 30% more.

(1) Large initial blade angle (+9 ), excellent acceleration performance, start at low wind speed of 2.5m/s;

(2) Below the rated wind speed, the wind turbine outputs efficiently;

(3) Above the rated wind speed, adjust the pitch angle so that the rotor speed is maintained near the rated speed and the power output is stable.

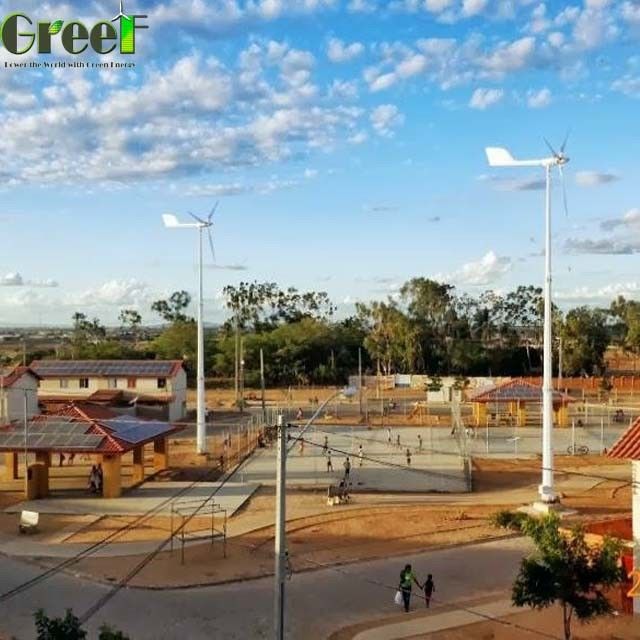

Project case

On-grid Systems in Other Countries

The systems were also installed in countries, like India, the Phillipines, Ireland, Colombia,France, Brazil, Swiss and Hungary.

Systems

Why Choose Us

We are global supplier which focus on Permanent Magnet generator, wind turbine , wind turbine blades, controller, invertor etc.
"GREEF" have its own engineer design team which is design products ourselves. Moreover, we have successfully obtained CE approvals and supports from our customers, which boost our business day by day!
Believe in us, we can accompany you forever.
