10KW On Grid Solar Hybrid Industry Pitch Wind Turbine For Home Battery Charge System

10KW On Grid Solar Hybrid Industry Pitch Wind Turbine For Home Battery Charge System
10KW On Grid Solar Hybrid Industry Pitch Wind Turbine For Home Battery Charge System

Large Image :  10KW On Grid Solar Hybrid Industry Pitch Wind Turbine For Home Battery Charge System

Product Details:
Place of Origin: QINGDAO
Brand Name: GREEF
Certification: CE
Model Number: AH-10KW
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $299-12999
Packaging Details: Inner Foam + Plywooden case
Delivery Time: 25DAYS
Payment Terms: L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 25
Contact Now
Detailed Product Description
Generator Type: 3 Phase AC Permanent-magnet,Three Phase AC Permanent Magnet Synchronous Generator,1-3kw Vertical Axis Wind Turbine Rated Power: 300w-30kw
Application: Electricity Generation,Wind Power System Warranty: 2 Years
Portection Grade: IP 54 Color: Multicolor
High Light:

Industry Pitch Wind Turbine

,

10KW On Grid Pitch Wind Turbine

10KW On Grid Solar Hybrid Good Quality Industry Pitch Control Wind Turbine For Home Use Battery Charge System

Recommended for:

· Household,Garden,Farm,Urban ,Rooftop
· Telecom sites.
· Rural electrification programs. Island , sentry, island, sight lighting
· Automatic speed reduction protection

Technical specification



Model
AH-5KW
AH-10KW
AH-20KW
AH-30KW
Rotor diameter (m)
5.6
7.78
9.8
13.1
Blade material & Qty.
FRP*3
Rated power (kW)
5
10
20
30
Rated wind speed (m/s)
11
Rated rotating speed (r/min)
240
180
175
95
Generator type
3-phase PMG
Working wind speed (m/s)
3-30
Start-up wind speed(m/s)
2.5
Cut-in wind speed(m/s)
3
Survival wind speed (m/s)
60
Rated voltage (VDC)
400/240/custom made
400
450
Speed regulation method
Pitch-controlled
Pitch control + Active yawing +electromagnet brake
Auto yawing+pitch-controlled
Wind answering method
Up wind
Up wind+yawing
Stop method
Auto brake
Gale protection
Smart control+unattended
weight (kg)
400
550
1210
2800
Noise level (dB)
≤65
Tower height (m)
≥8
≥12
≥12
≥20
Tower type
Tilt-up tower
Free stand tower
Working temperature
-20℃～+50℃



Products Description
10KW On Grid Solar Hybrid Industry Pitch Wind Turbine For Home Battery Charge System 0
Using the world's leading mechanical centrifugal variable pitch technology, the average annual power generation is 30% more.
(1) Large initial blade angle (+9 ), excellent acceleration performance, start at low wind speed of 2.5m/s;
(2) Below the rated wind speed, the wind turbine outputs efficiently;
(3) Above the rated wind speed, adjust the pitch angle so that the rotor speed is maintained near the rated speed and the power output is stable.
10KW On Grid Solar Hybrid Industry Pitch Wind Turbine For Home Battery Charge System 1
10KW On Grid Solar Hybrid Industry Pitch Wind Turbine For Home Battery Charge System 2
10KW On Grid Solar Hybrid Industry Pitch Wind Turbine For Home Battery Charge System 3

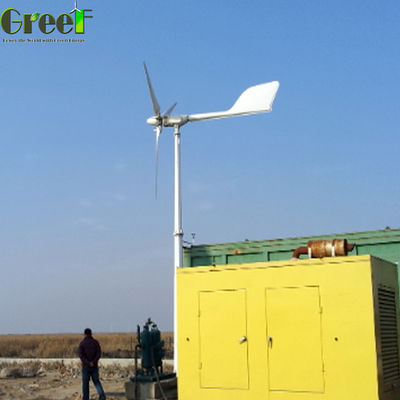

Project case

On-grid Systems in Other Countries

The systems were also installed in countries, like India, the Phillipines, Ireland, Colombia,France, Brazil, Swiss and Hungary.
10KW On Grid Solar Hybrid Industry Pitch Wind Turbine For Home Battery Charge System 4
10KW On Grid Solar Hybrid Industry Pitch Wind Turbine For Home Battery Charge System 5
10KW On Grid Solar Hybrid Industry Pitch Wind Turbine For Home Battery Charge System 6
10KW On Grid Solar Hybrid Industry Pitch Wind Turbine For Home Battery Charge System 7
10KW On Grid Solar Hybrid Industry Pitch Wind Turbine For Home Battery Charge System 8
10KW On Grid Solar Hybrid Industry Pitch Wind Turbine For Home Battery Charge System 9
10KW On Grid Solar Hybrid Industry Pitch Wind Turbine For Home Battery Charge System 10
10KW On Grid Solar Hybrid Industry Pitch Wind Turbine For Home Battery Charge System 11
10KW On Grid Solar Hybrid Industry Pitch Wind Turbine For Home Battery Charge System 12
Systems
10KW On Grid Solar Hybrid Industry Pitch Wind Turbine For Home Battery Charge System 13
10KW On Grid Solar Hybrid Industry Pitch Wind Turbine For Home Battery Charge System 14
Why Choose Us
We are global supplier which focus on Permanent Magnet generator, wind turbine , wind turbine blades, controller, invertor etc.
"GREEF" have its own engineer design team which is design products ourselves. Moreover, we have successfully obtained CE approvals and supports from our customers, which boost our business day by day!
Believe in us, we can accompany you forever.
10KW On Grid Solar Hybrid Industry Pitch Wind Turbine For Home Battery Charge System 15
10KW On Grid Solar Hybrid Industry Pitch Wind Turbine For Home Battery Charge System 16
10KW On Grid Solar Hybrid Industry Pitch Wind Turbine For Home Battery Charge System 17
10KW On Grid Solar Hybrid Industry Pitch Wind Turbine For Home Battery Charge System 18
10KW On Grid Solar Hybrid Industry Pitch Wind Turbine For Home Battery Charge System 19
10KW On Grid Solar Hybrid Industry Pitch Wind Turbine For Home Battery Charge System 20
