High Windmill Energy Solar Hybrid Pitch Control Wind Turbine 5KW With Off Grid

High Windmill Energy Solar Hybrid Pitch Control Wind Turbine 5KW With Off Grid
High Windmill Energy Solar Hybrid Pitch Control Wind Turbine 5KW With Off Grid High Windmill Energy Solar Hybrid Pitch Control Wind Turbine 5KW With Off Grid High Windmill Energy Solar Hybrid Pitch Control Wind Turbine 5KW With Off Grid High Windmill Energy Solar Hybrid Pitch Control Wind Turbine 5KW With Off Grid

Large Image :  High Windmill Energy Solar Hybrid Pitch Control Wind Turbine 5KW With Off Grid

Product Details:
Place of Origin: QINGDAO
Brand Name: GREEF
Certification: CE
Model Number: AH-5KW
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $299-12999
Packaging Details: Inner Foam + Plywooden case
Delivery Time: 25DAYS
Payment Terms: L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 25
Detailed Product Description
Blade Material & Qty.: FRP*3 Generator Type: 3-phase PMG
Rated Wind Speed(m/s): 11 Working Wind Speed(m/s): 3-30
Rated Rotating Speed(r/min): 240 Rotor Diameter(m): 5.6
High Light:

5KW Off Grid Pitch Wind Turbine

,

3 FRP Pitch Wind Turbine

5KW Low Speed Start Up High Good Quality Windmill Energy Solar Hybrid Pitch Control Wind Power Generators With Off Grid

Model: 5KW variable wind turbine |Off-grid system | Folding tower

Leading technology-intelligent control, strong system scalability

1. The world's best wind power control technology is combined with the self-developed variable pitch technology.
2. The hardware design uses international well-known brands, and the software uses redundant control strategies.
3. It can achieve good compatibility with various well-known brand converters and remote modules.
High security-continuous operation around the clock to achieve unattended operation
1. The speed of the wind wheel is controlled, and it runs continuously and stably under severe wind conditions.
2. More than a dozen redundant control strategies ensure the safety and stability of the system in all climates.
A lot of power generation-variable pitch control, high-efficiency output, power generation up to 30%
1. Above the rated wind speed, the pitch angle of the blades can be adjusted to achieve continuous full power output.
2. The working wind speed range is large (3-25m/s), and the effective running time is long.

High Windmill Energy Solar Hybrid Pitch Control Wind Turbine 5KW With Off Grid 0
Recommended for
· Household,Garden,Farm,Urban ,Rooftop
· Telecom sites.
· Rural electrification programs. Island , sentry, island, sight lighting
· Automatic speed reduction protection
Technical specification
Model
AH-5KW
Rotor diameter(m)
5.6
Blade material & Qty.
FRP*3
Rated power(kW)
5
Rated wind speed(m/s)
11
Rated rotating speed(r/min)
240
Generator type
3-phase PMG
Working wind speed(m/s)
3-30
Start-up wind speed(m/s)
2.5
Survival wind speed(m/s)
60
Rated voltage(VDC)
400/240/custom made
Speed regulation method
Pitch-controlled
Wind answering method
Up wind
Stop method
Auto brake
Gale protection
Smart control+unattended
weight(kg)
400
Noise level(dB)
≤65
Tower height(m)
≥8
Tower model
Tilt-up tower
Working temperature
-20℃~+50℃

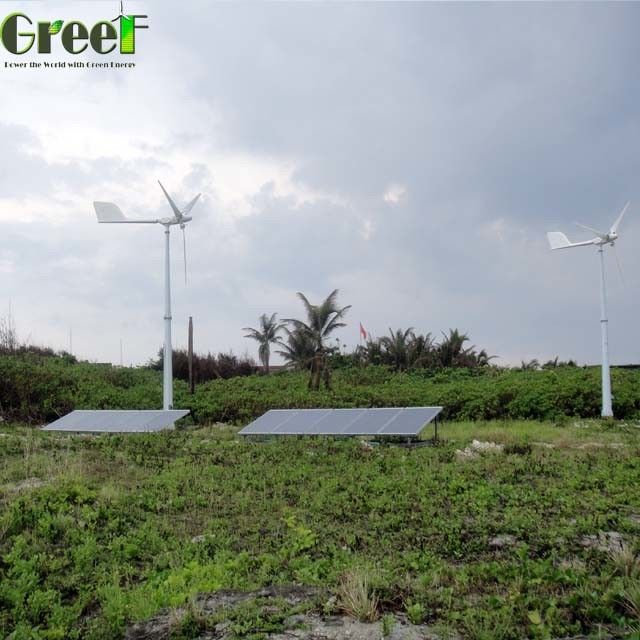

Project case

25kW Wind-solar-diesel Complementary Power Supply Project at Barracks of Garrison on Yongxing Island of Paracel Islands


High Windmill Energy Solar Hybrid Pitch Control Wind Turbine 5KW With Off Grid 1
High Windmill Energy Solar Hybrid Pitch Control Wind Turbine 5KW With Off Grid 2

New Energy Power Supply System at Communication Base Stations in Danish


High Windmill Energy Solar Hybrid Pitch Control Wind Turbine 5KW With Off Grid 3
High Windmill Energy Solar Hybrid Pitch Control Wind Turbine 5KW With Off Grid 4

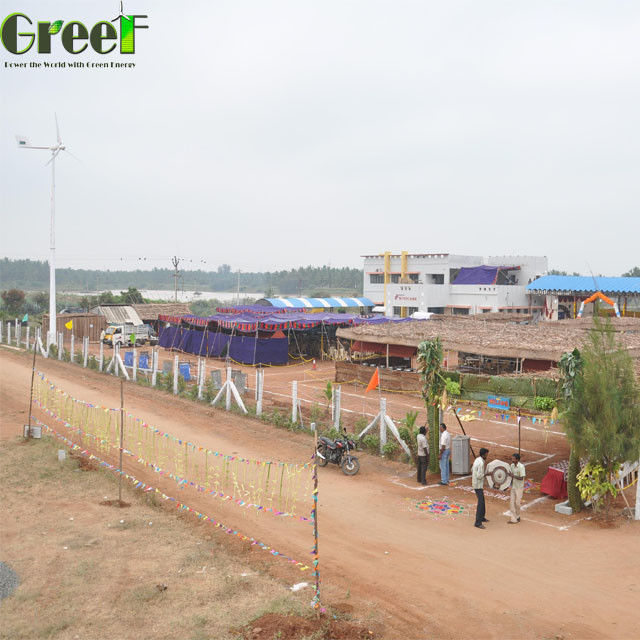

On-grid Systems in Other Countries

The systems were also installed in countries, like India, the Phillipines, Ireland, Colombia,France, Brazil, Swiss and Hungary.
High Windmill Energy Solar Hybrid Pitch Control Wind Turbine 5KW With Off Grid 5
High Windmill Energy Solar Hybrid Pitch Control Wind Turbine 5KW With Off Grid 6
High Windmill Energy Solar Hybrid Pitch Control Wind Turbine 5KW With Off Grid 7
Systems
High Windmill Energy Solar Hybrid Pitch Control Wind Turbine 5KW With Off Grid 8
High Windmill Energy Solar Hybrid Pitch Control Wind Turbine 5KW With Off Grid 9
High Windmill Energy Solar Hybrid Pitch Control Wind Turbine 5KW With Off Grid 10
High Windmill Energy Solar Hybrid Pitch Control Wind Turbine 5KW With Off Grid 11
High Windmill Energy Solar Hybrid Pitch Control Wind Turbine 5KW With Off Grid 12
High Windmill Energy Solar Hybrid Pitch Control Wind Turbine 5KW With Off Grid 13
