High Output Solar Hybrid Pitch Control Wind Turbine Generator 5KW For Home

High Output Solar Hybrid Pitch Control Wind Turbine Generator 5KW For Home

Pitch Wind Turbine Generator 5KW

FRP Pitch Wind Turbine Generator

240r/min Pitch Wind Turbine

Place of Origin:

QINGDAO

Brand Name:

GREEF

Certification:

CE

Model Number:

AH-5KW

Contact Us
Request A Quote
Product Details
Rated Voltage:
12/24V,12V / 24V / 48V,400V 600V 800V 11KV 13.8KV
Generator Type:
3-phase PMG
Blade Material & Qty.:
FRP*3
Rated Wind Speed(m/s):
11
Working Wind Speed(m/s):
3-30
Rated Rotating Speed(r/min):
240
Payment & Shipping Terms
Minimum Order Quantity
1set
Price
$299-12999
Packaging Details
Inner Foam + Plywooden case
Delivery Time
25DAYS
Payment Terms
L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability
25
Product Description

5KW High Output Energy Electricity Solar Hybrid Pitch Control Wind Turbine Generator Wind Mill Fan For Home Use

Model: 5KW variable wind turbine |Off-grid system | Folding tower

Leading technology-intelligent control, strong system scalability

1. The world's best wind power control technology is combined with the self-developed variable pitch technology.
2. The hardware design uses international well-known brands, and the software uses redundant control strategies.
3. It can achieve good compatibility with various well-known brand converters and remote modules.
High security-continuous operation around the clock to achieve unattended operation
1. The speed of the wind wheel is controlled, and it runs continuously and stably under severe wind conditions.
2. More than a dozen redundant control strategies ensure the safety and stability of the system in all climates.
A lot of power generation-variable pitch control, high-efficiency output, power generation up to 30%
1. Above the rated wind speed, the pitch angle of the blades can be adjusted to achieve continuous full power output.
2. The working wind speed range is large (3-25m/s), and the effective running time is long.

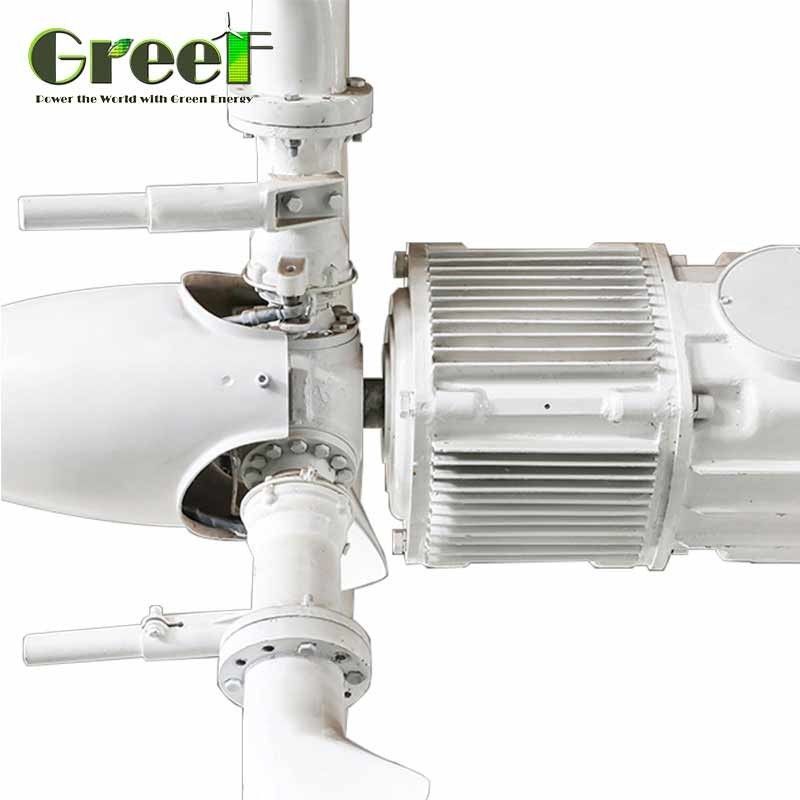

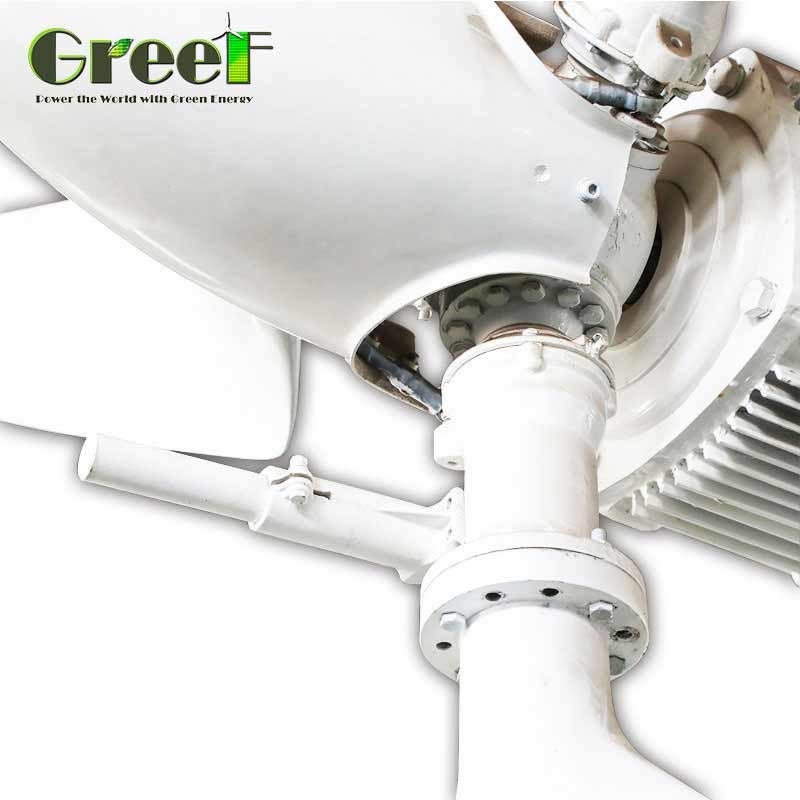

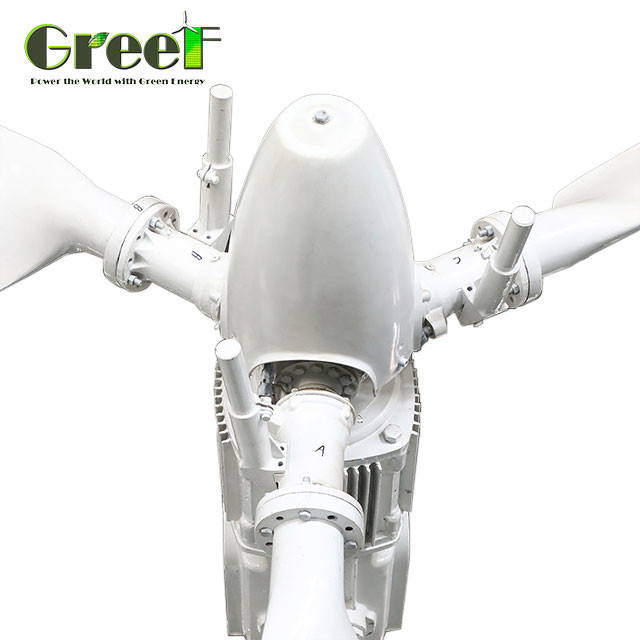

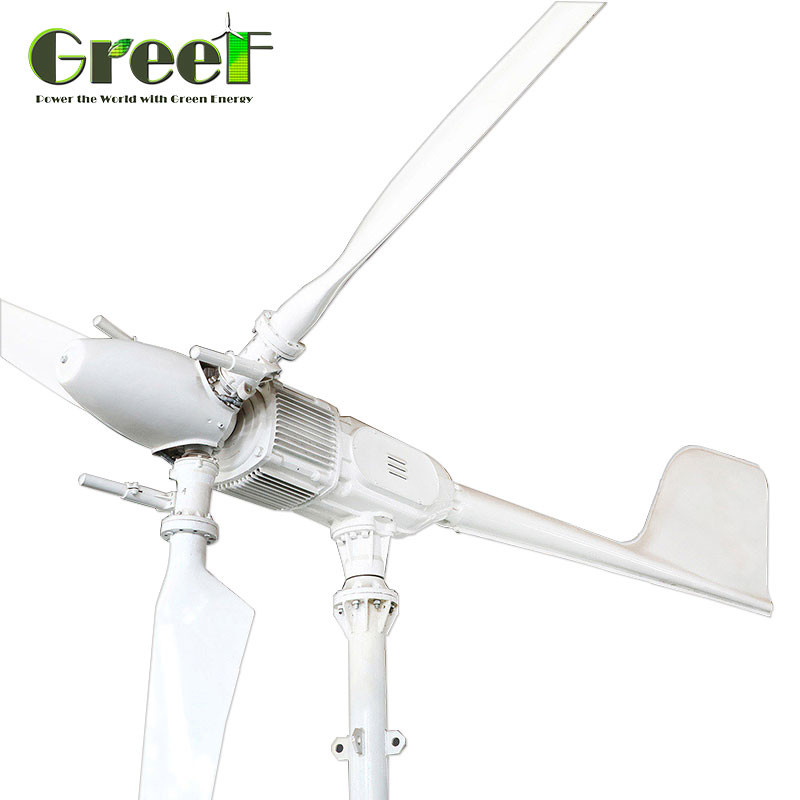

High Output Solar Hybrid Pitch Control Wind Turbine Generator 5KW For Home 0
Recommended for
· Household,Garden,Farm,Urban ,Rooftop
· Telecom sites.
· Rural electrification programs. Island , sentry, island, sight lighting
· Automatic speed reduction protection
Technical specification
Model
AH-5KW
Rotor diameter(m)
5.6
Blade material & Qty.
FRP*3
Rated power(kW)
5
Rated wind speed(m/s)
11
Rated rotating speed(r/min)
240
Generator type
3-phase PMG
Working wind speed(m/s)
3-30
Start-up wind speed(m/s)
2.5
Survival wind speed(m/s)
60
Rated voltage(VDC)
400/240/custom made
Speed regulation method
Pitch-controlled
Wind answering method
Up wind
Stop method
Auto brake
Gale protection
Smart control+unattended
weight(kg)
400
Noise level(dB)
≤65
Tower height(m)
≥8
Tower model
Tilt-up tower
Working temperature
-20℃~+50℃
Project case

25kW Wind-solar-diesel Complementary Power Supply Project at Barracks of Garrison on Yongxing Island of Paracel Islands


High Output Solar Hybrid Pitch Control Wind Turbine Generator 5KW For Home 1
High Output Solar Hybrid Pitch Control Wind Turbine Generator 5KW For Home 2

New Energy Power Supply System at Communication Base Stations in Danish


High Output Solar Hybrid Pitch Control Wind Turbine Generator 5KW For Home 3
High Output Solar Hybrid Pitch Control Wind Turbine Generator 5KW For Home 4

On-grid Systems in Other Countries

The systems were also installed in countries, like India, the Phillipines, Ireland, Colombia,France, Brazil, Swiss and Hungary.
High Output Solar Hybrid Pitch Control Wind Turbine Generator 5KW For Home 5
High Output Solar Hybrid Pitch Control Wind Turbine Generator 5KW For Home 6
High Output Solar Hybrid Pitch Control Wind Turbine Generator 5KW For Home 7
Systems
High Output Solar Hybrid Pitch Control Wind Turbine Generator 5KW For Home 8
High Output Solar Hybrid Pitch Control Wind Turbine Generator 5KW For Home 9
High Output Solar Hybrid Pitch Control Wind Turbine Generator 5KW For Home 10
High Output Solar Hybrid Pitch Control Wind Turbine Generator 5KW For Home 11
High Output Solar Hybrid Pitch Control Wind Turbine Generator 5KW For Home 12
High Output Solar Hybrid Pitch Control Wind Turbine Generator 5KW For Home 13
