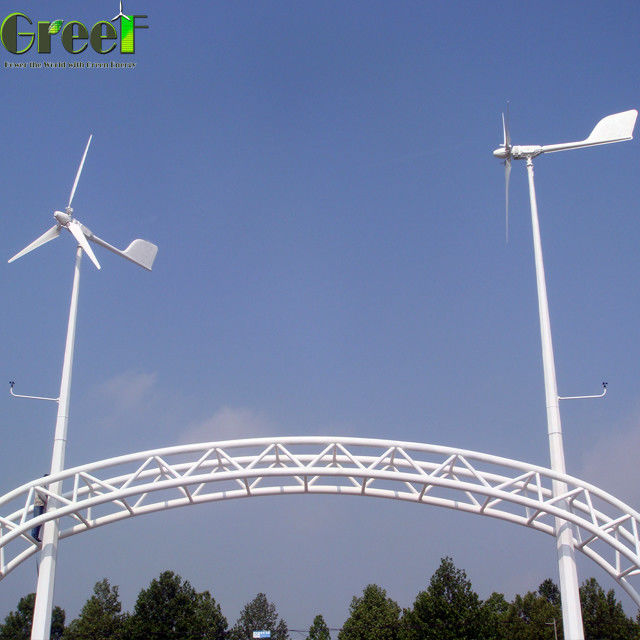

3 Phase Solar Hybrid Pitch Control Wind Turbine Inverter System 10KW

3 Phase Solar Hybrid Pitch Control Wind Turbine Inverter System 10KW
3 Phase Solar Hybrid Pitch Control Wind Turbine Inverter System 10KW

Large Image :  3 Phase Solar Hybrid Pitch Control Wind Turbine Inverter System 10KW

Product Details:
Place of Origin: QINGDAO
Brand Name: GREEF
Certification: CE
Model Number: AH-10KW
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: $299-12999
Packaging Details: Inner Foam + Plywooden case
Delivery Time: 25DAYS
Payment Terms: L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 25
Contact Now
Detailed Product Description
Generator Type: 3 Phase AC Permanent-magnet,Three Phase AC Permanent Magnet Synchronous Generator,1-3kw Vertical Axis Wind Turbine Rated Power: 300w-30kw
Portection Grade: IP 54 Application: Electricity Generation,Wind Power System
Color: Multicolor Warranty: 2 Years
High Light:

Hybrid Pitch Wind Turbine 10KW

,

Pitch Wind Turbine Inverter System

,

3Phase Solar Hybrid Wind Turbine

10KW Low Speed 3 Phase Energy Electricity Solar Hybrid Pitch Control Wind Turbine Inverter System

Recommended for:

· Household,Garden,Farm,Urban ,Rooftop
· Telecom sites.
· Rural electrification programs. Island , sentry, island, sight lighting
· Automatic speed reduction protection

Technical specification



Model
AH-5KW
AH-10KW
AH-20KW
AH-30KW
Rotor diameter (m)
5.6
7.78
9.8
13.1
Blade material & Qty.
FRP*3
Rated power (kW)
5
10
20
30
Rated wind speed (m/s)
11
Rated rotating speed (r/min)
240
180
175
95
Generator type
3-phase PMG
Working wind speed (m/s)
3-30
Start-up wind speed(m/s)
2.5
Cut-in wind speed(m/s)
3
Survival wind speed (m/s)
60
Rated voltage (VDC)
400/240/custom made
400
450
Speed regulation method
Pitch-controlled
Pitch control + Active yawing +electromagnet brake
Auto yawing+pitch-controlled
Wind answering method
Up wind
Up wind+yawing
Stop method
Auto brake
Gale protection
Smart control+unattended
weight (kg)
400
550
1210
2800
Noise level (dB)
≤65
Tower height (m)
≥8
≥12
≥12
≥20
Tower type
Tilt-up tower
Free stand tower
Working temperature
-20℃～+50℃



Products Description
3 Phase Solar Hybrid Pitch Control Wind Turbine Inverter System 10KW 0
Using the world's leading mechanical centrifugal variable pitch technology, the average annual power generation is 30% more.
(1) Large initial blade angle (+9 ), excellent acceleration performance, start at low wind speed of 2.5m/s;
(2) Below the rated wind speed, the wind turbine outputs efficiently;
(3) Above the rated wind speed, adjust the pitch angle so that the rotor speed is maintained near the rated speed and the power output is stable.
3 Phase Solar Hybrid Pitch Control Wind Turbine Inverter System 10KW 1
3 Phase Solar Hybrid Pitch Control Wind Turbine Inverter System 10KW 2
3 Phase Solar Hybrid Pitch Control Wind Turbine Inverter System 10KW 3
Project case

On-grid Systems in Other Countries

The systems were also installed in countries, like India, the Phillipines, Ireland, Colombia,France, Brazil, Swiss and Hungary.
3 Phase Solar Hybrid Pitch Control Wind Turbine Inverter System 10KW 4
3 Phase Solar Hybrid Pitch Control Wind Turbine Inverter System 10KW 5
3 Phase Solar Hybrid Pitch Control Wind Turbine Inverter System 10KW 6
3 Phase Solar Hybrid Pitch Control Wind Turbine Inverter System 10KW 7
3 Phase Solar Hybrid Pitch Control Wind Turbine Inverter System 10KW 8
3 Phase Solar Hybrid Pitch Control Wind Turbine Inverter System 10KW 9
3 Phase Solar Hybrid Pitch Control Wind Turbine Inverter System 10KW 10
3 Phase Solar Hybrid Pitch Control Wind Turbine Inverter System 10KW 11
3 Phase Solar Hybrid Pitch Control Wind Turbine Inverter System 10KW 12
Systems
3 Phase Solar Hybrid Pitch Control Wind Turbine Inverter System 10KW 13
3 Phase Solar Hybrid Pitch Control Wind Turbine Inverter System 10KW 14
Why Choose Us
We are global supplier which focus on Permanent Magnet generator, wind turbine , wind turbine blades, controller, invertor etc.
"GREEF" have its own engineer design team which is design products ourselves. Moreover, we have successfully obtained CE approvals and supports from our customers, which boost our business day by day!
Believe in us, we can accompany you forever.
3 Phase Solar Hybrid Pitch Control Wind Turbine Inverter System 10KW 15
3 Phase Solar Hybrid Pitch Control Wind Turbine Inverter System 10KW 16
3 Phase Solar Hybrid Pitch Control Wind Turbine Inverter System 10KW 17
3 Phase Solar Hybrid Pitch Control Wind Turbine Inverter System 10KW 18
3 Phase Solar Hybrid Pitch Control Wind Turbine Inverter System 10KW 19
3 Phase Solar Hybrid Pitch Control Wind Turbine Inverter System 10KW 20
