|Output Voltage (V):||48-240V||Inverter:||Solar Charge Inverter/ Hybrid Inverter|
|Controller Type:||MPPT, PWM||Battery Type:||Lithium Ion, Gel Battery|
|Load Power (W):||5kW, 10KW||Mounting Type:||Ground Mounting|
|Output Frequency:||50Hz/60Hz||Solar Panel Type:||Monocrystalline Silicon|
|Battery Set Voltage:||48V|
10kw 5kw solar panels off grid system
Advantages of Off-Grid Solar Systems
1. You become completely independent from external energy supplies
2. You can combine different energy sources such as PV, wind energy and hydropower
3.You can expand or change your system on a modular basis at any time

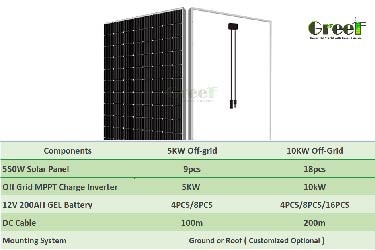

|Components||5KW Off-grid||10KW Off-grid|
|550W Solar Panel||9pcs||18pcs|
|Off Grid MPPT Charge Inverter||5KW||10KW|
|12V 200AH GEL Battery||4PCS/8PCS||4PCS/8PCS/16PCS|
|Mounting System||Ground or Roof ( Customized Optional )||Ground or Roof ( Customized Optional )|

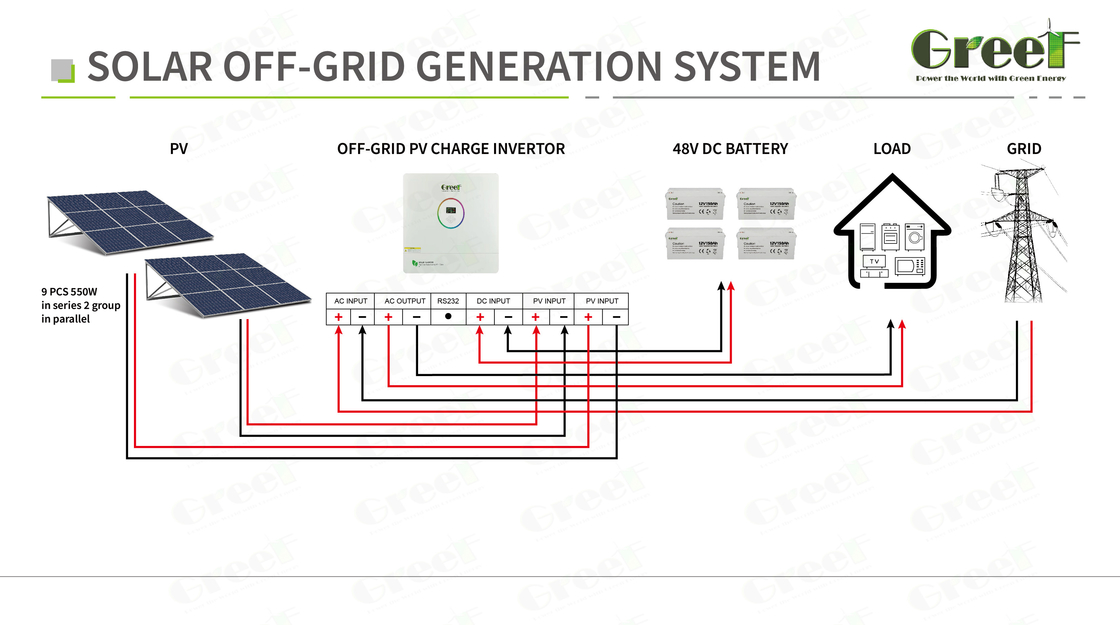

The solar power system takes solar energy as priority, and then battery. Our solar power system is designed with bypass function, it means when the battery electricity runs out, it will switch on city power supply automactically. This designmakes sure supplying power to household machines continously.

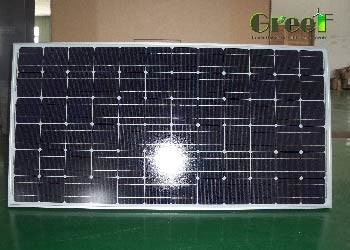

The role of solar panels is to convert solar radiation energy directly into direct current for use by the load or for storage in a battery for backup. Generally, according to the user's needs, a number of solar panels are connected in a certain way to form a solar cell array, and then with the appropriate bracket and junction box composition.
The role of the inverter is to reverse the low-voltage DC power supplied by the solar arrays and batteries into AC power for the AC load.
The battery bank is used to store the DC power generated by the solar array for use by the load. In a photovoltaic system, the battery is in a floating charge/discharge state. In summer, when there is a lot of sunlight, the battery is charged in addition to the load power. In winter, when there is little sunlight, this stored electricity is gradually released. During the day, the solar cell array charges the battery, while the array also supplies the load, and at night the load is fully supplied by the battery.
An off-grid solar system (off-the-grid, standalone) is the obvious alternative to one that is grid-tied. For homeowners who cant always be access to the grid, off-grid solar systems are usually out of question.
