PROFESSIONAL OFF GRID SOLAR SYSTEM MPPT CHARGE RATED POWER 5KW MOUNTING SYSTEM

PROFESSIONAL OFF GRID SOLAR SYSTEM MPPT CHARGE RATED POWER 5KW MOUNTING SYSTEM

Place of Origin:

CHINA

Brand Name:

GreeF

Certification:

CE

Model Number:

10kw 5kw solar panels off grid system

Contact Us
Request A Quote
Product Details
Load Power (W):
5kW, 10KW
Battery Set Voltage:
48V
Controller Type:
MPPT, PWM
Solar Panel Type:
Monocrystalline Silicon
Work Time (h):
24 Hours
Mounting Type:
Ground Mounting
Battery Type:
Lithium Ion, Gel Battery
Warranty:
3years
Payment & Shipping Terms
Minimum Order Quantity
1 SET
Price
$3,299.00 - $4,999.00
Packaging Details
Foam + Plywooden Case
Delivery Time
15-30 Working Days
Payment Terms
L/C, T/T, Western Union
Supply Ability
400 Set/Sets per Month
Product Description



10kw 5kw solar panels off grid system



Video description




PROFESSIONAL OFF GRID SOLAR SYSTEM MPPT CHARGE RATED POWER 5KW MOUNTING SYSTEM 0




Since the system can be customized, the price will be different depending on the equipment, if you need specific parameters, please contact us directly.



Product Introduction


PROFESSIONAL OFF GRID SOLAR SYSTEM MPPT CHARGE RATED POWER 5KW MOUNTING SYSTEM 1



Advantages of Off-Grid Solar Systems


1. You become completely independent from external energy supplies

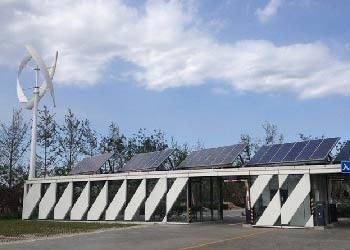

2. You can combine different energy sources such as PV, wind energy and hydropower

3.You can expand or change your system on a modular basis at any time





Technical specification


PROFESSIONAL OFF GRID SOLAR SYSTEM MPPT CHARGE RATED POWER 5KW MOUNTING SYSTEM 2

Components 5KW Off-grid 10KW Off-grid
550W Solar Panel 9pcs 18pcs
Off Grid MPPT Charge Inverter 5KW 10KW
12V 200AH GEL Battery 4PCS/8PCS 4PCS/8PCS/16PCS
DC Cable 100m 200m
Mounting System Ground or Roof ( Customized Optional ) Ground or Roof ( Customized Optional )



The solar power system takes solar energy as priority, and then battery. Our solar power system is designed with bypass function, it means when the battery electricity runs out, it will switch on city power supply automactically. This designmakes sure supplying power to household machines continously.



Product Show


PROFESSIONAL OFF GRID SOLAR SYSTEM MPPT CHARGE RATED POWER 5KW MOUNTING SYSTEM 3

PROFESSIONAL OFF GRID SOLAR SYSTEM MPPT CHARGE RATED POWER 5KW MOUNTING SYSTEM 4

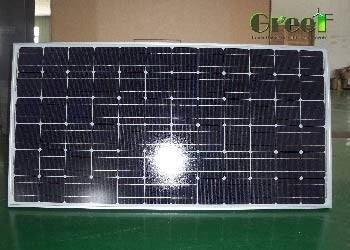

The role of solar panels is to convert solar radiation energy directly into direct current for use by the load or for storage in a battery for backup. Generally, according to the user's needs, a number of solar panels are connected in a certain way to form a solar cell array, and then with the appropriate bracket and junction box composition.

PROFESSIONAL OFF GRID SOLAR SYSTEM MPPT CHARGE RATED POWER 5KW MOUNTING SYSTEM 5

The role of the inverter is to reverse the low-voltage DC power supplied by the solar arrays and batteries into AC power for the AC load.

PROFESSIONAL OFF GRID SOLAR SYSTEM MPPT CHARGE RATED POWER 5KW MOUNTING SYSTEM 6

The battery bank is used to store the DC power generated by the solar array for use by the load. In a photovoltaic system, the battery is in a floating charge/discharge state. In summer, when there is a lot of sunlight, the battery is charged in addition to the load power. In winter, when there is little sunlight, this stored electricity is gradually released. During the day, the solar cell array charges the battery, while the array also supplies the load, and at night the load is fully supplied by the battery.

PROFESSIONAL OFF GRID SOLAR SYSTEM MPPT CHARGE RATED POWER 5KW MOUNTING SYSTEM 7



System Solution


We can make customized solar generation system solutions according to your requirements.

PROFESSIONAL OFF GRID SOLAR SYSTEM MPPT CHARGE RATED POWER 5KW MOUNTING SYSTEM 8PROFESSIONAL OFF GRID SOLAR SYSTEM MPPT CHARGE RATED POWER 5KW MOUNTING SYSTEM 9

PROFESSIONAL OFF GRID SOLAR SYSTEM MPPT CHARGE RATED POWER 5KW MOUNTING SYSTEM 10

PROFESSIONAL OFF GRID SOLAR SYSTEM MPPT CHARGE RATED POWER 5KW MOUNTING SYSTEM 11

PROFESSIONAL OFF GRID SOLAR SYSTEM MPPT CHARGE RATED POWER 5KW MOUNTING SYSTEM 12

PROFESSIONAL OFF GRID SOLAR SYSTEM MPPT CHARGE RATED POWER 5KW MOUNTING SYSTEM 13

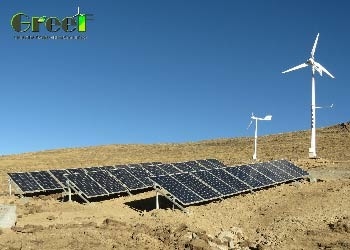

Project case


An off-grid solar system (off-the-grid, standalone) is the obvious alternative to one that is grid-tied. For homeowners who cant always be access to the grid, off-grid solar systems are usually out of question.



PROFESSIONAL OFF GRID SOLAR SYSTEM MPPT CHARGE RATED POWER 5KW MOUNTING SYSTEM 14

PROFESSIONAL OFF GRID SOLAR SYSTEM MPPT CHARGE RATED POWER 5KW MOUNTING SYSTEM 15







Why Choose Us


PROFESSIONAL OFF GRID SOLAR SYSTEM MPPT CHARGE RATED POWER 5KW MOUNTING SYSTEM 16

PROFESSIONAL OFF GRID SOLAR SYSTEM MPPT CHARGE RATED POWER 5KW MOUNTING SYSTEM 17



Any other questions, please feel free to contact us! We will reply you within 24 hours!
