Name: 5kw wind turbine price wind turbine generator for home use 10KW
Brand: Qingdao Greef New Energy Equipment Co., Ltd
SKU: AH-5KW
Price: 12999 USD
Availability: InStock

Home > Products > Pitch Control Wind Turbine >

5kw wind turbine price wind turbine generator for home use 10KW

10KW wind turbine generator

5kw wind turbine generator

home use wind turbine generator

Place of Origin:

CHINA

Brand Name:

GREEF

Certification:

Model Number:

AH-5KW

Request A Quote

Product Details

Swept Area:

24 ㎡

Start Wind Speed:

2.5m/s(5.59mph)

Safety Wind Speed:

60m/s(133.8mph)

Blades Length:

2.5M(8.2ft)

Rated Power:

5KW

Blades Rotor Diameter:

5.6M(18.37ft)

Mill Weight:

400kg

Blades Material &Quantity:

FRP /3PCS

Highlight:

10KW wind turbine generator

5kw wind turbine generator

home use wind turbine generator

Payment & Shipping Terms

Minimum Order Quantity

1set

Price

Negotiable

Packaging Details

Carton or Plywooden Case

Delivery Time

25-30 Working Days

Payment Terms

T/T, Western Union, L/C

Supply Ability

400 Sets per Month

5kw 10kw 20kw 30kw Pitch Control Wind Turbine On Grid And Off Grid System For Future Of Renewable Energy

Get Best Price

Video

Up Wind Yawing Pitch Control Wind Turbine With Three Phase Permanent AC Magnet Generator 5KW High Power Generation Efficiency

Get Best Price

Video

20KW / 30KW Pitch Control Wind Turbine Variable Pitch Technology 30% High Power Generation Low Start Wind Speed 2.5m/s

Get Best Price

Video

High Safety Wind Speed 60m/s Pitch Control Wind Turbine Using 3PCS FRP Blades

Get Best Price

Contact Now

Product Description

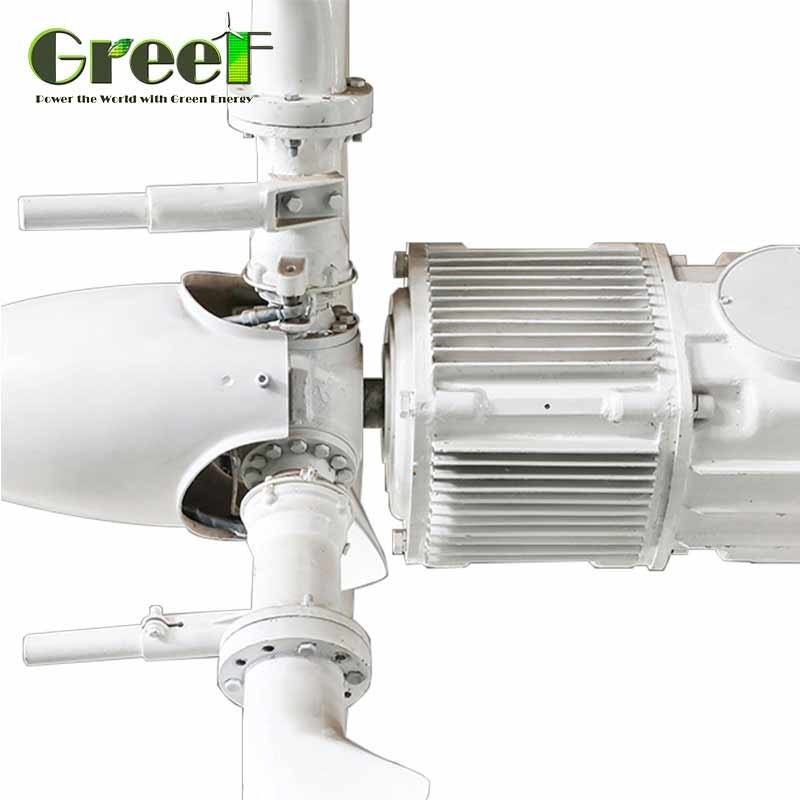

5kw wind turbine price wind turbine generator for home use 10KW 0

5kw wind turbine price wind turbine generator for home use 10KW 2

Why choose AH-5KW Wind turbine?

Using the world's leading mechanical centrifugal variable pitch technology, the average annual
power generation is 30% more.

5kw wind turbine price wind turbine generator for home use 10KW 3

The use of variable pitch technology has greatly improved the efficiency of wind turbine power
generation,The graph of increased power is shown below:

5kw wind turbine price wind turbine generator for home use 10KW 5

Technical specification

Performance
Rated Power	5KW
Max Power	6KW
Start Wind Speed	2.5m/s(5.59mph)
Rated Wind Speed	10m/s(22.37mph)
Working Wind Speed	3-30m/s(6.71-67.2 mph)
Safety Wind Speed	60m/s(133.8mph)
Physical Parameters
Blades Length	2.5M(8.2ft)
Blades Rotor Diameter	5.6M(18.37ft)
Blades Material&Quantity	FRP /3PCS
Mill Weight	400kg
Swept Area	24 ㎡
Tower Height	≥8m,Hot dip galvanized
Generator Parameters
Rated Speed	240 RPM
Rated Working voltage	DC400V/DC240V
Start Torque	<0.3N.M
Generator Type	Three-phase permanent AC magnet generator
Wind Answering Method	Up wind+yawing
Stop Method	Pitch brake + active yaw
Speed Mode	Pitch + active yaw + electromagnetic brake
Protection Grade	IP54
Working Temperature	-20--+50℃

Power Curve

5kw wind turbine price wind turbine generator for home use 10KW 6

Annual Energy Production

Annual Wind Speed(m/s)	3.5	4	4.5	5	5.5	6	6.5	7
Production (kWH)	2481	3744	5168	7298	8277	12120	13785	16980

This data will have ±10% difference according to local condition.

AH-5KW wind turbine?

Power Curve Tracking Function

1.For off-grid system –Marching MPPT Charge controller

2.For on-grid system –Marching MPPT Wind Invertor

● Wind turbine MPPT track point adjustable by yourself.
● Off-grid system wind turbine low cut in wind speed charge.
● Complete protection function.
● Several functions are optional, such as PV control function, wind speed measure function, rotational speed
control function and temperature compensation function.
● RS232/RS485/RJ45/GPRS/WIFI/Bluetooth/Zigbee optional. ( It can be monitored by app for those with
GPRS/WIFI/Bluetooth/RJ45 connection).

5kw wind turbine price wind turbine generator for home use 10KW 7

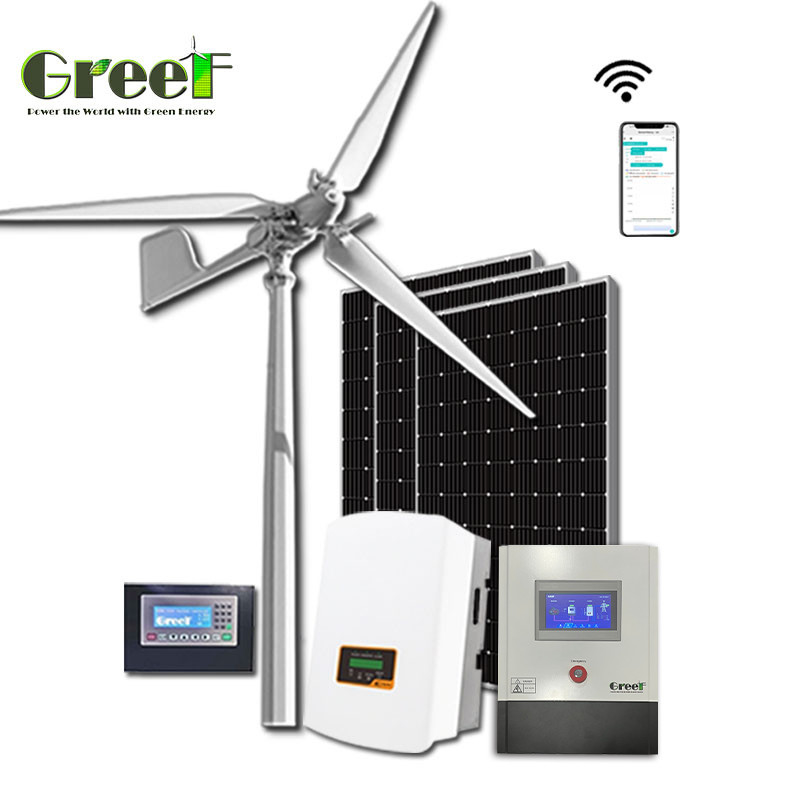

System Solution

5kw wind turbine price wind turbine generator for home use 10KW 8

Product Showcase

Ratings& Review

Overall Rating

5.0

Based on 50 reviews for this supplier

Rating Snapshot

The following is the distribution of all ratings

5 stars

100%

4 stars

3 stars

2 stars

1 stars

All Reviews

B*n

Sweden Oct 17.2025

Helpful (8)

My farm is 30 kilometers from town, and connecting to the power grid would cost a fortune. Three years ago, I installed a solar panel system with a battery bank. It was sufficient during spring, summer, and fall, but in winter, we often had a week of consecutive overcast days—and the batteries would run out in just three days. Last year, I decided to add a variable-pitch wind turbine, connected it to the AC coupling port of the Deye inverter, and set up a hybrid solar-wind system. Throughout the entire winter, the battery level never dropped below 45%, and I never had to work in the dark again. The Deye app allows me to monitor both the solar and wind turbine data simultaneously, and the transition between them is so smooth it’s almost imperceptible. Relying solely on solar power during winter on a Nordic farm is a gamble. Only by combining a variable-pitch wind turbine with a Deye inverter—creating a wind-solar hybrid system—can you get through the winter with peace of mind.

E*c

France Jul 17.2025

Helpful (2)

Since installing this variable-pitch wind turbine, the battery hasn’t run low again. Before, I used to worry whenever we had consecutive overcast days and light winds in the winter, but now it can even charge the battery in low winds. Best of all, it doesn’t suddenly start screeching during gusts, so it doesn’t disturb my family’s sleep. The installer also mentioned that variable-pitch turbines are easier to calibrate than fixed-pitch ones. I give it five stars!

J*n

Norway Apr 8.2024

Helpful (4)

I run a small dairy farm in northern Norway, far from the power grid. A few years ago, I installed solar panels and a Deye inverter, but the solar system basically stops working in winter, and the diesel generator was costing me a fortune. This year, I added this variable-pitch wind turbine and connected it to the Deye inverter for a hybrid solar-wind system, and we haven’t had a single power outage all winter. This wind turbine starts up at low wind speeds of just 2–3 on the Beaufort scale. During blizzards, the blades automatically pitch down to slow the turbine, preventing runaway speeds, and it’s much quieter than my neighbor’s fixed-pitch model. The Deye inverter’s switching logic is smart—it prioritizes solar power when available, and automatically switches to the wind turbine when solar output drops. It’s all clearly visible on the app. Now, the diesel generator is practically idle. Wind and solar backing each other up—that’s true off-grid freedom.
