Name: wind turbine generator 5000w 30kw low rpm wind turbine generator
Brand: Qingdao Greef New Energy Equipment Co., Ltd
SKU: AH-5KW
Price: 12999 USD
Availability: InStock

Home > Products > Pitch Control Wind Turbine >

wind turbine generator 5000w 30kw low rpm wind turbine generator

low rpm wind turbine generator

30kw wind turbine generator

5000w wind turbine generator

Place of Origin:

CHINA

Brand Name:

GREEF

Certification:

Model Number:

AH-5KW

Request A Quote

Product Details

Start Wind Speed:

2.5m/s(5.59mph)

Mill Weight:

400kg

Safety Wind Speed:

60m/s(133.8mph)

Blades Length:

2.5M(8.2ft)

Swept Area:

24 ㎡

Rated Power:

5KW

Blades Rotor Diameter:

5.6M(18.37ft)

Blades Material &Quantity:

FRP /3PCS

Highlight:

low rpm wind turbine generator

30kw wind turbine generator

5000w wind turbine generator

Payment & Shipping Terms

Minimum Order Quantity

1set

Price

Negotiable

Packaging Details

Carton or Plywooden Case

Delivery Time

25-30 Working Days

Payment Terms

T/T, Western Union, L/C

Supply Ability

400 Sets per Month

5kw 10kw 20kw 30kw Pitch Control Wind Turbine On Grid And Off Grid System For Future Of Renewable Energy

Get Best Price

Video

Up Wind Yawing Pitch Control Wind Turbine With Three Phase Permanent AC Magnet Generator 5KW High Power Generation Efficiency

Get Best Price

Video

20KW / 30KW Pitch Control Wind Turbine Variable Pitch Technology 30% High Power Generation Low Start Wind Speed 2.5m/s

Get Best Price

Video

High Safety Wind Speed 60m/s Pitch Control Wind Turbine Using 3PCS FRP Blades

Get Best Price

Contact Now

Product Description

wind turbine generator 5000w 30kw low rpm wind turbine generator 0

wind turbine generator 5000w 30kw low rpm wind turbine generator 2

Why choose AH-5KW Wind turbine?

Using the world's leading mechanical centrifugal variable pitch technology, the average annual
power generation is 30% more.

wind turbine generator 5000w 30kw low rpm wind turbine generator 3

The use of variable pitch technology has greatly improved the efficiency of wind turbine power
generation,The graph of increased power is shown below:

wind turbine generator 5000w 30kw low rpm wind turbine generator 5

Technical specification

Performance
Rated Power	5KW
Max Power	6KW
Start Wind Speed	2.5m/s(5.59mph)
Rated Wind Speed	10m/s(22.37mph)
Working Wind Speed	3-30m/s(6.71-67.2 mph)
Safety Wind Speed	60m/s(133.8mph)
Physical Parameters
Blades Length	2.5M(8.2ft)
Blades Rotor Diameter	5.6M(18.37ft)
Blades Material&Quantity	FRP /3PCS
Mill Weight	400kg
Swept Area	24 ㎡
Tower Height	≥8m,Hot dip galvanized
Generator Parameters
Rated Speed	240 RPM
Rated Working voltage	DC400V/DC240V
Start Torque	<0.3N.M
Generator Type	Three-phase permanent AC magnet generator
Wind Answering Method	Up wind+yawing
Stop Method	Pitch brake + active yaw
Speed Mode	Pitch + active yaw + electromagnetic brake
Protection Grade	IP54
Working Temperature	-20--+50℃

Power Curve

wind turbine generator 5000w 30kw low rpm wind turbine generator 6

Annual Energy Production

Annual Wind Speed(m/s)	3.5	4	4.5	5	5.5	6	6.5	7
Production (kWH)	2481	3744	5168	7298	8277	12120	13785	16980

This data will have ±10% difference according to local condition.

AH-5KW wind turbine?

Power Curve Tracking Function

1.For off-grid system –Marching MPPT Charge controller

2.For on-grid system –Marching MPPT Wind Invertor

● Wind turbine MPPT track point adjustable by yourself.
● Off-grid system wind turbine low cut in wind speed charge.
● Complete protection function.
● Several functions are optional, such as PV control function, wind speed measure function, rotational speed
control function and temperature compensation function.
● RS232/RS485/RJ45/GPRS/WIFI/Bluetooth/Zigbee optional. ( It can be monitored by app for those with
GPRS/WIFI/Bluetooth/RJ45 connection).

wind turbine generator 5000w 30kw low rpm wind turbine generator 7

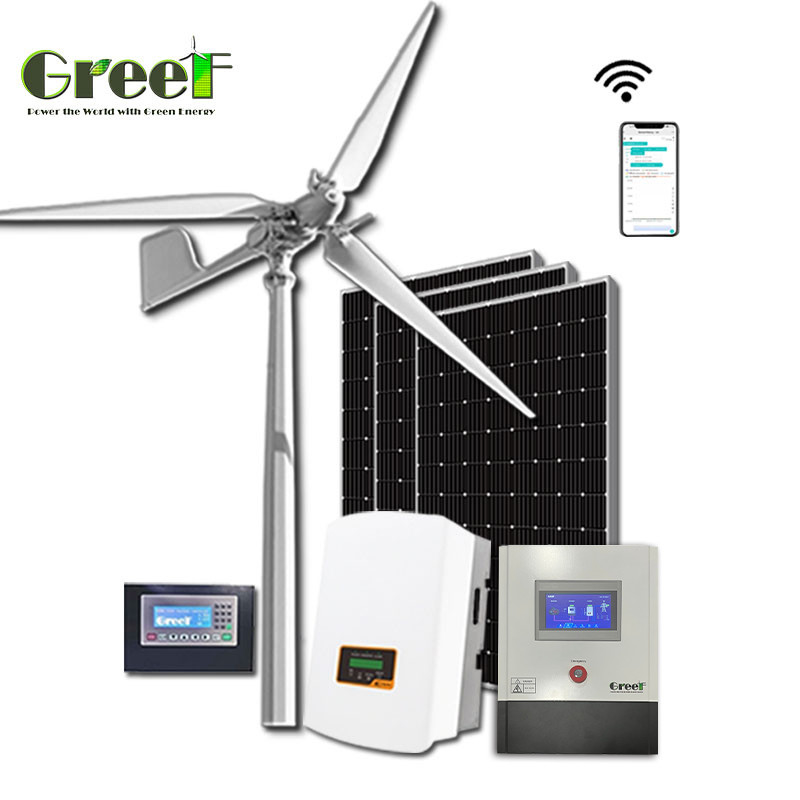

System Solution
