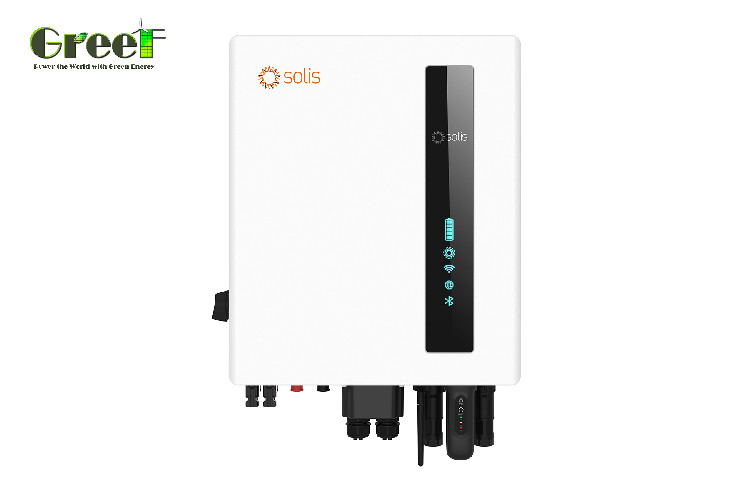

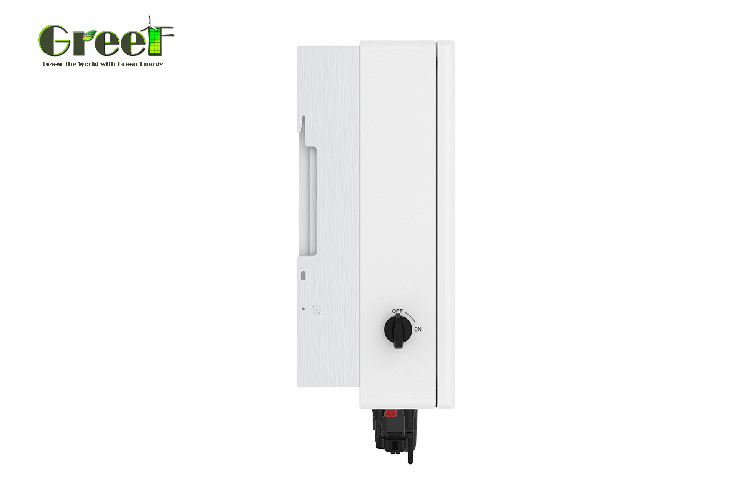

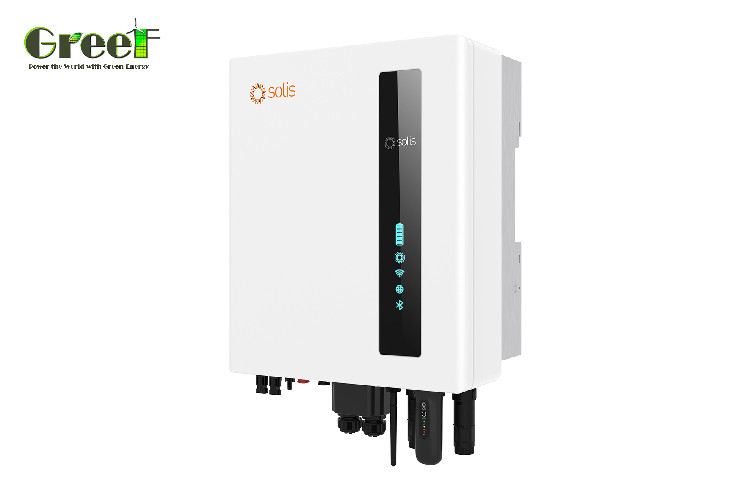

3KW 5KW 10KW MPPT Wind Power On Grid Solar Inverter For Home

3KW 5KW 10KW MPPT Wind Power On Grid Solar Inverter For Home

MPPT On Grid Solar Inverter

10KW On Grid Solar Inverter

IP66 On Grid Inverter

Place of Origin:

CHINA

Brand Name:

GREEF

Certification:

ce

Model Number:

S6-EH1P3/5K-L-EU

Contact Us
Request A Quote
Product Details
Max. Input Voltage:
600 V
Rated Voltage:
330 V
Start-up Voltage:
90 V
MPPT Voltage Range:
90-520 V
Max. Efficiency:
> 97.5%
Max. Input Current:
16 A / 16 A
Max. Short Circuit Current:
24 A / 24 A
Rated Grid Voltage:
220 V / 230 V
Input Voltage Range:
187-253 V
Rated Frequency:
50 Hz / 60 Hz
Ingress Protection:
IP66
Communication:
RS485, CAN, Optional: Wi-Fi, GPRS, LAN
Display:
LED + APP
Payment & Shipping Terms
Minimum Order Quantity
1set
Price
Negotiable
Packaging Details
Carton or Plywooden Case
Delivery Time
25-30 Working Days
Payment Terms
T/T, Western Union, L/C
Supply Ability
400 Sets per Month
Product Description

3KW 5KW 10KW Popular MPPT Wind Power On Grid Solar Inverter For Home

Product details


3KW 5KW 10KW MPPT Wind Power On Grid Solar Inverter For Home 0

Integrated 2 MPPTs for multiple array orientations
Industry leading 125A/6kW max charge/discharge rating
Automatic UPS switching
Supports Peak Shaving Mode
Pre-made Battery, Meter and CAN cabling to reduce installation time
Supports 1ph and 3ph flexible connection on both the Grid and Backup Port
Compatible with multiple brands of lithium battery models
Increased battery protection and operation features to extend battery life



3KW 5KW 10KW MPPT Wind Power On Grid Solar Inverter For Home 1

Solis Series Single phase series string inverter are green power leader in affordable small residential and commercial rooftops, adopt full digital control technology, advanced topological structure and accurate MPPT algorithm, whose efficiency higher than the industry's leading conversion is up to 97.5% at the maximum.Meanwhile adopt multiple

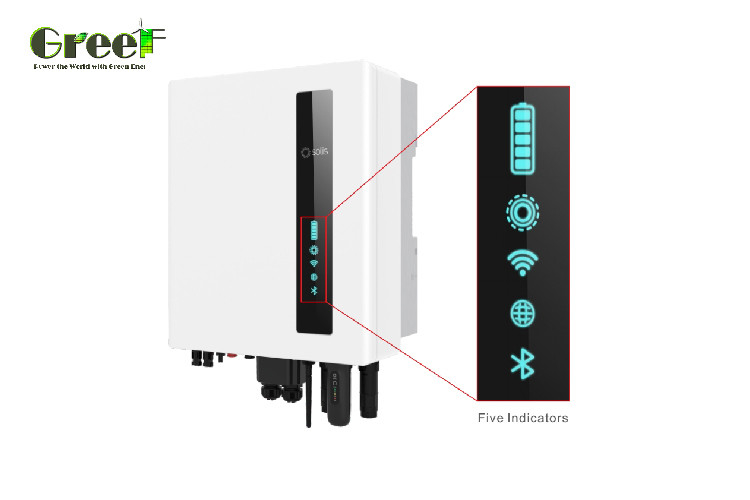

There are five indicators on the The Solis S6-EH1P(3-6)K-L Series Inverter (Battery, Power, WiFi, Ethernet and Bluetooth) which indicate the working status of the inverter.

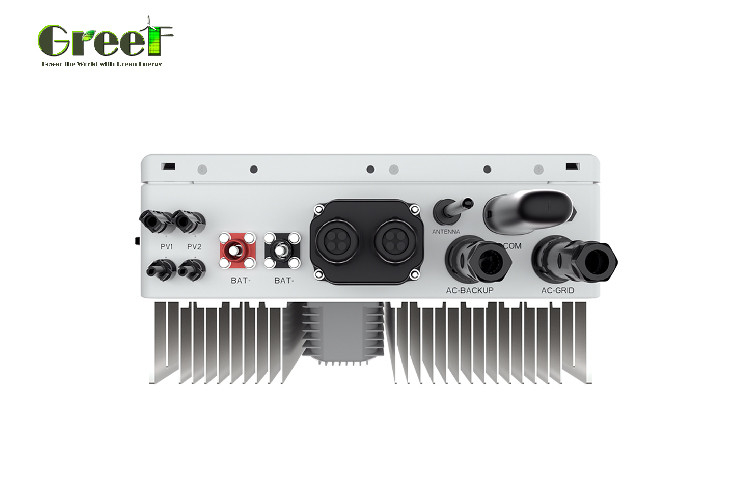

The Bluetooth Antenna or WiFi datalogger shall be installed at the Antenna/COM port of the hybrid inverter before local debugging.

3KW 5KW 10KW MPPT Wind Power On Grid Solar Inverter For Home 23KW 5KW 10KW MPPT Wind Power On Grid Solar Inverter For Home 33KW 5KW 10KW MPPT Wind Power On Grid Solar Inverter For Home 4
System diagram

We can make customized solar generation system solutions according to your requirements.

3KW 5KW 10KW MPPT Wind Power On Grid Solar Inverter For Home 5

Since the system can be customized, the price will be different depending on the equipment, if you need specific parameters, please contact us directly.



Product Parameters


3KW 5KW 10KW MPPT Wind Power On Grid Solar Inverter For Home 6
