Name: Lcd Touch Screen Grid Tied Wind Generator Controller 5kw energy management
Brand: Qingdao Greef New Energy Equipment Co., Ltd
SKU: GT-PCTC
Price: 1,730.00 USD
Availability: InStock

Home > products > On Grid Controller >

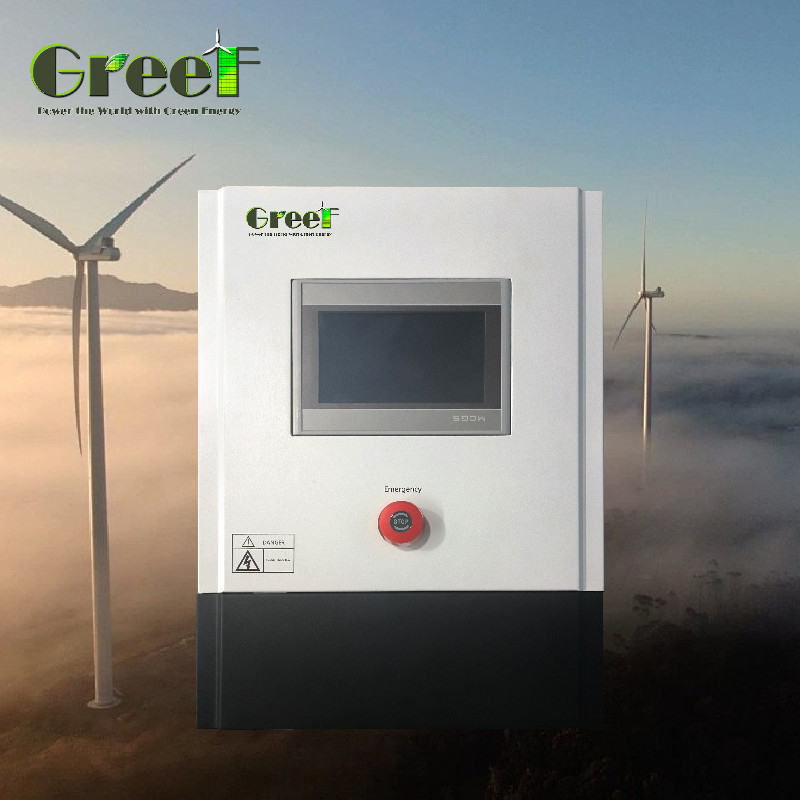

Lcd Touch Screen Grid Tied Wind Generator Controller 5kw energy management

Grid Tied Wind Generator Controller 5kw

lcd touch screen On Grid Controller

Lcd Touch Screen energy management controller

Place of Origin:

China

Brand Name:

GreeF

Certification:

Model Number:

GT-PCTC

Request A Quote

Lcd Touch Screen Grid Tied Wind Generator Controller 5kw energy management

Product Details

3-phase Dump Load Time-lapse:

12-20 Min

Packaging:

Carton Or Plywood Case

Product Category:

On Grid Controller

Automatic Protection Function:

Over Voltage Protection, Grid Cut Off Protection, Regulated Supply Output, Arrester

Display Mode:

LCD Touch Screen

Communication Interface (optional):

RS485/USB/GPRS/WIFI/Ethernet

Type:

AC To DC Converter

Output Type:

Payment & Shipping Terms

Minimum Order Quantity

1 Set

Price

Negotiable

Packaging Details

Carton or Plywooden Case

Delivery Time

5-20 working days

Payment Terms

T/T, Western Union, L/C

Supply Ability

Optimize 10kw Wind Turbine With On Grid Controller Solar Inverter

Get Best Price

Video

Optimize Wind Turbine With On Grid Controller For Maximum Efficiency With Solar Inverter

Get Best Price

Video

Optimize 5kw Wind Turbine With On Grid Controller Solar Inverter Battery System

Get Best Price

Grid Tied Wind Turbine Controller 2kW 3kW 5kW 10kW DC Output Type

Get Best Price

Contact Now

Product Description

Features:

Product Name: On Grid Controller
Degree of protection: IP20(Indoor) IP65 (Outdoors)
Manual function: Manual brake, Reset, Emergency switch
Display mode: LCD Touch Screen
3-phase dump load time-lapse: 12-20 min
Function: Rectifier, Control, DC Output

Lcd Touch Screen Grid Tied Wind Generator Controller 5kw energy management 0

Product Introduction

Grid-Tied Controller is technologically the most important component in wind generator on-grid systems, which convert Three AC current from wind turbine into DC current then send to the grid-tie invertor.
GT-PCTC series wind professional grid-tied controller which have Double safety control systems:PWM constant voltage system and three-phase dump load brake system, It can control Solis solar invertor working then let the solar invertor suitable for wind turbine working condition.

Product Parameters

Type	GT-PCTC-1.5KW	GT-PCTC-2KW	GT-PCTC-3KW	GT-PCTC-5KW
Wind turbine rated power	1.5KW	2KW	3KW	5KW
Wind turbine rated voltage	AC220V-240V	AC220V-240V	AC220V-380V	AC380-450V
Function	Rectifier,Control,DC output
Automatic protection function	Over voltage protection, Grid cut off protection, Regulated supply output, Arrester
Manual function	Manual brake, Reset, Emergency switch
Display mode	LCD Touch Screen
Display content (larger one)	Generator speed(rpm),Input voltage (Vdc), Input current(Vac) ,Output power(kW), Grid voltage (Vac),Grid current(A), Power generate today(kWh),Power generate this month, Power generate last month, Power generate this year, Power generate last year,Power Curve setting.
3-phase dump load time-lapse	12-20 min	12-20 min	12-20 min	12-20 min
Wind turbine 3-phase dump load voltage	450±5Vdc			750±5Vdc
PWM constant voltage	≥400dc			≥700dc
Environment temperature	-30-60°C
Relative humidity	＜90% No condensation
Noise (1m)	＜40dB
Degree of protection	IP20(Indoor) IP65 (Outdoors)
Cooling method	Forced air cooling
Communication interface (optional)	RS485/USB/GPRS/WIFI/Ethernet

Type	GT-PCTC-10KW	GT-PCTC-20KW	GT-PCTC-30KW
Wind turbine rated power	10KW	20KW	30KW
Wind turbine rated voltage	AC380-520V
Function	Rectifier,Control,DC output
Automatic protection function	Over voltage protection, Grid cut off protection, Regulated supply output, Arrester
Manual function	Manual brake, Reset, Emergency switch
Display mode	LCD Touch Screen
Display content (larger one)	Generator speed(rpm),Input voltage (Vdc), Input current(Vac) ,Output power(kW), Grid voltage (Vac),Grid current(A), Power generate today(kWh),Power generate this month, Power generate last month, Power generate this year, Power generate last year,Power Curve setting.
PWM constant voltage	≥700dc
Wind turbine 3-phase dump load voltage	750±5Vdc
Wind turbine 3-phase dump load time-lapse	12-20 min
Environment temperature	-30-60°C
Relative humidity	＜90% No condensation
Noise (1m)	＜40dB
Degree of protection	IP20(Indoor) IP65 (Outdoors)
Cooling method	Forced air cooling
Communication interface (optional)	RS485/USB/GPRS/WIFI/Ethernet

Lcd Touch Screen Grid Tied Wind Generator Controller 5kw energy management 1

Product Details

Lcd Touch Screen Grid Tied Wind Generator Controller 5kw energy management 2

System Solution

Lcd Touch Screen Grid Tied Wind Generator Controller 5kw energy management 3

Greef has a professional team to create a tailor-made system for customers, this picture is an example, if you have other
requirements, please contact us!

Product packaging

Lcd Touch Screen Grid Tied Wind Generator Controller 5kw energy management 4
