Name: 5kw 10kw Wind Turbine Controller For Wind And Solar Hybrid System
Brand: Qingdao Greef New Energy Equipment Co., Ltd
SKU: GT-PCTC
Price: 1,730.00 USD
Availability: InStock

Home > Products > On Grid Controller >

5kw 10kw Wind Turbine Controller For Wind And Solar Hybrid System

5kw wind turbine Controller

10kw wind turbine Controller

wind Solar Systemturbine Controller

Place of Origin:

China

Brand Name:

GreeF

Certification:

Model Number:

GT-PCTC

Request A Quote

5kw 10kw Wind Turbine Controller For Wind And Solar Hybrid System

Product Details

Output Type:

3-phase Dump Load Time-lapse:

12-20 Min

Cooling Method:

Forced Air Cooling

Type:

AC To DC Converter

System Solution:

Greef Has A Professional Team To Create A Tailor-made System For Customers, This Picture Is An Example, If You Have Other Requirements, Please Contact Us!

Degree Of Protection:

IP20(Indoor) IP65 (Outdoors)

Automatic Protection Function:

Over Voltage Protection, Grid Cut Off Protection, Regulated Supply Output, Arrester

Highlight:

5kw wind turbine Controller

10kw wind turbine Controller

wind Solar Systemturbine Controller

Payment & Shipping Terms

Minimum Order Quantity

1 Set

Price

Negotiable

Packaging Details

Carton or Plywooden Case

Delivery Time

5-20 working days

Payment Terms

T/T, Western Union, L/C

Supply Ability

Ground Fault Monitoring On Grid Controller With AC Voltage Working Range 150V 550 Designed For And Solar Energy Integration

Get Best Price

700kw Hybrid Convertor Featuring Intelligent Air Cooling and Maximum Efficiency 95 Designed for Solar Power Conversion

Get Best Price

Video

150V to 550V AC voltage working range touch screen display featuring ground fault monitoring suitable for smart applications Hybrid Convertor

Get Best Price

Video

Hybrid Convertor On Grid Controller with Maximum Efficiency 95 Percent AC Voltage Working Range 150V 550V and Solar Power Solution

Get Best Price

Contact Now

Product Description

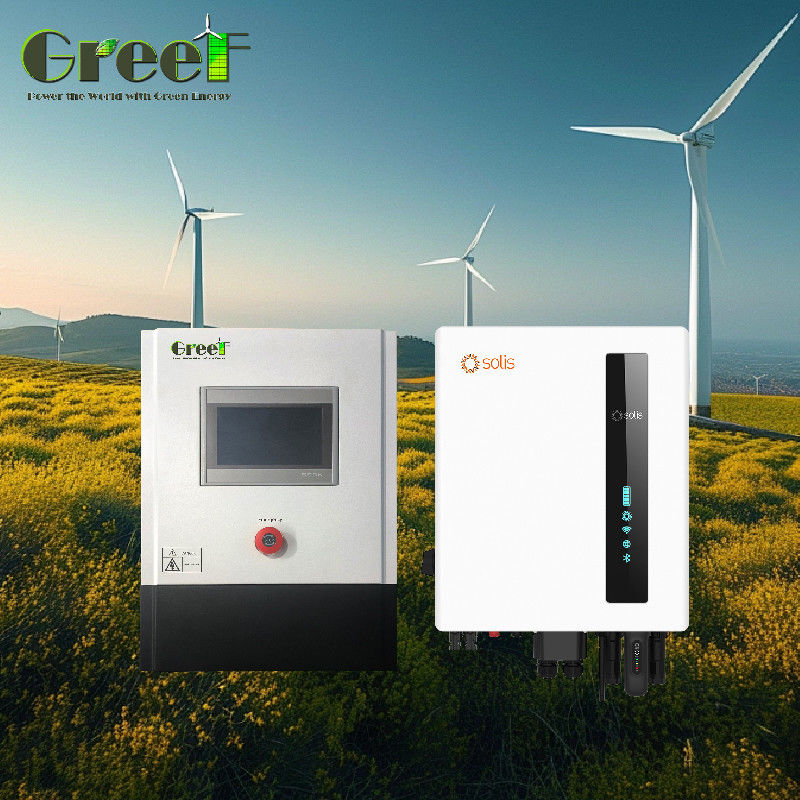

5kw 10kw Wind Turbine Controller For Wind And Solar Hybrid System 0

Product Introduction

Grid-Tied Controller is technologically the most important component in wind generator on-grid systems, which convert Three AC current from wind turbine into DC current then send to the grid-tie invertor.
GT-PCTC series wind professional grid-tied controller which have Double safety control systems:PWM constant voltage system and three-phase dump load brake system, It can control Solis solar invertor working then let the solar invertor suitable for wind turbine working condition.

Product Parameters

Type	GT-PCTC-1.5KW	GT-PCTC-2KW	GT-PCTC-3KW	GT-PCTC-5KW
Wind turbine rated power	1.5KW	2KW	3KW	5KW
Wind turbine rated voltage	AC220V-240V	AC220V-240V	AC220V-380V	AC380-450V
Function	Rectifier,Control,DC output
Automatic protection function	Over voltage protection, Grid cut off protection, Regulated supply output, Arrester
Manual function	Manual brake, Reset, Emergency switch
Display mode	LCD Touch Screen
Display content (larger one)	Generator speed(rpm),Input voltage (Vdc), Input current(Vac) ,Output power(kW), Grid voltage (Vac),Grid current(A), Power generate today(kWh),Power generate this month, Power generate last month, Power generate this year, Power generate last year,Power Curve setting.
3-phase dump load time-lapse	12-20 min	12-20 min	12-20 min	12-20 min
Wind turbine 3-phase dump load voltage	450±5Vdc			750±5Vdc
PWM constant voltage	≥400dc			≥700dc
Environment temperature	-30-60°C
Relative humidity	＜90% No condensation
Noise (1m)	＜40dB
Degree of protection	IP20(Indoor) IP65 (Outdoors)
Cooling method	Forced air cooling
Communication interface (optional)	RS485/USB/GPRS/WIFI/Ethernet

Type	GT-PCTC-10KW	GT-PCTC-20KW	GT-PCTC-30KW
Wind turbine rated power	10KW	20KW	30KW
Wind turbine rated voltage	AC380-520V
Function	Rectifier,Control,DC output
Automatic protection function	Over voltage protection, Grid cut off protection, Regulated supply output, Arrester
Manual function	Manual brake, Reset, Emergency switch
Display mode	LCD Touch Screen
Display content (larger one)	Generator speed(rpm),Input voltage (Vdc), Input current(Vac) ,Output power(kW), Grid voltage (Vac),Grid current(A), Power generate today(kWh),Power generate this month, Power generate last month, Power generate this year, Power generate last year,Power Curve setting.
PWM constant voltage	≥700dc
Wind turbine 3-phase dump load voltage	750±5Vdc
Wind turbine 3-phase dump load time-lapse	12-20 min
Environment temperature	-30-60°C
Relative humidity	＜90% No condensation
Noise (1m)	＜40dB
Degree of protection	IP20(Indoor) IP65 (Outdoors)
Cooling method	Forced air cooling
Communication interface (optional)	RS485/USB/GPRS/WIFI/Ethernet

5kw 10kw Wind Turbine Controller For Wind And Solar Hybrid System 1

Product Details

5kw 10kw Wind Turbine Controller For Wind And Solar Hybrid System 2

System Solution

5kw 10kw Wind Turbine Controller For Wind And Solar Hybrid System 3

Greef has a professional team to create a tailor-made system for customers, this picture is an example, if you have other
requirements, please contact us!

Product packaging

5kw 10kw Wind Turbine Controller For Wind And Solar Hybrid System 4

Why Choose Us

Support and Services:

The On Grid Controller product technical support and services include:

- Troubleshooting and diagnosis of technical issues

- Firmware updates and upgrades

- Guidance on installation and setup

- Remote monitoring and performance analysis

- Technical documentation and user manuals

- Warranty and repair services

Packing and Shipping:

Product Packaging:

The On Grid Controller product will be carefully packaged and shipped in a sturdy cardboard box to ensure that it arrives at your doorstep in perfect condition. Inside the box, you will find the On Grid Controller product securely wrapped in bubble wrap to prevent any damage during transportation. Additionally, the box will include an instruction manual and any necessary cables or accessories to ensure that you can start using the product right away.

Shipping:

We offer free shipping for all orders of the On Grid Controller product within the United States. For international orders, shipping costs will be calculated at checkout based on the destination and weight of the package. Once your order has been placed, it will be processed and shipped within 1-2 business days. You will receive a tracking number via email so you can track your package's delivery status.
