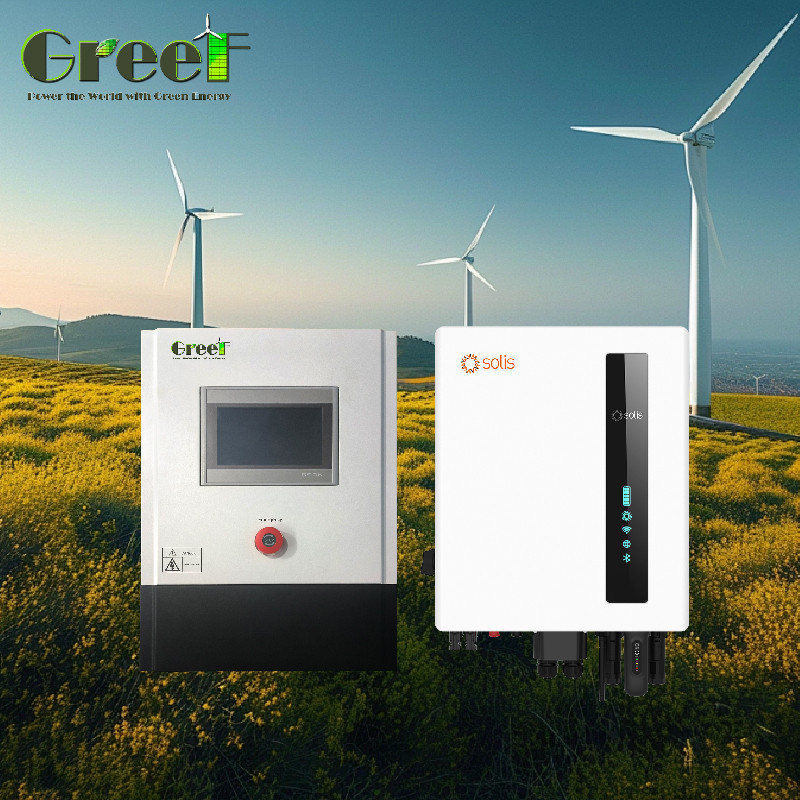

PWM Constant Voltage ≥400dc On Grid Controller For Home Use 5kw

Product Description:

The On Grid Controller is available in two sleek colors, white and black, to match your aesthetic preferences. It operates with minimal noise, producing less than 40dB of noise at 1m distance, making it an ideal choice for residential and commercial use.

The On Grid Controller features an LCD Touch Screen display mode that allows for easy and convenient monitoring of your wind turbine's performance. You can easily track the power output and other important metrics with just a few taps on the screen.

For added convenience, the On Grid Controller is equipped with communication interfaces, including RS485, USB, GPRS, WiFi, and Ethernet. You can choose which interface works best for your specific needs, making it a versatile and adaptable choice for any wind turbine application.

Upgrade your wind turbine with our On Grid Controller and experience the difference in precision and performance. Order now and take the first step towards a more efficient and productive wind turbine system.

Features:

• Product Name: On Grid Controller
• Output Type: DC
• Packaging: Carton Or Plywood Case
• Display: LCD Screen
• Communication interface (optional): RS485/USB/GPRS/WIFI/Ethernet
• Manual function: Manual brake, Reset, Emergency switch
• Other features:
  • Generator Control Panel
  • Axis Joystick Controller
  • Control System Software



    Product Introduction
    Grid-Tied Controller is technologically the most important component in wind generator on-grid systems, which convert Three AC current from wind turbine into DC current then send to the grid-tie invertor. GT-PCTC series wind professional grid-tied controller which have Double safety control systems: PWM constant voltage system and three-phase dump load brake system, This innovative solution also interfaces with solar inverters from brands like Growatt, Deye, Solis, and Ivet, enabling solar inverters to adapt to wind turbine operating conditions.
    Product Parameters

    Type	GT-PCTC-1.5KW	GT-PCTC-2KW	GT-PCTC-3KW	GT-PCTC-5KW
    Wind turbine rated power	1.5KW	2KW	3KW	5KW
    Wind turbine rated voltage	AC220V-240V	AC220V-240V	AC220V-380V	AC380-450V
    Function	Rectifier,Control,DC output
    Automatic protection function	Over voltage protection, Grid cut off protection, Regulated supply output, Arrester
    Manual function	Manual brake, Reset, Emergency switch
    Display mode	LCD Touch Screen
    Display content (larger one)	Generator speed(rpm),Input voltage (Vdc), Input current(Vac) ,Output power(kW), Grid voltage (Vac),Grid current(A), Power generate today(kWh),Power generate this month, Power generate last month, Power generate this year, Power generate last year,Power Curve setting.
    3-phase dump load time-lapse	12-20 min	12-20 min	12-20 min	12-20 min
    Wind turbine 3-phase dump load voltage	450±5Vdc			750±5Vdc
    PWM constant voltage	≥400dc			≥700dc
    Environment temperature	-30-60°C
    Relative humidity	＜90% No condensation
    Noise (1m)	＜40dB
    Degree of protection	IP20(Indoor) IP65 (Outdoors)
    Cooling method	Forced air cooling
    Communication interface (optional)	RS485/USB/GPRS/WIFI/Ethernet

    Type	GT-PCTC-10KW	GT-PCTC-20KW	GT-PCTC-30KW	GT-ACDC-50KW	GT-ACDC-100KW
    Wind turbine rated power	10KW	20KW	30KW	50KW	100KW
    Wind turbine rated voltage	AC380-520V
    Function	Rectifier,Control,DC output
    Automatic protection function	Over voltage protection, Grid cut off protection, Regulated supply output, Arrester
    Manual function	Manual brake, Reset, Emergency switch
    Display mode	LCD Touch Screen
    Display content (larger one)	Generator speed(rpm),Input voltage (Vdc), Input current(Vac) ,Output power(kW), Grid voltage (Vac),Grid current(A), Power generate today(kWh),Power generate this month, Power generate last month, Power generate this year, Power generate last year,Power Curve setting.
    PWM constant voltage	≥700dc	≥700dc	≥700dc	≥700dc	≥700dc
    Wind turbine 3-phase dump load voltage	750±5Vdc	750±5Vdc	750±5Vdc	750±5Vdc	750±5Vdc
    Wind turbine 3-phase dump load time-lapse	12-20 min	12-20 min	12-20 min	12-20 min	12-20 min
    Environment temperature	-30-60°C
    Relative humidity	＜90% No condensation
    Noise (1m)	＜40dB
    Degree of protection	IP20(Indoor) IP65 (Outdoors)
    Cooling method	Forced air cooling
    Communication interface (optional)	RS485/USB/GPRS/WIFI/Ethernet


    Product Details



    System Solution



    Greef has a professional team to create a tailor-made system for customers, this picture is an example, if you have other
    requirements, please contact us!
