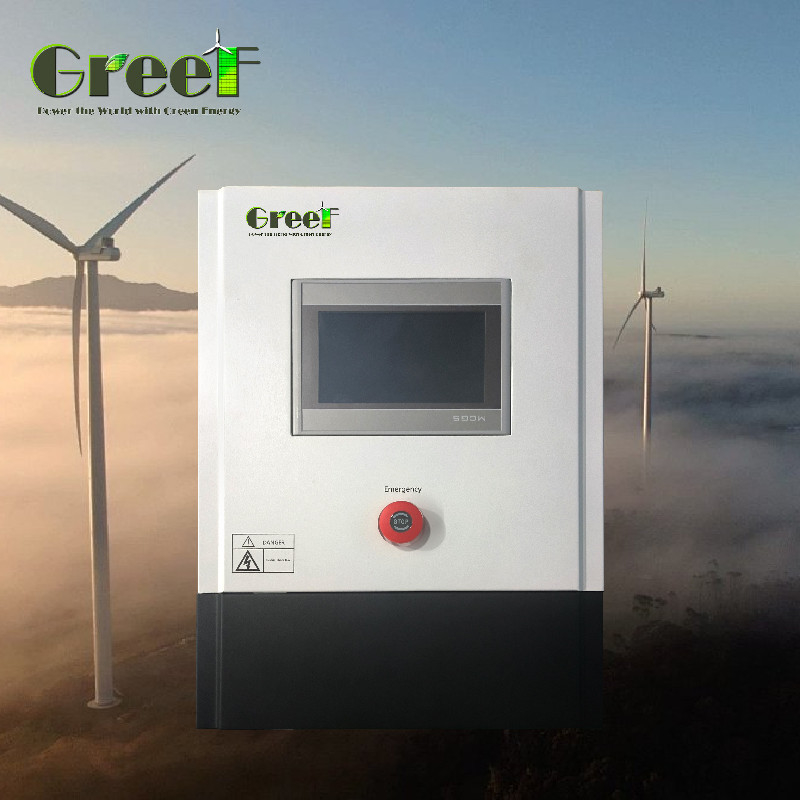

Name: 10kw Hybrid Wind Solar System With On Grid Controller For Home / Commerical
Brand: Qingdao Greef New Energy Equipment Co., Ltd
SKU: GT-PCTC
Price: 1,730.00 USD
Availability: InStock

Home > Products > On Grid Controller >

10kw Hybrid Wind Solar System With On Grid Controller For Home / Commerical

10kw on grid controller

Home on grid controller

Commerical on grid controller

Place of Origin:

China

Brand Name:

GreeF

Certification:

Model Number:

GT-PCTC

Request A Quote

10kw Hybrid Wind Solar System With On Grid Controller For Home / Commerical

Product Details

Display:

LCD Screen

System Solution:

Greef Has A Professional Team To Create A Tailor-made System For Customers, This Picture Is An Example, If You Have Other Requirements, Please Contact Us!

Environment Temperature:

-30-60°C

Noise (1m):

＜40dB

Color:

White And Black

PWM Constant Voltage:

≥400dc, ≥700dc

Output Type:

Highlight:

10kw on grid controller

Home on grid controller

Commerical on grid controller

Payment & Shipping Terms

Minimum Order Quantity

1 Set

Price

Negotiable

Packaging Details

Carton or Plywooden Case

Delivery Time

5-20 working days

Payment Terms

T/T, Western Union, L/C

Supply Ability

Ground Fault Monitoring On Grid Controller With AC Voltage Working Range 150V 550 Designed For And Solar Energy Integration

Get Best Price

700kw Hybrid Convertor Featuring Intelligent Air Cooling and Maximum Efficiency 95 Designed for Solar Power Conversion

Get Best Price

Video

150V to 550V AC voltage working range touch screen display featuring ground fault monitoring suitable for smart applications Hybrid Convertor

Get Best Price

Video

Hybrid Convertor On Grid Controller with Maximum Efficiency 95 Percent AC Voltage Working Range 150V 550V and Solar Power Solution

Get Best Price

Contact Now

Product Description

10kw Hybrid Wind Solar System With On Grid Controller For Home / Commerical 0

Product Introduction

Grid-Tied Controller is technologically the most important component in wind generator on-grid systems, which convert Three AC current from wind turbine into DC current then send to the grid-tie invertor.
GT-PCTC series wind professional grid-tied controller which have Double safety control systems:PWM constant voltage system and three-phase dump load brake system, It can control Solis solar invertor working then let the solar invertor suitable for wind turbine working condition.

Product Parameters

Type	GT-PCTC-1.5KW	GT-PCTC-2KW	GT-PCTC-3KW	GT-PCTC-5KW
Wind turbine rated power	1.5KW	2KW	3KW	5KW
Wind turbine rated voltage	AC220V-240V	AC220V-240V	AC220V-380V	AC380-450V
Function	Rectifier,Control,DC output
Automatic protection function	Over voltage protection, Grid cut off protection, Regulated supply output, Arrester
Manual function	Manual brake, Reset, Emergency switch
Display mode	LCD Touch Screen
Display content (larger one)	Generator speed(rpm),Input voltage (Vdc), Input current(Vac) ,Output power(kW), Grid voltage (Vac),Grid current(A), Power generate today(kWh),Power generate this month, Power generate last month, Power generate this year, Power generate last year,Power Curve setting.
3-phase dump load time-lapse	12-20 min	12-20 min	12-20 min	12-20 min
Wind turbine 3-phase dump load voltage	450±5Vdc			750±5Vdc
PWM constant voltage	≥400dc			≥700dc
Environment temperature	-30-60°C
Relative humidity	＜90% No condensation
Noise (1m)	＜40dB
Degree of protection	IP20(Indoor) IP65 (Outdoors)
Cooling method	Forced air cooling
Communication interface (optional)	RS485/USB/GPRS/WIFI/Ethernet

Type	GT-PCTC-10KW	GT-PCTC-20KW	GT-PCTC-30KW
Wind turbine rated power	10KW	20KW	30KW
Wind turbine rated voltage	AC380-520V
Function	Rectifier,Control,DC output
Automatic protection function	Over voltage protection, Grid cut off protection, Regulated supply output, Arrester
Manual function	Manual brake, Reset, Emergency switch
Display mode	LCD Touch Screen
Display content (larger one)	Generator speed(rpm),Input voltage (Vdc), Input current(Vac) ,Output power(kW), Grid voltage (Vac),Grid current(A), Power generate today(kWh),Power generate this month, Power generate last month, Power generate this year, Power generate last year,Power Curve setting.
PWM constant voltage	≥700dc
Wind turbine 3-phase dump load voltage	750±5Vdc
Wind turbine 3-phase dump load time-lapse	12-20 min
Environment temperature	-30-60°C
Relative humidity	＜90% No condensation
Noise (1m)	＜40dB
Degree of protection	IP20(Indoor) IP65 (Outdoors)
Cooling method	Forced air cooling
Communication interface (optional)	RS485/USB/GPRS/WIFI/Ethernet

10kw Hybrid Wind Solar System With On Grid Controller For Home / Commerical 1

Product Details

10kw Hybrid Wind Solar System With On Grid Controller For Home / Commerical 2

System Solution

10kw Hybrid Wind Solar System With On Grid Controller For Home / Commerical 3

Greef has a professional team to create a tailor-made system for customers, this picture is an example, if you have other
requirements, please contact us!

Product packaging

10kw Hybrid Wind Solar System With On Grid Controller For Home / Commerical 4

Why Choose Us

FAQ:

Q: What is the brand name of the On Grid Controller?

A: The brand name of the On Grid Controller is GreeF.

Q: What is the model number of the On Grid Controller?

A: The model number of the On Grid Controller is GT-PCTC.

Q: Is the On Grid Controller CE certified?

A: Yes, the On Grid Controller is CE certified.

Q: Where is the On Grid Controller manufactured?

A: The On Grid Controller is manufactured in China.

Q: What are the accepted payment terms for purchasing the On Grid Controller?

A: The accepted payment terms for purchasing the On Grid Controller are T/T, Western Union, and L/C.

Q: What is the minimum order quantity for the On Grid Controller?

A: The minimum order quantity for the On Grid Controller is 1 set.

Q: What is the delivery time for the On Grid Controller?

A: The delivery time for the On Grid Controller is 5-20 working days.

Q: What are the packaging details for the On Grid Controller?

A: The packaging details for the On Grid Controller are carton or plywooden case.

Q: Is the price for the On Grid Controller negotiable?

A: Yes, the price for the On Grid Controller is negotiable.

Q: What is the supply ability for the On Grid Controller?

A: The supply ability for the On Grid Controller is 5.
