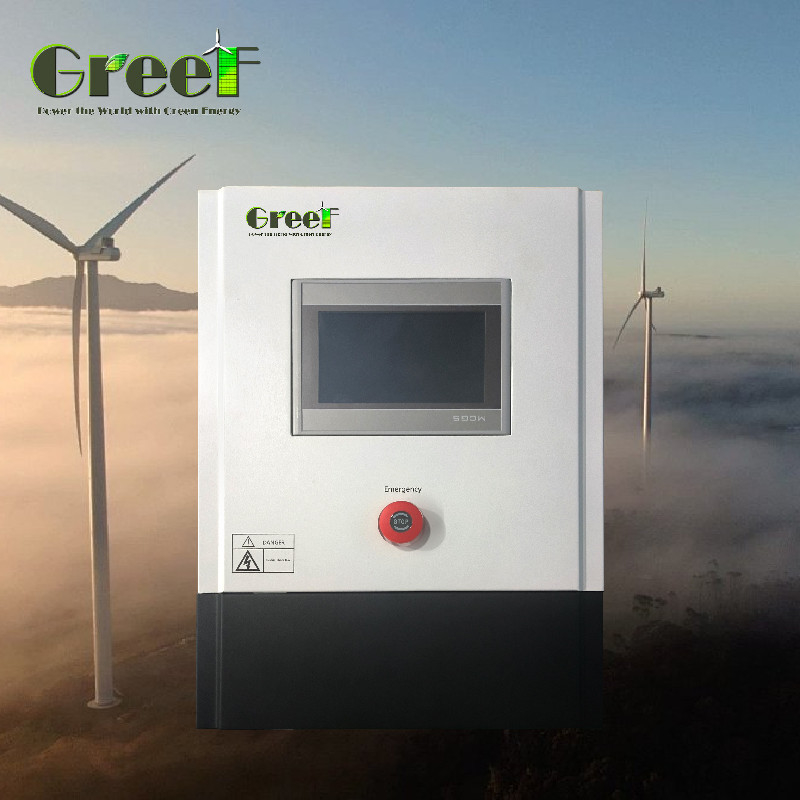

Protection Function On Grid Controller IP54 For Wind Turbine System Use 3kw 10kw 5kw

Type	GT-PCTC-10KW	GT-PCTC-20KW	GT-PCTC-30KW
Wind turbine rated power	10KW	20KW	30KW
Wind turbine rated voltage	AC380-520V
Function	Rectifier,Control,DC output
Automatic protection function	Over voltage protection, Grid cut off protection, Regulated supply output, Arrester
Manual function	Manual brake, Reset, Emergency switch
Display mode	LCD Touch Screen
Display content (larger one)	Generator speed(rpm),Input voltage (Vdc), Input current(Vac) ,Output power(kW), Grid voltage (Vac),Grid current(A), Power generate today(kWh),Power generate this month, Power generate last month, Power generate this year, Power generate last year,Power Curve setting.
PWM constant voltage	≥700dc
Wind turbine 3-phase dump load voltage	750±5Vdc
Wind turbine 3-phase dump load time-lapse	12-20 min
Environment temperature	-30-60°C
Relative humidity	＜90% No condensation
Noise (1m)	＜40dB
Degree of protection	IP20(Indoor) IP65 (Outdoors)
Cooling method	Forced air cooling
Communication interface (optional)	RS485/USB/GPRS/WIFI/Ethernet



Product Details

System Solution

Greef has a professional team to create a tailor-made system for customers, this picture is an example, if you have other
requirements, please contact us!

Product packaging



Why Choose Us

Features:

• Product Name: On Grid Controller
• Automatic protection function: Over voltage protection, Grid cut off protection, Regulated supply output, Arrester
• Certification: CE
• Environment temperature: -30-60°C
• Degree of protection: IP20(Indoor) IP65 (Outdoors)
• Display: LCD Screen

This On Grid Controller is a high-quality CNC Controller Board that also functions as a Controller Board for Arduino. With its Axis Joystick Controller, this product provides accurate and reliable control for your projects.

Technical Parameters:

This On Grid Controller product is suitable for wind turbines and comes with automatic protection functions such as over voltage protection, grid cut off protection, regulated supply output, and arrester. It has a degree of protection of IP20 for indoor use and IP65 for outdoor use. The PWM constant voltage is greater than or equal to 400dc and 700dc. It uses forced air cooling and is available in white and black color options. It can be packaged in a carton or plywood case. This product is an AC to DC converter and is ideal for use with DCS distributed control systems, industrial electric controls, and generator control panels.
