3 Phase AC Permanent Magnet Generator With Higher Reliability And IP 54 Portection Grade

3 Phase AC Permanent Magnet Generator With Higher Reliability And IP 54 Portection Grade

Higher Reliability Permanent Magnet Generator

3 Phase Permanent Magnet Generator

AC Permanent Magnet Generator

Place of Origin:

Qingdao

Brand Name:

Greef

Certification:

CE

Model Number:

GDG

Contact Us
Request A Quote
Product Details
Phase Type:
3
Voltage Range:
12-450V
Generator Material:
Aluminum Alloy
Power:
0.1kw-20kw
Speed:
100-500RPM
Start Torque:
<1 N/M
Poles:
16-20
Generator Type:
3 Phase AC Permanent Magnet
Payment & Shipping Terms
Minimum Order Quantity
1Set
Price
Negotiable
Packaging Details
Foam+plywooden case
Delivery Time
25 working days
Payment Terms
T/T, Western Union, MoneyGram, L/C
Supply Ability
Supply Ability
Product Description
Model GDG-0.5KW-200 GDG-1KW-180 GDG-1KW-200 GDG-2KW-120 GDG-2KW-180
Rated Power 0.5KW 1KW 1KW 2KW 2KW
Rated Rotate Speed 200 RPM 180RPM 200RPM 120RPM 180RPM
Rated Voltage 56VAC 56VAC 56VAC 115VAC 115VAC
Rated Current 9A 12A 17.9A 10A 17.4A
Efficiency >85%
Wending Method Y
Insulating Resistance 100Mohm Min(500V DC)
Leakage Level <5 ma
Start Torque <0.1N/M <0.3 N/M <0.3 N/M <0.5 N/M <0.3 N/M
Phase Type 3 Phase
Structure Out rotor
Stator Coreless wire coil
Rotor Rare Earth Permanent Magnet
Generator Shell Diameter 320 380 380 550 450
Generator Shell Length 232 241 241 330 258
Weight 20 32 32 75 51
Shaft drameter 45 50 50 78 59
Generator shell material Aluminum alloy
Shaft material Carbon steel
Bearing Deep groove ball bearing







Model GDG-3KW-100 GDG-3KW-180 GDG-5KW-100 GDG-5KW-150 GDG-10KW-100
Rated Power 3KW 3KW 5KW 6KW 10KW
Rated Rotate Speed 100RPM 180RPM 100RPM 150RPM 100RPM
Rated Voltage 380VAC 380VAC 380VAC 380VAC 400VAC
Rated Current 4.6 4.7 7.6 15.2 14.5
Efficiency >85% >85% >88% >88% >88%
Wending Method Y Y Y Y Y
Insulating Resistance 100Mohm Min(500V DC) 100Mohm Min(500V DC) 100Mohm Min(500V DC) 100Mohm Min(500V DC) 100Mohm Min(501V DC)
Leakage Level <5 ma <5 ma <5 ma <5 ma <5 ma
Start Torque <1 N/M <0.5 N/M <0.5 N/M <1 N/M <1N/M
Phase Type 3 Phase 3 Phase 3 Phase 3 Phase 3 Phase
Structure Out rotor Out rotor Out rotor Out rotor Out rotor
Stator Coreless wire coil Coreless wire coil Coreless wire coil Coreless wire coil Coreless wire coil
Rotor Rare Earth Permanent Magnet Rare Earth Permanent Magnet Rare Earth Permanent Magnet Rare Earth Permanent Magnet Rare Earth Permanent Magnet
Generator Shell Diameter 620 550 700 620 770
Generator Shell Length 410 330 400 410 590
Weight 110 65 125 110 245
Shaft drameter 80 78 98 80 85
Generator shell material Aluminum alloy Aluminum alloy Aluminum alloy Aluminum alloy Aluminum alloy
Shaft material Carbon steel Carbon steel Carbon steel Carbon steel Carbon steel
Bearing Deep groove ball bearing Deep groove ball bearing Deep groove ball bearing Deep groove ball bearing Deep groove ball bearing



Drawing Sample

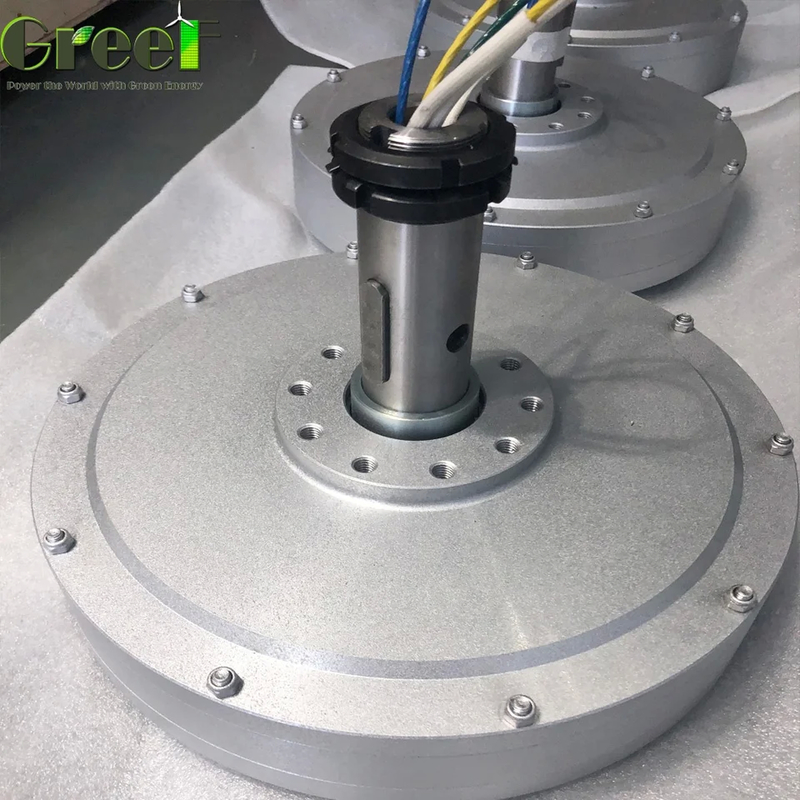

500w to 20kw low rpm disc coreless permanent magnet generator

500w to 20kw low rpm disc coreless permanent magnet generator



Pictures

500w to 20kw low rpm disc coreless permanent magnet generator

500w to 20kw low rpm disc coreless permanent magnet generator


Packaging & Shipping

1. Generator use inner foam protection outer Plywooden case .Generator shaft use pipe protection.

2.Pakage size and weight please refer to our sales.

3.Shipping by sea with FCL LCL or by air .

If you have any request in package and shipping please tell our sales we will do according to your request.

500w to 20kw low rpm disc coreless permanent magnet generator

Product Description:

An axial flux ironless core generator is a type of generator that utilizes an axial flux design and an ironless core structure to generate electrical energy. Unlike conventional generators, it avoids significant losses due to iron core losses and hysteresis losses.

Permanent magnets, coils, and casing are the key components of this type of generator. The permanent magnets play a vital role in generating a magnetic field, while the coils are responsible for converting the energy from the magnetic field into electrical energy. The casing provides structural support to the generator and also protects its components from damage.

The principle of electromagnetic induction serves as the basis for the operation of axial flux coreless generators. When the magnetic field created by a permanent magnet moves relative to a conductor within a coil, an electromotive force is induced in the conductor. This electromotive force can be used to generate electrical energy, which can then be used to power external devices.



Applications:

Wind power generation is one area where axial flux coreless generators have shown great potential. Megawatt-class wind turbines can benefit greatly from these generators as they increase the output density, leading to a more efficient power generation process.

The absence of an iron core in these generators results in a reduction in iron losses and hysteresis losses, thereby making the generator more efficient. This makes axial flux coreless generators ideal for usage in renewable energy applications such as solar and wind power generation systems.

Besides renewable energy, these generators can also be used in a variety of other industrial applications. They are efficient, lightweight, and provide a reliable power supply and can be used as backup or auxiliary power sources to provide stable power support to industrial equipment.

Another advantage of axial flux ironless core generators is that they can be customized to meet specific customer needs. Parameters such as generator power, speed, and output voltage can be adjusted according to the needs of different applications, making them an even more versatile choice.



Customization:

Our generators have a start torque of less than 1 N/M and a protection grade of IP 54, ensuring durability and reliability. With large output power, our generators are perfect for a variety of applications.

We offer a minimum order quantity of 1 set and negotiable prices, with packaging details of foam+plywooden case. Our delivery time is 25 working days and we accept payment terms of T/T, Western Union, MoneyGram, and L/C. We have a strong supply ability to meet your needs.

Our Coreless Permanent Magnet Generator is also CE certified, ensuring quality and safety. Contact us today to customize your generator to your exact specifications.



Packing and Shipping:

Product Packaging:

  • 1 Coreless Permanent Magnet Generator
  • Instruction Manual
  • Warranty Card

Shipping:

  • Ships within 1-2 business days
  • Free Shipping within the United States
  • International Shipping available for an additional fee
