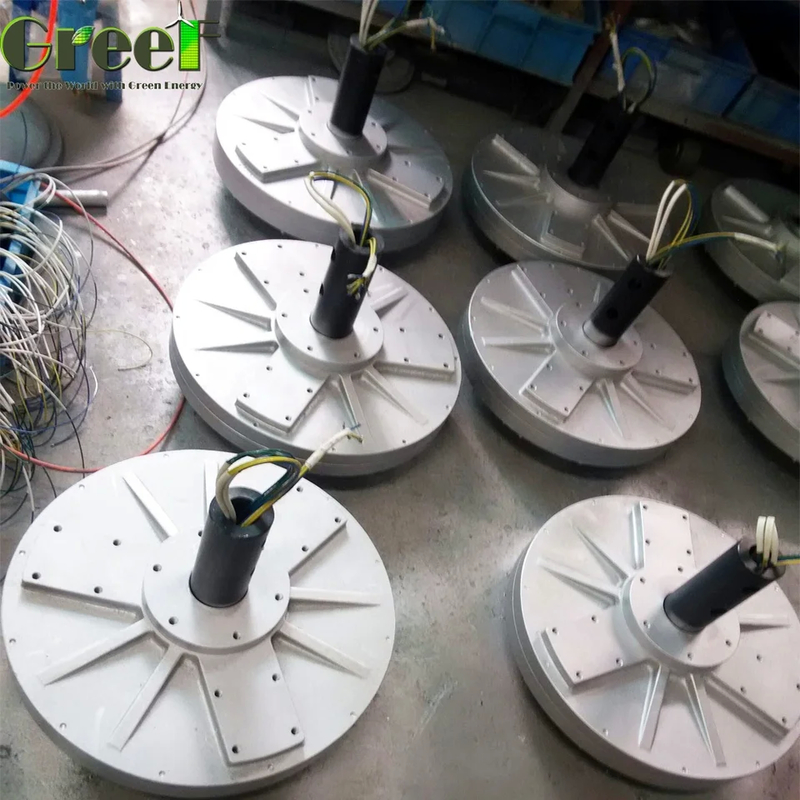

Start Torque 1 N/M Multi Poles Generator with Aluminum Alloy Material

Start Torque 1 N/M Multi Poles Generator with Aluminum Alloy Material

1 N/M Multi-Poles Generator

Multi-Poles Generator

Aluminum Alloy Multi-Poles Generator

Place of Origin:

Qingdao

Brand Name:

Greef

Certification:

CE

Model Number:

GDG

Contact Us
Request A Quote
Product Details
Structure:
Outer Rotor/inner Rotor
Power:
0.1kw-20kw
Speed:
100-500RPM
Poles:
16-20
Start Torque:
<1 N/M
Portection Grade:
IP 54
Phase Type:
3
Generator Type:
3 Phase AC Permanent Magnet
Payment & Shipping Terms
Minimum Order Quantity
1Set
Price
Negotiable
Packaging Details
Foam+plywooden case
Delivery Time
25 working days
Payment Terms
T/T, Western Union, MoneyGram, L/C
Supply Ability
Supply Ability
Product Description

Product Description:

The term “axial flux ironless core generator” refers to a type of generator that features a design utilizing both an axial flux and an ironless core structure. This generator is used to produce electricity by utilizing axial magnetic flux as opposed to the iron core losses and hysteresis losses commonly experienced by conventional generators.

The structure of an axial flux ironless core generator is usually made up of permanent magnets, coils, and a casing. The magnets are responsible for creating the magnetic field, while the coils capture the energy in that field, and convert it into electrical energy. The casing of the generator serves to protect its internal structure, as well as provide it with a sturdy support.

How does the axial flux ironless core generator work exactly? The principle is based on electromagnetic induction, which is the production of an electromotive force by a moving magnetic field around a conductor. In the case of this generator, the permanent magnet's magnetic field moves relative to the conductor in the coil, generating an induced electromotive force. This electromotive force can then be converted into electrical energy, and supplied to power external devices.



Applications:

Wind Power Generation

Axial flux coreless generators are a promising solution for wind power generation, especially in megawatt-class wind turbines. These generators can significantly increase the output density, leading to greater efficiency in wind power generation. The absence of an iron core reduces iron losses and hysteresis losses, making these generators more efficient.

Renewable Energy

Axial flux coreless generators have a wide range of applications in renewable energy systems, including solar and wind power generation. Their high energy conversion capability and reliable operation make them an ideal choice for renewable energy generation systems.

Other Industrial Applications

Axial flux coreless generators are versatile and can be used in other industrial applications that require efficient, lightweight, and reliable power supply. For example, they can be used as backup or auxiliary power sources to provide stable support to industrial equipment.

Customized Applications

Axial flux coreless generators have a flexible design that enables customization to meet specific customer needs. Parameters such as generator power, speed and output voltage can be adjusted to suit different application scenarios, making them a versatile solution for different industries.



Customization:

Product Customization Services:

Brand Name: Greef

Model Number: GDG

Place of Origin: Qingdao

Certification: CE

Minimum Order Quantity: 1Set

Price: Negotiable

Packaging Details: Foam+plywooden case

Delivery Time: 25 working days

Payment Terms: T/T, Western Union, MoneyGram, L/C

Supply Ability: Supply Ability

Start Torque: <1 N/M (low start torque)

Poles: 16-20

Structure: Outer Rotor/inner Rotor

Portection Grade: IP 54

Generator Material: Aluminum Alloy

Product features: high power density, large output power


Model GDG-0.5KW-200 GDG-1KW-180 GDG-1KW-200 GDG-2KW-120 GDG-2KW-180
Rated Power 0.5KW 1KW 1KW 2KW 2KW
Rated Rotate Speed 200 RPM 180RPM 200RPM 120RPM 180RPM
Rated Voltage 56VAC 56VAC 56VAC 115VAC 115VAC
Rated Current 9A 12A 17.9A 10A 17.4A
Efficiency >85%
Wending Method Y
Insulating Resistance 100Mohm Min(500V DC)
Leakage Level <5 ma
Start Torque <0.1N/M <0.3 N/M <0.3 N/M <0.5 N/M <0.3 N/M
Phase Type 3 Phase
Structure Out rotor
Stator Coreless wire coil
Rotor Rare Earth Permanent Magnet
Generator Shell Diameter 320 380 380 550 450
Generator Shell Length 232 241 241 330 258
Weight 20 32 32 75 51
Shaft drameter 45 50 50 78 59
Generator shell material Aluminum alloy
Shaft material Carbon steel
Bearing Deep groove ball bearing







Model GDG-3KW-100 GDG-3KW-180 GDG-5KW-100 GDG-5KW-150 GDG-10KW-100
Rated Power 3KW 3KW 5KW 6KW 10KW
Rated Rotate Speed 100RPM 180RPM 100RPM 150RPM 100RPM
Rated Voltage 380VAC 380VAC 380VAC 380VAC 400VAC
Rated Current 4.6 4.7 7.6 15.2 14.5
Efficiency >85% >85% >88% >88% >88%
Wending Method Y Y Y Y Y
Insulating Resistance 100Mohm Min(500V DC) 100Mohm Min(500V DC) 100Mohm Min(500V DC) 100Mohm Min(500V DC) 100Mohm Min(501V DC)
Leakage Level <5 ma <5 ma <5 ma <5 ma <5 ma
Start Torque <1 N/M <0.5 N/M <0.5 N/M <1 N/M <1N/M
Phase Type 3 Phase 3 Phase 3 Phase 3 Phase 3 Phase
Structure Out rotor Out rotor Out rotor Out rotor Out rotor
Stator Coreless wire coil Coreless wire coil Coreless wire coil Coreless wire coil Coreless wire coil
Rotor Rare Earth Permanent Magnet Rare Earth Permanent Magnet Rare Earth Permanent Magnet Rare Earth Permanent Magnet Rare Earth Permanent Magnet
Generator Shell Diameter 620 550 700 620 770
Generator Shell Length 410 330 400 410 590
Weight 110 65 125 110 245
Shaft drameter 80 78 98 80 85
Generator shell material Aluminum alloy Aluminum alloy Aluminum alloy Aluminum alloy Aluminum alloy
Shaft material Carbon steel Carbon steel Carbon steel Carbon steel Carbon steel
Bearing Deep groove ball bearing Deep groove ball bearing Deep groove ball bearing Deep groove ball bearing Deep groove ball bearing



Drawing Sample





500w to 20kw low rpm disc coreless permanent magnet generator

500w to 20kw low rpm disc coreless permanent magnet generator



Pictures

500w to 20kw low rpm disc coreless permanent magnet generator

500w to 20kw low rpm disc coreless permanent magnet generator


Packaging & Shipping

1. Generator use inner foam protection outer Plywooden case .Generator shaft use pipe protection.

2.Pakage size and weight please refer to our sales.

3.Shipping by sea with FCL LCL or by air .

If you have any request in package and shipping please tell our sales we will do according to your request.

500w to 20kw low rpm disc coreless permanent magnet generator

Packing and Shipping:

Product Packaging:

  • The Coreless Permanent Magnet Generator will be packaged securely to prevent any damage during shipping.
  • The package will include the generator, user manual, and any necessary hardware for installation.
  • The dimensions of the package will be [insert dimensions here] and the weight will be [insert weight here].

Shipping:

  • The Coreless Permanent Magnet Generator will be shipped via [insert shipping method here] to the customer's provided address.
  • Shipping times may vary depending on the customer's location.
  • The customer will be provided with a tracking number once the product has been shipped.
