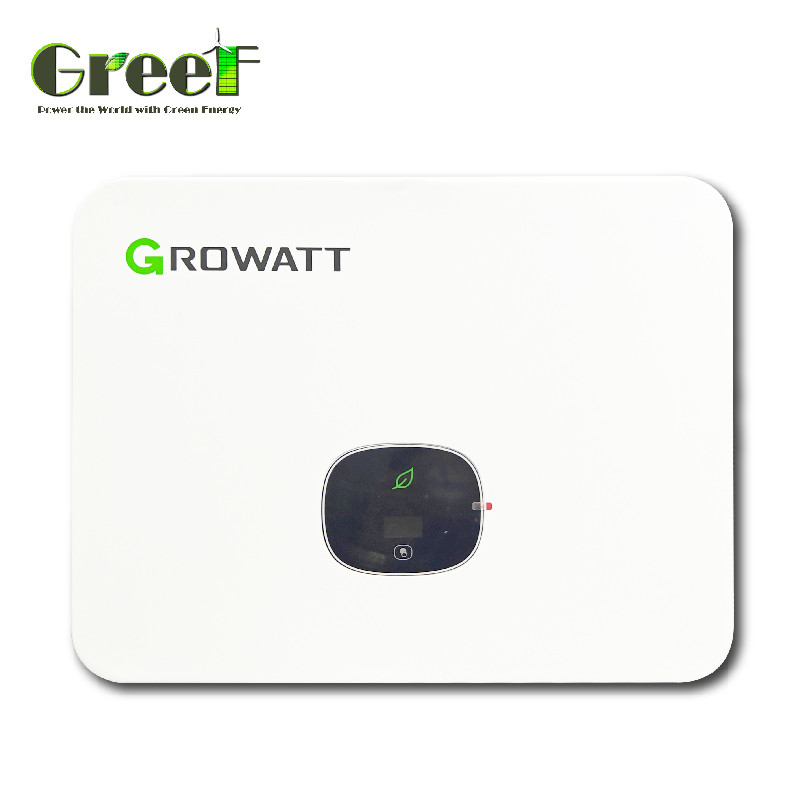

Name: Low Noise 220V Grid Connected Inverter Stable Output Voltage
Brand: Qingdao Greef New Energy Equipment Co., Ltd
SKU: 5kw 10kw 20kw
Price: 12999.00 USD
Availability: InStock

Home > products > On Grid Inverter >

Low Noise 220V Grid Connected Inverter Stable Output Voltage

Stable Output Voltage Grid-Connected Inverter

220V Grid-Connected Inverter

Low Noise Grid-Connected Inverter

Place of Origin:

Qingdao

Brand Name:

Greef

Certification:

Model Number:

5kw 10kw 20kw

Request A Quote

Low Noise 220V Grid Connected Inverter Stable Output Voltage

Product Details

Efficiency:

95%

Power:

2KW

Output Waveform:

Pure Sine Wave

Frequency:

50Hz

Humidity:

0-90%RH

Product Name:

On Grid Inverter

Cooling Method:

Air Cooling

Noise:

≤50dB

Payment & Shipping Terms

Minimum Order Quantity

1Set

Price

Negotiable

Packaging Details

Foam+plywooden case

Delivery Time

25 working days

Payment Terms

T/T, Western Union, MoneyGram, L/C

Supply Ability

100KW 230KW Three Phase Grid Tied Inverter For Solar System

Get Best Price

15KW 50KW 100KW 230KW High Efficiency PV Grid Tied Inverter For Home

Get Best Price

3KW 5KW 10KW 15KW PV Grid Tied Solar Inverter For Household

Get Best Price

5KW 10KW 15KW 50KW 100KW 230KW Grid Tied Inverter For Solar System

Get Best Price

Contact Now

Product Description

Product Description:

When it comes to solar power systems, the photovoltaic panels generate DC power, while household and industrial power systems require AC power for consumption. Therefore, an inverter is necessary to convert this DC power into AC power to meet the power needs of the users.

In addition to DC to AC conversion, the inverter also plays a crucial role in injecting the converted AC into the grid to connect the solar power system to the grid. This ensures that the solar power system is not only generating clean energy, but also sharing it with the local grid, which ultimately contributes to a more sustainable energy supply.

By connecting multiple solar panels in parallel or series, the inverter can optimize the way the panels are combined, thus improving the power generation efficiency of the solar power system. This parallel and series connection configuration can help maximize the use of solar energy resources and improve the overall performance of the solar power system.

Another important function of the inverter is monitoring and protection. It is able to monitor the output power of the solar panels and regulate their output voltage and frequency. This ensures efficiency and safety of the system. Moreover, the inverter also has a protection mechanism that cuts off the power supply in case of grid failure or abnormal situations. This function protects the solar power generation system from damage and ensures its longevity.

Advantage

MAC 15~36KTL3-XL

※ 3 MPPTS

※ 220V Three Phase Solution

※ Smart diagnosis

※ High efficiency up to 98.8%

※ Local WiFi configuration

※ OLED display and touch button

※ AC&DC type ll SPD

MID 6~12KTL3-XL

※ Max.efficiency98.5%

※ 40% compact andlighter

※ Dual MPp trackers

※ Supports export control

※ Touch key and OLED display

※ Type ll SPD on AC and DC side

MAX 50~75KTL3-XL 2

※ 8 MPPTs y diseno sin fusibles

※ Escaneo y diagnóstico inteligente de l/V

※ Monitoreo inteligente de cadenas

※ SPD tipo ll de CA y CC

※ Protección lP66 y C5

MAX 50~80KTL3 LV

※ 6/7MPPTSSmart diagnosis ※ High efficiency up to 99% ※ Local WlFl connection ※ String monitoring ※ AC&DC type II SPD ※ AFCl protection ※ Data storage up to 25 years ※ DC side 2 in 1 connection enabled

MIN 7000~10000 TL-X

※ Maximum efficiency 98.1%2/3 MPP trackers
※ Type ll SPD on DC side
※ Supports export control
※ Touch key and OLED display

Product Parameter

Datasheet	MID 6KTL3-XL	MID 8KTL3-XL	MID 10KTL3-XL	MID 11KTL3-XL	MID 12KTL3-XL
Input Data
Max.DC power	65000W	10400W	13000W	13000W	15600W
Max.DC voltage	800V
Initial voltage	250V
MPPT voltage range	160-800V
Nominal voltage	360V
Max. input current per MPPT	25A
Output (AC)
Rated AC output power	6000W	8000W	10000W	11000W	12000W
Max. AC apparent power	6600VA	8800VA	11100VA	12100VA	13300VA
Max. output current	16.5A	22.1A	27.8A	30.3A	30.3A
AC nominal voltage	133V/230V
AC grid frequency	50Hz/60Hz
Max.efficiency	98.8%

Datasheet	MIN 7000TL-X(E)	MIN 8000TL-X(E)	MIN 9000TL-X	MIN 10000TL-X
Input Data
Max.DC power	12000W	12000W	13500W	15000W
Max.DC voltage	600V
Start voltage	100V
MPPT voltage range	60-550V
Nominal voltage	360V
Max. input current per MPPT	13.5A/27A
Output (AC)
Rated AC output power	7000W	8000W	9000W	10000W
Max. AC apparent power	7000VA	8000VA	9000VA	10000VA
Max. output current	33.5A	33.5A	43A	45.5A
Nominal AC voltage(range*)	Default:240V split-phase, optional:208V & 240V single phase , 183-228@208V 211-264V@240V
AC grid frequency(range*)	50/60 Hz (45-55Hz/55-65 Hz)
Max.efficiency	98.1%

Datasheet	MAC 15KTL3-XL	MAC 20KTL3-XL	MAC 22KTL3-XL	MAC 25KTL3-XL	MAC 30KTL3-XL	MAC 36KTL3-XL
Input Data
Max. recommended PV power (for module STC)	22500W	30000W	33000W	37500W	45000W	54000W
Max.DC voltage	1100V
Initial voltage	250V
MPPT voltage range	200V-1000V
Nominal voltage	360V
Max. input current per MPPT	52A/52A/52A
Output (AC)
Rated AC output power	15000W	20000W	22000W	25000W	30000W	36000W
Max. AC apparent power	16600VA@220VAC	22200VA@220VAC	24400VA@220VAC	27800VA@220VAC	33300VA@220VAC	36000VA@220VAC 39200VA@240VAC
Max. output current	43.6A	58.3A	64.0A	73.0A	87.4A	94.5A
Nominal AC voltage(range*)	127V/220V(101.6-139.7V)
AC grid frequency(range*)	50/60 Hz(46~54/56~64Hz)
Max.efficiency	98.8%

Hoja de datos	MAX 50KTL3-XL2	MAX 60KTL3-XL2	MAX 70KTL3-XL2	MAX 75KTL3-XL2
Datos de entrada (CD)
Max.DC power	100000W	120000W	105000W	112500W
Rango de potencia máxima*	370-650V
Voltaje de arranque	195V
Voltaje nominal	550V
Rango de voltaje de MPPT	180V-850VDC
Máxima corriente por MPPT	40A
Salida (CA)
Potencia nominal CA	50000W	60000W	70000W	75000W
Potencia aparente máxima	55500VA	66600VA	66000VA @208V 70000VA @220V 73000VA @230V	71000VA @208V 75000VA @220V 78400VA @230V
Voltaje nominal CA (Rango*)	127V/220V (101.6-139.7V)
Voltaje nominal CA (Rango*)	127V/220V (101.6-139.7V)
Frecuencia de red CA (Rango*)	50/60Hz (45~55Hz/55-65 Hz)
Máxima eficiencia	98.8%

Datasheet	MAX 50KTL3 LV	MAX 60KTL3 LV	MAX 70KTL3 LV	MAX 80KTL3 LV
Input Data
Max.DC power	65000W	78000W	91000W	104000W
Max.DC voltage	1100V	1100V	1100V	1100V
Start voltage	250V
MPPT voltage range	200V-1000V
Nominal voltage	585V	585V	600V	600V
Max. input current per MPPT	25A
Output (AC)
Rated AC output power	50000W	60000W	70000W	80000W
Max. AC apparent power	55500VA	66600VA	77700VA	88800VA
Max. output current	80.5A	96.6A	112.7A	128.8A
AC nominal voltage	230V/400V
AC grid frequency	50Hz/60Hz
Max.efficiency	98.8%	98.8%	99.9%	99.9%
