50Hz/60Hz Output Frequency On Grid Controller With LCD Touch Screen



Product Introduction

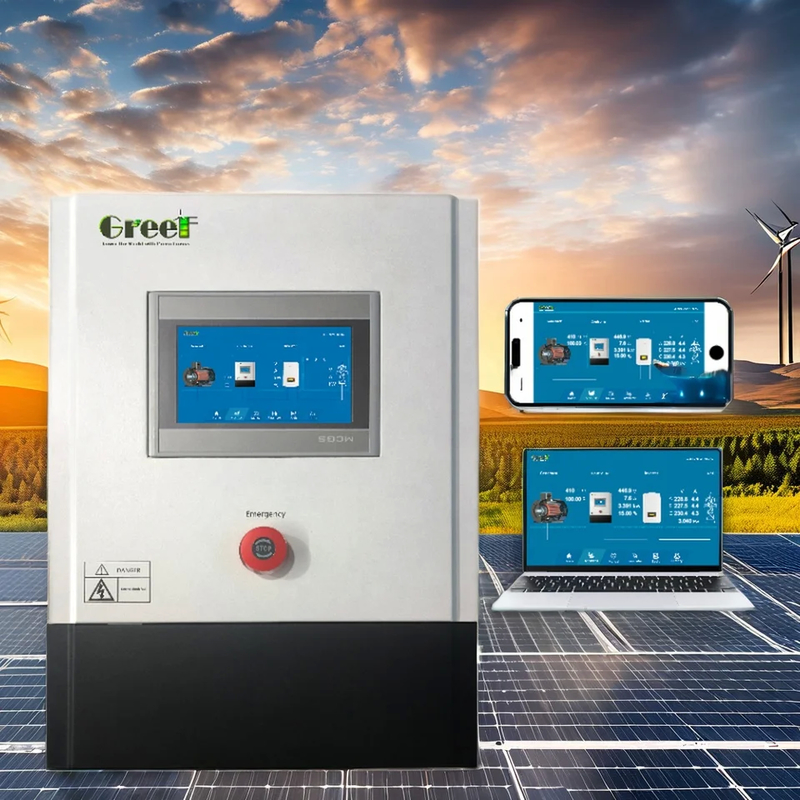

Grid-Tied Controller is technologically the most important component in wind generator on-grid systems, which convert Three AC current from wind turbine into DC current then send to the grid-tie invertor. GT-PCTC series wind professional grid-tied controller which have Double safety control systems: PWM constant voltage system and three-phase dump load brake system, This innovative solution also interfaces with solar inverters from brands like Growatt, Deye, Solis, and Ivet, enabling solar inverters to adapt to wind turbine operating conditions.

Product Parameters

Type	GT-PCTC-1.5KW	GT-PCTC-2KW	GT-PCTC-3KW	GT-PCTC-5KW
Wind turbine rated power	1.5KW	2KW	3KW	5KW
Wind turbine rated voltage	AC220V-240V	AC220V-240V	AC220V-380V	AC380-450V
Function	Rectifier,Control,DC output
Automatic protection function	Over voltage protection, Grid cut off protection, Regulated supply output, Arrester
Manual function	Manual brake, Reset, Emergency switch
Display mode	LCD Touch Screen
Display content (larger one)	Generator speed(rpm),Input voltage (Vdc), Input current(Vac) ,Output power(kW), Grid voltage (Vac),Grid current(A), Power generate today(kWh),Power generate this month, Power generate last month, Power generate this year, Power generate last year,Power Curve setting.
3-phase dump load time-lapse	12-20 min	12-20 min	12-20 min	12-20 min
Wind turbine 3-phase dump load voltage	450±5Vdc			750±5Vdc
PWM constant voltage	≥400dc			≥700dc
Environment temperature	-30-60°C
Relative humidity	＜90% No condensation
Noise (1m)	＜40dB
Degree of protection	IP20(Indoor) IP65 (Outdoors)
Cooling method	Forced air cooling
Communication interface (optional)	RS485/USB/GPRS/WIFI/Ethernet

Type	GT-PCTC-10KW	GT-PCTC-20KW	GT-PCTC-30KW	GT-ACDC-50KW	GT-ACDC-100KW
Wind turbine rated power	10KW	20KW	30KW	50KW	100KW
Wind turbine rated voltage	AC380-520V
Function	Rectifier,Control,DC output
Automatic protection function	Over voltage protection, Grid cut off protection, Regulated supply output, Arrester
Manual function	Manual brake, Reset, Emergency switch
Display mode	LCD Touch Screen
Display content (larger one)	Generator speed(rpm),Input voltage (Vdc), Input current(Vac) ,Output power(kW), Grid voltage (Vac),Grid current(A), Power generate today(kWh),Power generate this month, Power generate last month, Power generate this year, Power generate last year,Power Curve setting.
PWM constant voltage	≥700dc	≥700dc	≥700dc	≥700dc	≥700dc
Wind turbine 3-phase dump load voltage	750±5Vdc	750±5Vdc	750±5Vdc	750±5Vdc	750±5Vdc
Wind turbine 3-phase dump load time-lapse	12-20 min	12-20 min	12-20 min	12-20 min	12-20 min
Environment temperature	-30-60°C
Relative humidity	＜90% No condensation
Noise (1m)	＜40dB
Degree of protection	IP20(Indoor) IP65 (Outdoors)
Cooling method	Forced air cooling
Communication interface (optional)	RS485/USB/GPRS/WIFI/Ethernet
Size of the controller (mm)	550*395*270	600*500*1200	600*500*1200	930*580*430mm	1100*600*1800
Controller Weight	25Kg	66Kg	68Kg	50KG	406KG
Dump load Size (mm)	690*520*270	690*530*520	710*890*590	710*890*590	Dumpload built-in
Dump load Weight	45Kg	55Kg	55Kg	55Kg	Dumpload built-in

Product Details

System Solution

Product Description:

Grid-Tied Controller plays a vital role in wind generator on-grid systems. It is a technological component that converts Three AC current from the wind turbine into DC current, which is then sent to the grid-tie inverter.

The GT-PCTC series wind professional grid-tied controller is equipped with Double safety control systems. This controller has both PWM constant voltage system and three-phase dump load brake system, which ensures safety in case of any mishap. With this innovative solution, the controller can also interface with solar inverters from well-known brands like Growatt, Deye, Solis, and lvet. This feature enables solar inverters to adapt to wind turbine operating conditions.

Applications:

The GT-PCTC Series Controller is an AC to DC converter that is designed for use with grid-tied wind turbines. This product is ideal for monitoring wind turbine speed and wind speed, ensuring optimal performance and safety. The product is equipped with ground fault monitoring, making it an ideal solution for those who are looking for a wind controller that is both reliable and safe.

The GT-PCTC Series Controller is designed to operate in harsh environments with temperature ranges of -30-60°C. This makes it an ideal product for use in various weather conditions, ensuring that it can continue to operate optimally regardless of the external conditions. The wind turbine 3-phase dump load voltage of 750±5Vdc is designed to ensure that the product is compatible with most wind turbines.

Overall, the GT-PCTC Series Controller is a reliable and durable wind controller that is designed to meet the demands of a range of users. Whether you are looking for a product for personal or commercial use, this product is an ideal solution for those who are looking for a wind generator controller that is both reliable and efficient.
