Place of Origin:
QINGDAO
Brand Name:
GREEF
Certification:
CE
Model Number:
GH-1KW
Horizontal Wind Turbine Catalogue
Technical specification
| Model | GH-1KW |
| Performance | |
| Rated Power | 1000W |
| Max Power | 1500W |
| Start Wind Speed | 3m/s(6.72mph) |
| Rated Wind Speed | 12m/s(26.88mph) |
| Working Wind Speed | 4-25m/s(6.72-56 mph) |
| Safety Wind Speed | 50m/s(112mph) |
| Physical Parameters | |
| Blades Rotor Diameter | 8M(26.24ft) |
| Blades Material &Quantity | FRP /3PCS |
| Top Weight | 650kg |
| Tower Height | 12m(39.36ft.) Free folding tower |
| Generator Parameters | |
| Generator Type | Permanent Magnet Generator |
| Rated Speed | 200RPM |
| Option Voltage | 120-500VAC |
| Protection Method | Electromagnetic Brake +PWM |
| Protection Grade | IP54 |
| Working Temperature | -40-50℃ |
Model: 1KW Horizontal axis wind turbine |Off-grid system | Folding tower
Overview
GREEF GH-1KW wind generator is the conversion of wind energy into mechanical energy first and electric energy afterwards. This equipment can fully make use of wind power to recharge a battery, and also can saved energy into ac source alternating current. Without the necessity of fuel, the GH-1KW wind generator is pollution free and far away from noise. The GH-5KW wind generator is generally applicable to the area which has good condition but is far away from the power grid, or the power grid is not normal. The GH-1KW generator can supply lighting, the television set, the searchlight, the communication equipment, the power tool and other household appliances.
Recommended for:
· Household,Garden,Farm,Urban ,Rooftop
· Telecom sites.
· Rural electrification programs. Island , sentry, island, sight lighting
· Automatic speed reduction protection
Dimension
Power Curve
Annual Energy Production
This data will have ±10% difference according to real condition.
Automatic Speed Reduction Protection

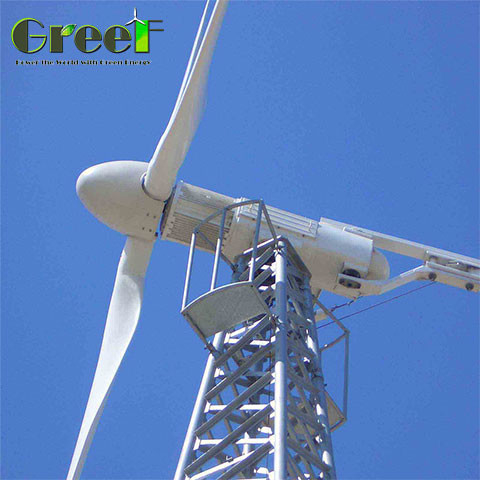

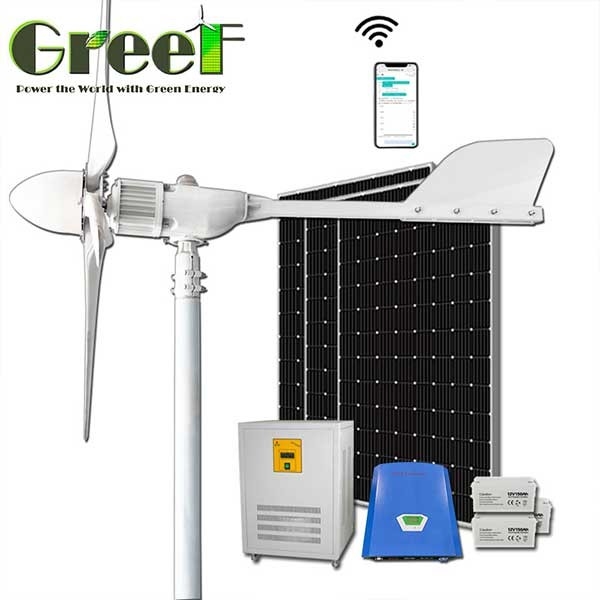

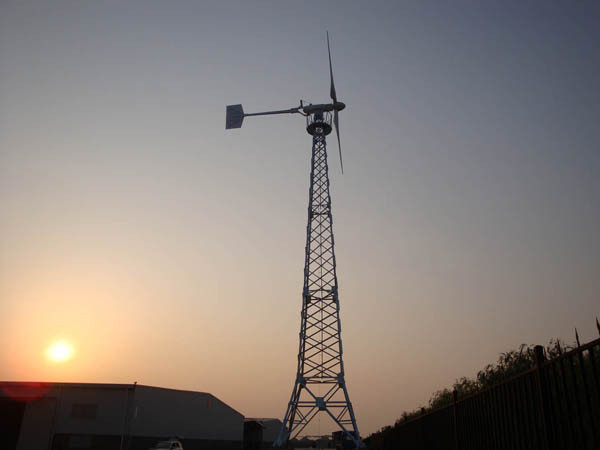

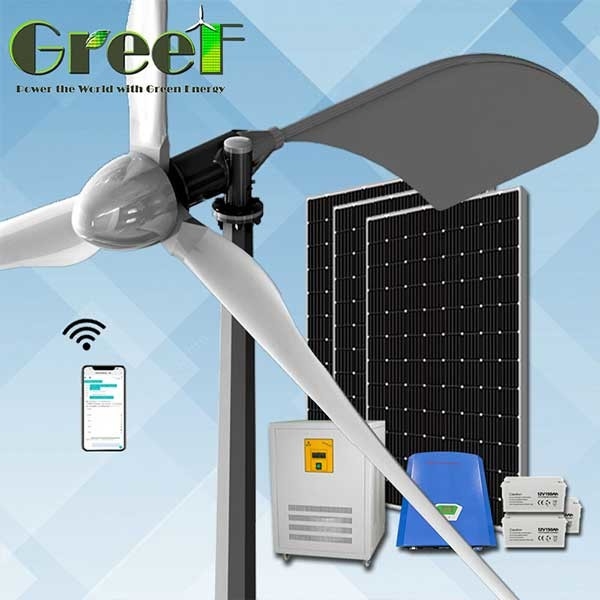

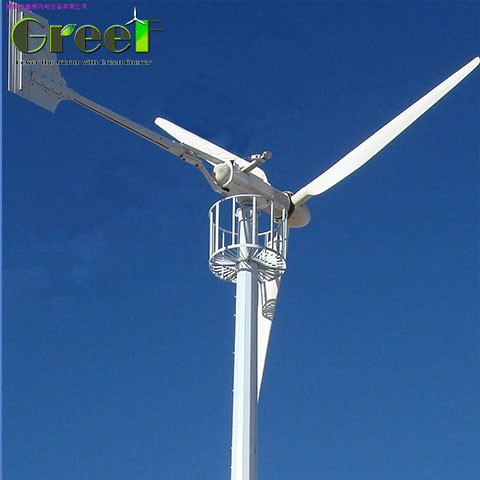

Pictures
