Place of Origin:
Qingdao
Brand Name:
Greef
Certification:
CE
Model Number:
PERMANENT MAGNET GENERATOR
Document:
| Attribute | Value |
|---|---|
| Cooling Method | Air Cooling |
| Rated Frequency | 50Hz/60Hz |
| Application | Electricity Generation |
| Rated Rotate | 20rpm-3000rpm |
| Rated Speed | 3000rpm |
| Rated Voltage | Customized |
| Rated Power | 10kW |
| Power Range | 500W-5000kW |

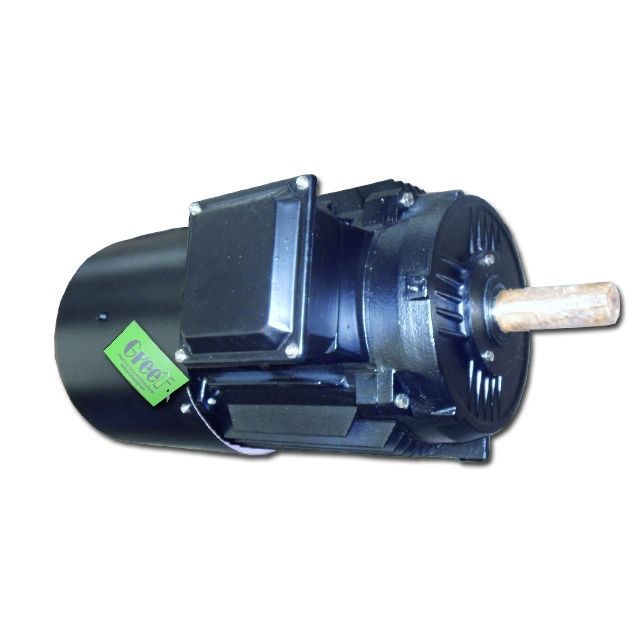

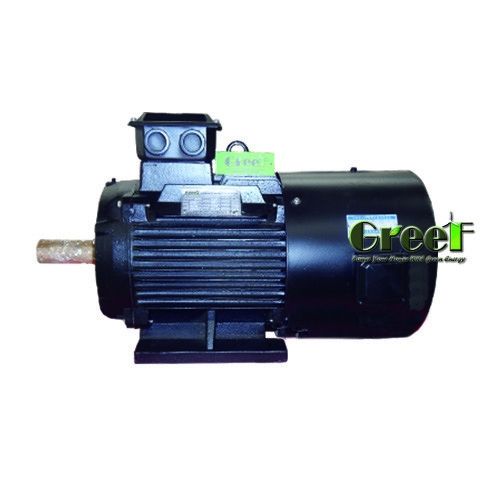

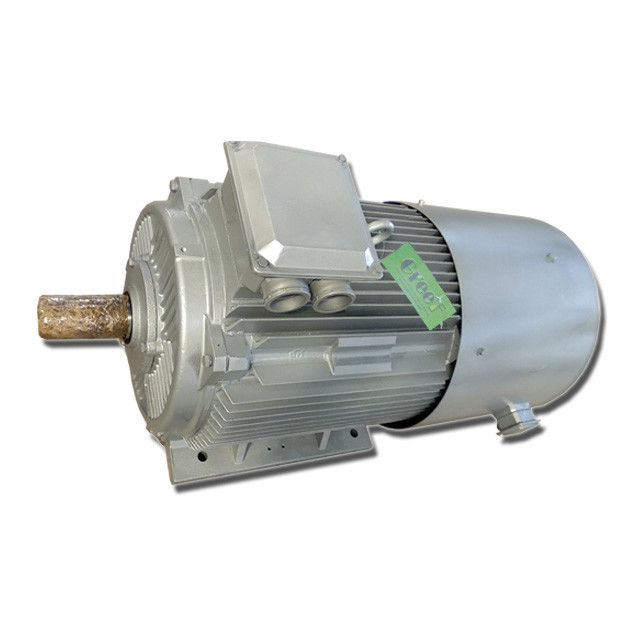

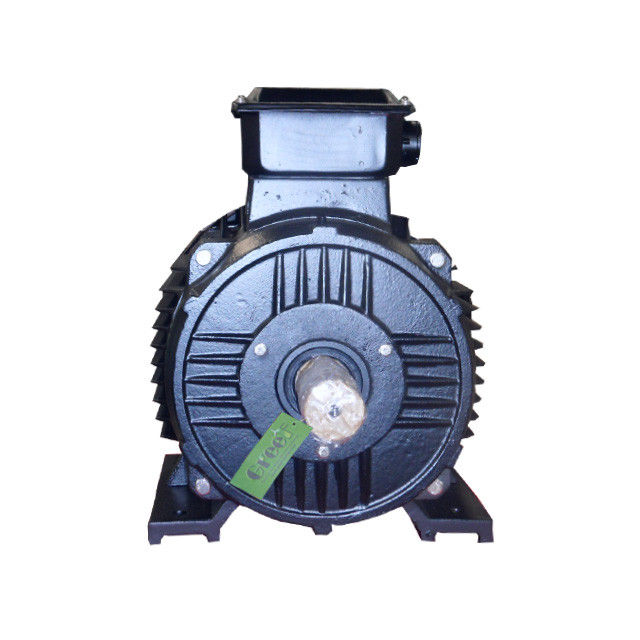

The Permanent Magnet AC Generator is a high-performance, durable and efficient electrical generator that utilizes advanced technology for a wide range of applications. It is designed to provide reliable power supply in various industries such as renewable energy, transportation, and industrial manufacturing.
| Parameter | Value |
|---|---|
| Rated power | 0.5-5000kW |
| Rated rotate speed | 20-3000rpm |
| Rated voltage | 48-1140Vac |
| Frequency | 60/50Hz |
| Number of Poles | 24 |
| Generator type | 3phase AC Synchronous generator |
| Magnet type | NdFeB |
| Winding Method | Y |
| Magnet temperature level | Max.120℃ |
| Winding temperature level | Max.180℃ |
| Efficiency | >95% |
| RATED POWER | RATED SPEED | RATED VOLTAGE | FREQUENCY |
|---|---|---|---|
| 0.5KW | 20rpm~400rpm | 12V~220Vac | 10Hz~60Hz |
| 1KW | 20rpm~600rpm | 12V~220Vac | 10Hz~60Hz |
| 2KW | 20rpm~1000rpm | 12V~400Vac | 10Hz~60Hz |
| 3KW | 20rpm~1500rpm | 48V~690Vac | 10Hz~60Hz |
| 5KW | 20rpm~1500rpm | 48V~690Vac | 10Hz~60Hz |
