Name: Wind Off-Grid Controller AHCC 40Aac/80Aac MPPT for 5KW-30KW Systems
Brand: Qingdao Greef New Energy Equipment Co., Ltd
SKU: AHCC
Price: 12399.00 USD
Availability: InStock

Home > products > Off Grid Controller >

Wind Off-Grid Controller AHCC 40Aac/80Aac MPPT for 5KW-30KW Systems

40A MPPT off-grid controller

80A MPPT solar charge controller

5KW-30KW off-grid system controller

Brand Name:

Greef

Certification:

Model Number:

AHCC

Request A Quote

Product Details

Rated Input Current:

40Aac/80Aac

Rated Wind Power:

5KW/10kw/20kw/30kw

Maximum Withstand Voltage:

290Vac-530Vac/600Vac For 5 Seconds

MPPT Voltage Range:

90~520V Customized/220~530Vac

Rated Voltage:

48Vac-380Vac

Application:

Solar System Or Wind Turbine Or Generator System

Communication Interface:

Standard: RS485/TCP

Battery Type:

Lead-acid Batteries, Lithium Batteries, DC Bus Bars, Etc.

Payment & Shipping Terms

Minimum Order Quantity

1Set

Price

Negotiable

Packaging Details

Foam+plywooden Case

Delivery Time

25 Working Days

Payment Terms

T/T,Western Union,MoneyGram,L/C

Supply Ability

High Frequency Isolated Energy Converter off grid Controller for Sustainable Off-Grid Solutions

Get Best Price

Video

Lightning Protection Circuits Off Grid Controller Maximum Withstand Voltage 290Vac-530Vac/600Vac For 5 Seconds

Get Best Price

Video

Controller for Greef MPPT Technology Rated voltage 48Vac-380Vac

Get Best Price

Video

5KW/10KW/20KW/30KW Rated Power Off Grid Controller 100A/200A/80A/150A Rated Output Current PWM/MPPT Method

Get Best Price

Contact Now

Product Description

Control Your Wind System with Wind Controller AHCC Rated Input Current 40Aac/80Aac

Product Description

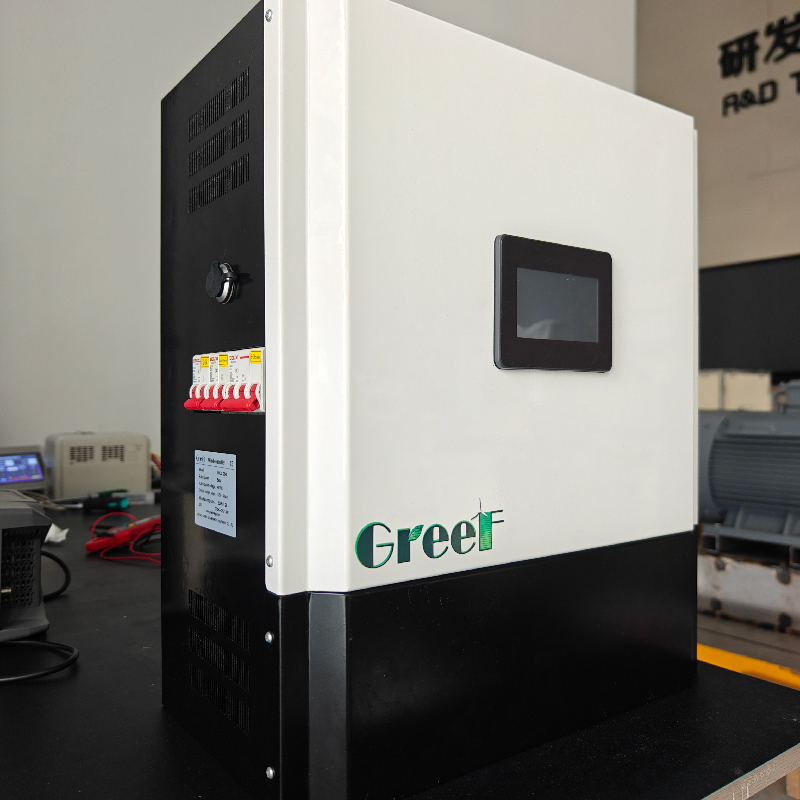

The GREEF wind off-grid controller is a critical component in wind generator systems, converting three-phase AC current from wind turbines into DC current to charge battery banks. Featuring dedicated MPPT technology, this controller significantly enhances electricity production while incorporating advanced features like modular design, electrical isolation, PWM unloading, and host computer control.

With its large touchscreen and IoT functionality, the GREEF controller enables efficient, safe, and intelligent power generation while supporting comprehensive operation and maintenance management.

Key Features

Power Tracking: Wind energy MPPT with 98% engagement with actual wind energy output curve for enhanced power generation
Safety Protection: Over-voltage, over-current, anti-reverse connection, and short circuit protection
IoT Functionality: Wired network support with APP remote view and control, plus remote data export capability
Touch Screen Interface: Displays voltage, current, power, power generation, and operation status with alarm query and historical data review
Custom Power Absorption Circuit: Modularized, hot-swappable design with input/output electrical isolation and high efficiency at low wind speeds
PWM Unloading: Fan self-powered mode with fast response, speed/torque limiting, and soft unloading adjustment

Technical Specifications

Model	AHCC-5KW	AHCC-10KW	AHCC-20KW	AHCC-30KW
Rated power	5KW	10KW	20KW	30KW
Product Type	MPPT, high frequency isolated new energy converter
DC Output Side
Type of energy storage	Lead-acid batteries, lithium batteries, DC bus bars, etc.
Rated output current	100A	200A	80A	150A
Output Voltage Range	42-240Vdc (adjustable)		200-1000Vdc (adjustable)
Wind Turbine Input Side
Rated voltage	48Vac-380Vac		380 Vac
Maximum withstand voltage	290Vac-530Vac for 5 seconds		600Vac for 5 seconds
MPPT voltage range	90~520V customized		220~530Vac
Maximum power	10kW	20kW	40kW	60KW
Rated Input Current	40Aac	80Aac	40Aac	80Aac
Working Environment Conditions
Ambient temperature	-25℃～50℃
Storage temperature	-40℃～75℃
Relative humidity	0 to 95%

Product Images

System Solution

We can tailor a system to your specific needs. Please contact us to learn more about our products.

Product Packaging
