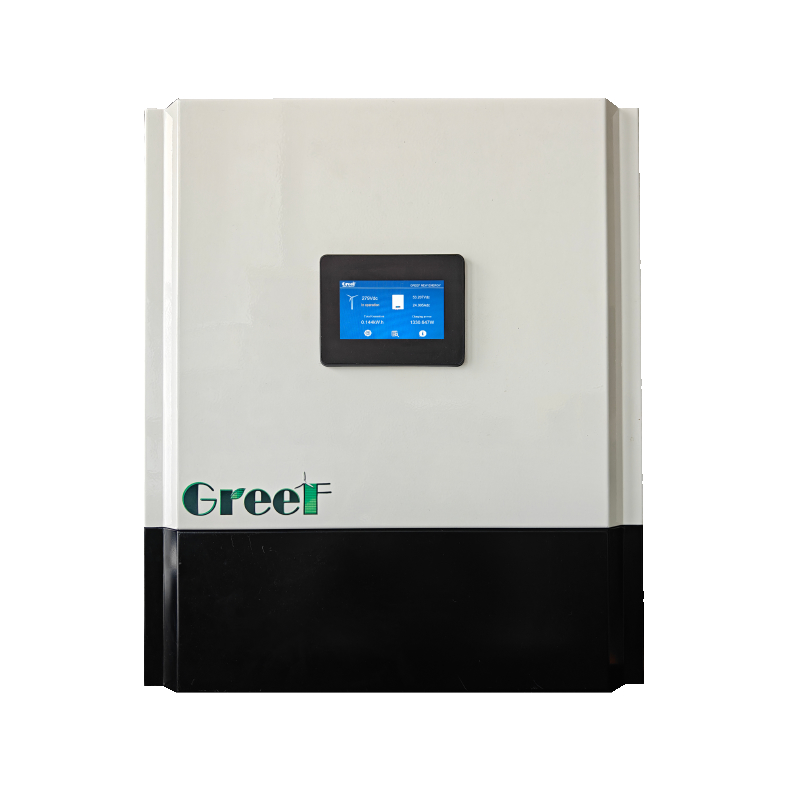

Name: 5KW-30KW MPPT Wind Off Grid Controller with RS485/TCP Interface
Brand: Qingdao Greef New Energy Equipment Co., Ltd
SKU: AHCC
Price: 12399.00 USD
Availability: InStock

Home > products > Off Grid Controller >

5KW-30KW MPPT Wind Off Grid Controller with RS485/TCP Interface

5KW MPPT wind controller with RS485

30KW off grid controller with TCP interface

MPPT wind controller for off grid systems

Brand Name:

Greef

Certification:

Model Number:

AHCC

Request A Quote

Product Details

Application:

Solar System Or Wind Turbine Or Generator System

Maximum Withstand Voltage:

290Vac-530Vac/600Vac For 5 Seconds

Battery Type:

Lead-acid Batteries, Lithium Batteries, DC Bus Bars, Etc.

Unloading Method:

PWM

Height Above Sea Level:

3000m Full Load Output

Rated Input Current:

40Aac/80Aac

Rated Wind Power:

5KW/10kw/20kw/30kw

Input Protection:

Fuses; Lightning Protection Circuits

Payment & Shipping Terms

Minimum Order Quantity

1Set

Price

Negotiable

Packaging Details

Foam+plywooden Case

Delivery Time

25 Working Days

Payment Terms

T/T,Western Union,MoneyGram,L/C

Supply Ability

High Frequency Isolated Energy Converter off grid Controller for Sustainable Off-Grid Solutions

Get Best Price

Video

Lightning Protection Circuits Off Grid Controller Maximum Withstand Voltage 290Vac-530Vac/600Vac For 5 Seconds

Get Best Price

Video

Controller for Greef MPPT Technology Rated voltage 48Vac-380Vac

Get Best Price

Video

5KW/10KW/20KW/30KW Rated Power Off Grid Controller 100A/200A/80A/150A Rated Output Current PWM/MPPT Method

Get Best Price

Contact Now

Product Description

5KW/10KW/20KW/30KW Rated Wind Power Off Grid Controller

Standard Communication Interface RS485/TCP with MPPT Technology

The GREEF off-grid controller is a technologically advanced solution for wind generator systems, converting three-phase AC current from wind turbines into DC current to charge battery banks. Featuring dedicated MPPT technology, modular design, and electrical isolation, this controller maximizes power generation efficiency.

Key Features

Power Tracking

Wind energy MPPT technology
98% engagement with actual wind energy output curve
Significant power generation enhancement

Safety Protection

Over-voltage protection
Over-current protection
Anti-reverse connection
Short circuit protection

IoT Functionality

Wired network connectivity
APP remote monitoring and control
Remote data export capabilities

Touch Screen Interface

Real-time display of voltage, current, power, and generation status
Alarm query and historical data review
On-site parameter adjustment

Custom Power Absorption Circuit

Modularized, hot-swappable design for easy maintenance
Input/output electrical isolation for load protection
High efficiency at low wind speeds with wide voltage range

PWM Unloading

Fan self-powered mode with fast response
Speed and torque limitation for turbine safety
Soft unloading adjustment to reduce fan output burden

Technical Specifications

Model	AHCC-5KW	AHCC-10KW	AHCC-20KW	AHCC-30KW
Rated power	5KW	10KW	20KW	30KW
DC Output Side
Energy storage type	Lead-acid batteries, lithium batteries, DC bus bars
Rated output current	100A	200A	80A	150A
Output voltage range	42-240Vdc (adjustable)		200-1000Vdc (adjustable)
Wind Turbine Input Side
Rated voltage	48Vac-380Vac		380Vac
MPPT voltage range	90~520V (customizable)		220~530Vac
Maximum power	10kW	20kW	40kW	60KW
Working Environment
Ambient temperature	-25℃～50℃
Communication interface	Standard: RS485/TCP

Applications

The AHCC Off-Grid Controller is designed for various off-grid power generation systems including wind, hydroelectric, and solar applications. It provides reliable power management for remote locations without grid connectivity.

Customization Options

Greef offers comprehensive customization services for the AHCC controller series:

Brand Name: Greef
Model Number: AHCC
Certification: CE compliant
Minimum Order Quantity: 1 Set
Delivery Time: 25 working days
Packaging: Foam + plywood case

Product Images

System Solutions

We provide tailored system solutions to meet your specific power generation requirements. Contact us for more information about our products.

Packaging & Shipping

The controller ships with complete installation hardware and documentation:

Package includes: Controller unit, instruction manual, mounting hardware
Shipping method: Standard shipping
Estimated delivery: 5-7 business days
Packaging: Weather-resistant protective casing
