3000m Full Load Output Solar and Wind Controller High Altitude 40Aac/80Aac Rated Input Current
Product Parameters
| Model | AHCC-5KW | AHCC-10KW | AHCC-20KW | AHCC-30KW |
| Rated power | 5KW | 10KW | 20KW | 30KW |
| Product Type | MPPT, high frequency isolated new energy converter |
| DC output side |
| Type of energy storage | Lead-acid batteries, lithium batteries, DC bus bars, etc. |
| Rated output current | 100A | 200A | 80A | 150A |
| Output Voltage Range | 42-240Vdc (parameters adjustable depending on type of energy storage) | 200-1000Vdc (parameters adjustable depending on type of energy storage) |
| Voltage stabilization accuracy | ≤±0.5% |
| Stabilization accuracy | ≤±1% |
| Wind turbine input side |
| Rated voltage | 48Vac-380Vac | 380 Vac |
| Maximum withstand voltage | 290Vac-530Vac for 5 seconds | 600Vac for 5 seconds |
| MPPT voltage range | 90~520V customized | 220~530Vac |
| Maximum power | 10kW | 20kW | 40kW | 60KW |
| Rated Input Current | 40Aac | 80Aac | 40Aac | 80Aac |
| Input protection | Fuses; lightning protection circuits |
| Unloading side |
| Unloading method | PWM |
| Rated unloading current | 40Adc | 100Adc | 50Adc | 100Adc |
| Maximum withstand current | 60A | 200A | 200A | 400A |
| Working environment conditions |
| Ambient temperature | -25℃～50℃ |
| Storage temperature | -40℃～75℃ |
| Relative humidity | 0 to 95% |
| Height above sea level | 3000m full load output |
| Communication interface | Standard: RS485/TCP |
| Size of the controller (mm) | 485×267×450mm | 343×605×970mm |
| Controller Weight | 29.5kg | 38.5kg | 61.5Kg | 71.5Kg |
| Size of the Dump load (mm) | 695×131×194mm | 700×450×750mm | 820×620×900mm | 900 x 700 x 1270mm |
| Dump load Weight | 18kg | 40kg | 80kg | 120Kg |
Product Description

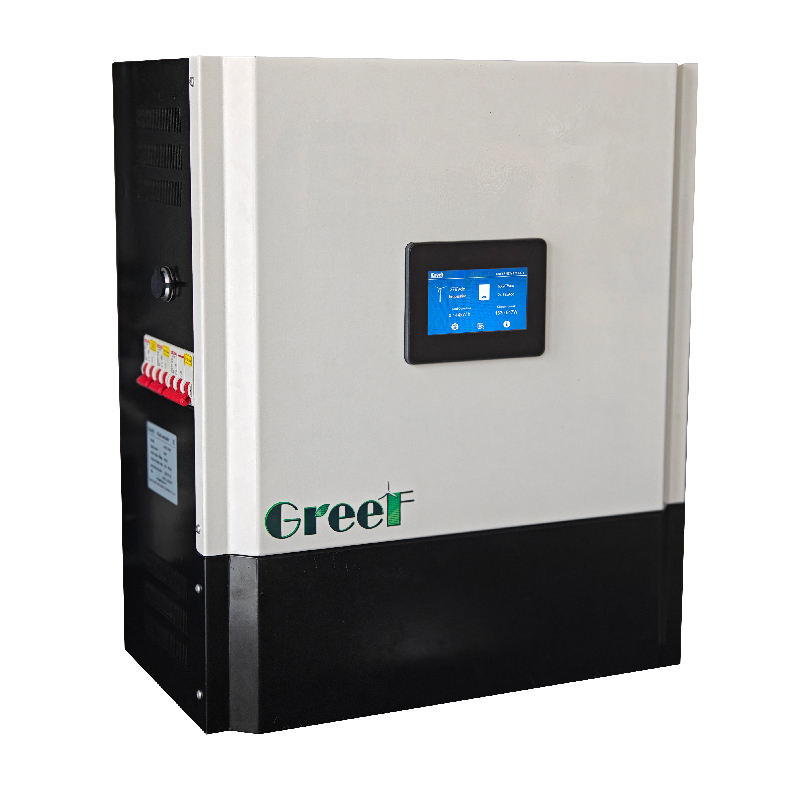

The off-grid controller plays a crucial role in wind generator systems by converting Three AC current from the wind turbine into DC current to charge the battery bank. The GREEF wind off-grid controller is a technologically advanced component that enhances electricity production using dedicated MPPT technology. It incorporates features like modular design, electrical isolation, PWM unloading, and host computer control.
Featuring a large touchscreen and IoT functionality, the GREEF wind off-grid controller enables efficient, safe, and intelligent power generation along with operation & maintenance management. Its innovative design and technologies contribute to maximizing the performance and reliability of wind energy systems.
Applications
The AHCC Off-Grid Controller is versatile and can be utilized in various off-grid power generation systems, including wind power, hydroelectric power, and solar power systems. Whether you are setting up an off-grid wind power generation system, off-grid hydroelectric power generation system, or off-grid solar power generation system, our controller is designed to meet your requirements.
With the AHCC Off-Grid Controller, you can effectively manage and control the power generation process in off-grid environments. This controller is specially designed to ensure optimal performance and efficiency in off-grid wind, hydroelectric, and solar power generation systems.
Customization
Brand Name: Greef
Model Number: AHCC
Place Of Origin: CHINA
Certification: CE
Minimum Order Quantity: 1Set
Price: Negotiable
Packaging Details: Foam+plywooden Case
Delivery Time: 25 Working Days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: Supply Ability
Unloading Method: PWM
Product Type: MPPT, High Frequency Isolated New Energy Converter
Rated Input Current: 40Aac/80Aac
Maximum withstand voltage: 290Vac-530Vac/600Vac For 5 Seconds
Battery Type: Lead-acid Batteries, Lithium Batteries, DC Bus Bars, Etc.
Product Customization Services for Off Grid Controller. This controller is an essential part of the control system for off-grid systems. It offers advanced features such as MPPT technology and high frequency isolated new energy conversion. With a rated input current of 40Aac/80Aac and maximum withstand voltage of 290Vac-530Vac/600Vac for 5 seconds, it is compatible with various battery types including lead-acid batteries, lithium batteries, and DC bus bars.
