Name: 40A Off Grid Controller for Solar Wind Systems with PWM Unloading
Brand: Qingdao Greef New Energy Equipment Co., Ltd
SKU: AHCC
Price: 12399.00 USD
Availability: InStock

Home > products > Off Grid Controller >

40A Off Grid Controller for Solar Wind Systems with PWM Unloading

40A off grid solar controller

PWM wind system controller

off grid controller with unloading

Brand Name:

Greef

Certification:

Model Number:

AHCC

Request A Quote

Product Details

Battery Type:

Lead-acid Batteries, Lithium Batteries, DC Bus Bars, Etc.

Unloading Method:

PWM

Rated Input Current:

40Aac/80Aac

Input Protection:

Fuses; Lightning Protection Circuits

Communication Interface:

Standard: RS485/TCP

Height Above Sea Level:

3000m Full Load Output

Application:

Solar System Or Wind Turbine Or Generator System

Rated Unloading Current:

40Adc/50Adc/100Adc

Payment & Shipping Terms

Minimum Order Quantity

1Set

Price

Negotiable

Packaging Details

Foam+plywooden Case

Delivery Time

25 Working Days

Payment Terms

T/T,Western Union,MoneyGram,L/C

Supply Ability

High Frequency Isolated Energy Converter off grid Controller for Sustainable Off-Grid Solutions

Get Best Price

Video

Lightning Protection Circuits Off Grid Controller Maximum Withstand Voltage 290Vac-530Vac/600Vac For 5 Seconds

Get Best Price

Video

Controller for Greef MPPT Technology Rated voltage 48Vac-380Vac

Get Best Price

Video

5KW/10KW/20KW/30KW Rated Power Off Grid Controller 100A/200A/80A/150A Rated Output Current PWM/MPPT Method

Get Best Price

Contact Now

Product Description

Off Grid Controller for Generator System and Battery Type Lead-acid Batteries

Product Description

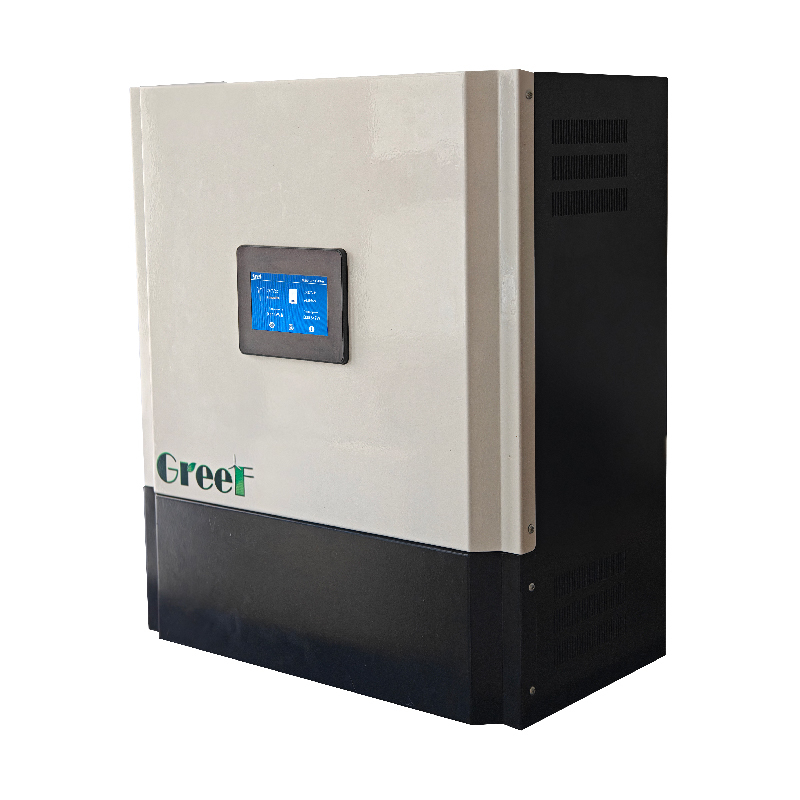

The Off-grid Controller is a critical component in wind generator systems, converting three-phase AC current from wind turbines into DC current for battery bank charging. The GREEF wind off-grid controller features dedicated MPPT technology to maximize electricity production. Key features include:

Modular design for flexible installation
Electrical isolation for enhanced safety
PWM unloading capability
Host computer control integration
Large touchscreen interface
IoT functionality for remote monitoring

These advanced technologies enable efficient, secure, and intelligent power generation while simplifying operation and maintenance management.

Applications

The AHCC Off-Grid Controller is designed for various renewable energy systems:

Wind power generation systems
Hydroelectric power generation systems
Solar power generation systems

The controller seamlessly integrates with off-grid setups to optimize performance and maximize energy output across different renewable energy sources.

Customization Options

Brand Name: Greef
Model Number: AHCC
Place Of Origin: China
Certification: CE
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Foam + plywooden case
Delivery Time: 25 working days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Battery Type: Lead-acid Batteries, Lithium Batteries, DC Bus Bars
Application: Solar System, Wind Turbine, or Generator System
Rated Wind Power: 5KW/10KW/20KW/30KW
Input Protection: Fuses; Lightning Protection Circuits
Rated Voltage: 48Vac-380Vac

Technical Specifications

Model	AHCC-5KW	AHCC-10KW	AHCC-20KW	AHCC-30KW
Rated power	5KW	10KW	20KW	30KW
Product Type	MPPT, high frequency isolated new energy converter
DC Output Side
Type of energy storage	Lead-acid batteries, lithium batteries, DC bus bars
Rated output current	100A	200A	80A	150A
Output Voltage Range	42-240Vdc (adjustable)		200-1000Vdc (adjustable)
Voltage stabilization accuracy	≤±0.5%
Stabilization accuracy	≤±1%
Wind Turbine Input Side
Rated voltage	48Vac-380Vac		380Vac
Maximum withstand voltage	290Vac-530Vac for 5 seconds		600Vac for 5 seconds
MPPT voltage range	90~520V customized		220~530Vac
Maximum power	10kW	20kW	40kW	60KW
Rated Input Current	40Aac	80Aac	40Aac	80Aac
Input protection	Fuses; lightning protection circuits
Unloading Side
Unloading method	PWM
Rated unloading current	40Adc	100Adc	50Adc	100Adc
Maximum withstand current	60A	200A	200A	400A
Working Environment Conditions
Ambient temperature	-25℃～50℃
Storage temperature	-40℃～75℃
Relative humidity	0 to 95%
Height above sea level	3000m full load output
Communication interface	Standard: RS485/TCP
Size of the controller (mm)	485×267×450mm		343×605×970mm
Controller Weight	29.5kg	38.5kg	61.5Kg	71.5Kg
Size of the Dump load (mm)	695×131×194mm	700×450×750mm	820×620×900mm	900×700×1270mm
Dump load Weight	18kg	40kg	80kg	120Kg

Product Images

System Solution

We can tailor a system to your specific needs. If you would like to learn more about our products, please contact us.
