Brand Name:
Greef
Certification:
CE
Model Number:
AHCC

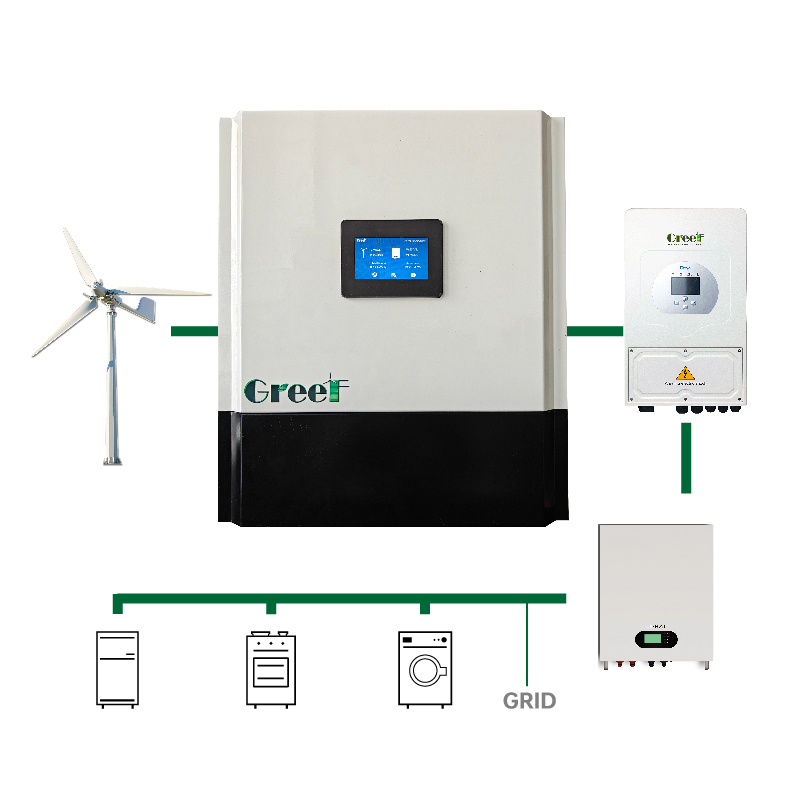

The GREEF wind off-grid controller is a technologically advanced component that converts three-phase AC current from wind turbines into DC current for charging battery banks. Featuring dedicated MPPT technology, this controller significantly enhances electricity production efficiency.
The AHCC Off-Grid Controller is designed for:
| Model | AHCC-5KW | AHCC-10KW | AHCC-20KW | AHCC-30KW |
|---|---|---|---|---|
| Rated power | 5KW | 10KW | 20KW | 30KW |
| Product Type | MPPT, high frequency isolated new energy converter | |||
| DC Output Side | ||||
| Type of energy storage | Lead-acid batteries, lithium batteries, DC bus bars, etc. | |||
| Rated output current | 100A | 200A | 80A | 150A |
| Output Voltage Range | 42-240Vdc (adjustable) | 200-1000Vdc (adjustable) | ||
| Voltage stabilization accuracy | ≤±0.5% | |||
| Stabilization accuracy | ≤±1% | |||
| Wind Turbine Input Side | ||||
| Rated voltage | 48Vac-380Vac | 380 Vac | ||
| Maximum withstand voltage | 290Vac-530Vac for 5 seconds | 600Vac for 5 seconds | ||
| MPPT voltage range | 90~520V customized | 220~530Vac | ||
| Maximum power | 10kW | 20kW | 40kW | 60KW |
| Rated Input Current | 40Aac | 80Aac | 40Aac | 80Aac |
| Input protection | Fuses; lightning protection circuits | |||
| Unloading Side | ||||
| Unloading method | PWM | |||
| Rated unloading current | 40Adc | 100Adc | 50Adc | 100Adc |
| Maximum withstand current | 60A | 200A | 200A | 400A |
| Working Environment Conditions | ||||
| Ambient temperature | -25℃～50℃ | |||
| Storage temperature | -40℃～75℃ | |||
| Relative humidity | 0 to 95% | |||
| Height above sea level | 3000m full load output | |||
| Communication interface | Standard: RS485/TCP | |||
| Size of the controller (mm) | 485×267×450mm | 343×605×970mm | ||
| Controller Weight | 29.5kg | 38.5kg | 61.5Kg | 71.5Kg |
| Size of the Dump load (mm) | 695×131×194mm | 700×450×750mm | 820×620×900mm | 900 x 700 x 1270mm |
| Dump load Weight | 18kg | 40kg | 80kg | 120Kg |
We can tailor a system to your specific needs. Please contact us to learn more about our products.
Our comprehensive technical support ensures optimal system performance. Our expert team provides assistance with installation, troubleshooting, and maintenance guidance.
Each controller is securely packaged in sturdy cardboard boxes with clear product information and handling instructions.
We ship via reliable courier services with tracking numbers provided for all orders.
