Lightning Protection Circuits and Charge Controller Off Grid Controller with Standard RS485/TCP Communication
Product Parameters
| Model | AHCC-5KW | AHCC-10KW | AHCC-20KW | AHCC-30KW |
| Rated power | 5KW | 10KW | 20KW | 30KW |
| Product Type | MPPT, high frequency isolated new energy converter |
| DC output side |
| Type of energy storage | Lead-acid batteries, lithium batteries, DC bus bars, etc. |
| Rated output current | 100A | 200A | 80A | 150A |
| Output Voltage Range | 42-240Vdc (parameters adjustable depending on type of energy storage) | 200-1000Vdc (parameters adjustable depending on type of energy storage) |
| Voltage stabilization accuracy | ≤±0.5% |
| Stabilization accuracy | ≤±1% |
| Wind turbine input side |
| Rated voltage | 48Vac-380Vac | 380 Vac |
| Maximum withstand voltage | 290Vac-530Vac for 5 seconds | 600Vac for 5 seconds |
| MPPT voltage range | 90~520V customized | 220~530Vac |
| Maximum power | 10kW | 20kW | 40kW | 60KW |
| Rated Input Current | 40Aac | 80Aac | 40Aac | 80Aac |
| Input protection | Fuses; lightning protection circuits |
| Unloading side |
| Unloading method | PWM |
| Rated unloading current | 40Adc | 100Adc | 50Adc | 100Adc |
| Maximum withstand current | 60A | 200A | 200A | 400A |
| Working environment conditions |
| Ambient temperature | -25℃～50℃ |
| Storage temperature | -40℃～75℃ |
| Relative humidity | 0 to 95% |
| Height above sea level | 3000m full load output |
| Communication interface | Standard: RS485/TCP |
| Size of the controller (mm) | 485×267×450mm | 343×605×970mm |
| Controller Weight | 29.5kg | 38.5kg | 61.5Kg | 71.5Kg |
| Size of the Dump load (mm) | 695×131×194mm | 700×450×750mm | 820×620×900mm | 900 x 700 x 1270mm |
| Dump load Weight | 18kg | 40kg | 80kg | 120Kg |
Product Description

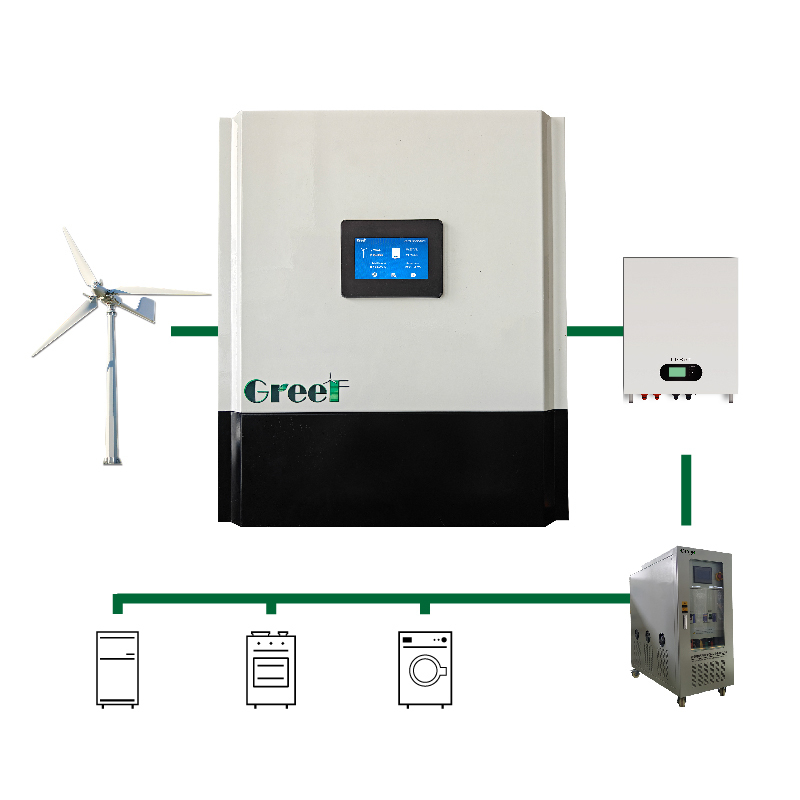

Off-grid Controller plays a crucial role in wind generator systems as it is the most technologically significant component. It is responsible for converting Three AC current generated by the wind turbine into DC current, which is then used to charge the battery bank.
The GREEF wind off-grid controller stands out for its ability to enhance electricity production significantly using dedicated MPPT technology. Moreover, it incorporates advanced features such as modular design, electrical isolation, PWM unloading, and host computer control to optimize performance.
Furthermore, this controller is designed with a large touchscreen interface and IoT (Internet of Things) functionality. These features enable efficient, safe, and intelligent power generation, as well as facilitate operation and maintenance management for improved overall performance.
Applications
The AHCC Off-Grid Controller is compatible with various types of off-grid power generation systems, such as off-grid wind power generation systems, off-grid hydroelectric power generation systems, and off-grid solar power generation systems.
It can be effectively utilized in off-grid setups that harness wind energy, hydroelectricity, or solar power to generate electricity autonomously, making it a versatile and efficient solution for remote locations or situations where grid connectivity is not available.
Customization
Product Customization Services for the Off Grid Controller:
- Brand Name: Greef
- Model Number: AHCC
- Place Of Origin: CHINA
- Certification: CE
- Minimum Order Quantity: 1Set
- Price: Negotiable
- Packaging Details: Foam+plywooden Case
- Delivery Time: 25 Working Days
- Payment Terms: T/T, Western Union, MoneyGram, L/C
- Supply Ability: Supply Ability
- Mppt Voltage Range: 90~520V/220~530Vac Customized
- Communication: Standard: RS485/TCP
- Rated Input Current: 40Aac/80Aac
- Type of energy storage: Lead-acid Batteries, Lithium Batteries, DC Bus Bars, Etc.
- Model: AHCC
- Control System, Control System, Control System
Support and Services
Our team of experts is available to provide technical support and services for the Off Grid Controller product. Whether you have questions about installation, troubleshooting, or general usage, we are here to help. Contact us for assistance with any issues you may encounter while using the Off Grid Controller.
Packing and Shipping
The Off Grid Controller is carefully packaged to ensure safe delivery. It is wrapped in protective bubble wrap and placed in a sturdy cardboard box to prevent any damage during transit.
We offer fast and reliable shipping options for the Off Grid Controller. Orders are typically processed within 1-2 business days and shipped via reputable carriers. You will receive a tracking number to monitor the status of your delivery.
FAQ
Q: What is the brand name of the Off Grid Controller?
A: The brand name is Greef.
Q: What is the model number of the Off Grid Controller?
A: The model number is AHCC.
Q: Where is the Off Grid Controller manufactured?
A: The Off Grid Controller is manufactured in China.
Q: What certification does the Off Grid Controller have?
A: The Off Grid Controller is CE certified.
Q: What are the payment terms accepted for purchasing the Off Grid Controller?
A: The accepted payment terms are T/T, Western Union, MoneyGram, and L/C.
