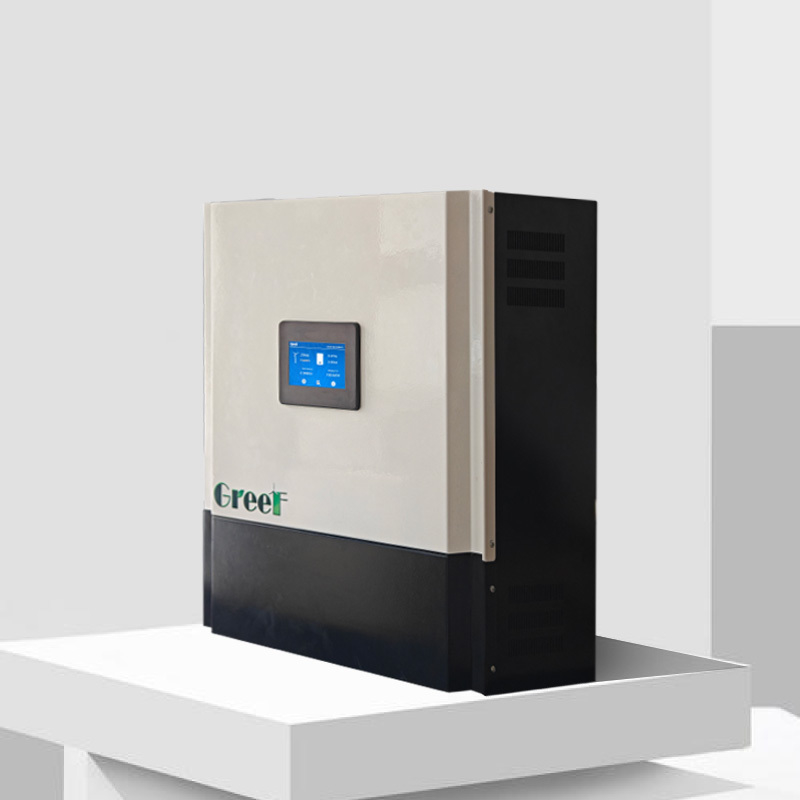

Name: 5KW Off Grid Controller with MPPT 290Vac-530Vac Lightning Protection
Brand: Qingdao Greef New Energy Equipment Co., Ltd
SKU: AHCC
Price: 12399.00 USD
Availability: InStock

Home > products > Off Grid Controller >

5KW Off Grid Controller with MPPT 290Vac-530Vac Lightning Protection

off grid controller lightning protection

off grid controller high voltage withstand

lightning protection circuit 290V-530V

Brand Name:

Greef

Certification:

Model Number:

AHCC

Request A Quote

Product Details

Rated Power:

5KW/10KW/20KW/30KW

Model:

AHCC

Method:

PWM/MPPT

Height Above Sea Level:

3000m Full Load Output

Communication:

Standard: RS485/TCP

Maximum Withstand Voltage:

290Vac-530Vac/600Vac For 5 Seconds

Input Protection:

Fuses; Lightning Protection Circuits

Rated Input Current:

40Aac/80Aac

Payment & Shipping Terms

Minimum Order Quantity

1Set

Price

Negotiable

Packaging Details

Foam+plywooden Case

Delivery Time

25 Working Days

Payment Terms

T/T,Western Union,MoneyGram,L/C

Supply Ability

MPPT Off Grid Controller AHCC 48-380V 5-30KW Wind Solar Hybrid

Get Best Price

Video

Greef AHCC Off Grid Controller 100A MPPT 90-520V RS485/TCP

Get Best Price

Video

AHCC Off Grid Controller MPPT 100A-200A with RS485/TCP Communication

Get Best Price

Video

MPPT Off Grid Controller 100A-200A Output for Wind Solar Systems

Get Best Price

Contact Now

Product Description

Lightning Protection Circuits Off Grid Controller

Maximum Withstand Voltage: 290Vac-530Vac/600Vac For 5 Seconds

Product Introduction

The GREEF Off-grid Controller is a critical component in wind generator systems, converting three-phase AC current from wind turbines into DC current to charge battery banks. Featuring advanced MPPT technology, modular design, electrical isolation, PWM unloading, and host computer control, this controller enhances power generation efficiency. It includes a large touchscreen and IoT capabilities for intelligent operation and maintenance management.

Key Features

Power Tracking: Wind energy MPPT with 98% engagement with actual wind energy output curve for enhanced power generation
Safety Protection: Comprehensive protection including over-voltage, over-current, anti-reverse connection, and short circuit protection
IoT Functionality: Wired network support with APP remote viewing and control, plus remote data export capabilities
Touch Screen Interface: Displays voltage, current, power, generation status, and alarm information with historical data query
Custom Power Absorption Circuit: Modular design for easy maintenance, electrical isolation for load protection, and high efficiency at low wind speeds
PWM Unloading: Fan self-powered mode with fast response, speed/torque limiting for turbine safety, and soft unloading adjustment

Technical Specifications

Model	AHCC-5KW	AHCC-10KW	AHCC-20KW	AHCC-30KW
Rated power	5KW	10KW	20KW	30KW
Product Type	MPPT, high frequency isolated new energy converter
DC Output Side
Type of energy storage	Lead-acid batteries, lithium batteries, DC bus bars
Rated output current	100A	200A	80A	150A
Output Voltage Range	42-240Vdc (adjustable)		200-1000Vdc (adjustable)
Wind Turbine Input Side
Maximum withstand voltage	290Vac-530Vac for 5 seconds		600Vac for 5 seconds
MPPT voltage range	90~520V customized		220~530Vac
Input protection	Fuses; lightning protection circuits
Physical Specifications
Controller Dimensions (mm)	485×267×450		343×605×970
Controller Weight	29.5kg	38.5kg	61.5Kg	71.5Kg

Applications

The AHCC Off-Grid Controller is suitable for various applications including off-grid wind power generation systems, off-grid hydroelectric power generation systems, and off-grid solar power generation systems.

Customization Options

Brand Name: Greef
Model Number: AHCC
Certification: CE
Delivery Time: 25 Working Days
Payment Terms: T/T, Western Union, MoneyGram, L/C

Support and Services

Our technical support team provides comprehensive assistance for installation, setup, and maintenance. We offer regular software updates, detailed product manuals, and online resources to optimize controller performance.

Frequently Asked Questions

Q: What is the brand name of the Off Grid Controller?

A: The brand name is Greef.

Q: What certifications does the controller have?

A: The controller is CE certified.

Q: What are the payment options?

A: We accept T/T, Western Union, MoneyGram, and L/C.
