On Grid Controller with 240-550V AC Voltage Range, 95% Maximum Efficiency, and LCD SMART Touch Screen for Power Supply Solutions

On Grid Controller with 240-550V AC Voltage Range, 95% Maximum Efficiency, and LCD SMART Touch Screen for Power Supply Solutions

240-550V AC Voltage Range On Grid Controller

95% Maximum Efficiency Grid Tied Controller

LCD SMART Touch Screen Energy Management Controller

Brand Name:

Greef

Certification:

CE

Model Number:

AC PCS

Contact Us
Request A Quote
Product Details
Maximum Efficiency(%):
95%
Battery Voltage Range(Vdc):
350 - 450
Rated Grid Frequency(Hz):
50Hz/60Hz
Maximum AC Current(A):
180
Rated Power(kW):
100
Rated Grid Voltage(V):
400
Communication Mode:
Ethemet, RS485, WIFI
Topology:
AC-DC Reticifier ,DC- DC Buck Boost ,DC-AC Invertor.EMS
Highlight:

240-550V AC Voltage Range On Grid Controller

,

95% Maximum Efficiency Grid Tied Controller

,

LCD SMART Touch Screen Energy Management Controller

Payment & Shipping Terms
Minimum Order Quantity
1Set
Price
Negotiable
Packaging Details
Foam+plywooden Case
Delivery Time
25 Working Days
Payment Terms
T/T,Western Union,MoneyGram,L/C
Supply Ability
Supply Ability
Product Description
AC/DC Multi-Functional Power Converter with SMART Touch Screen

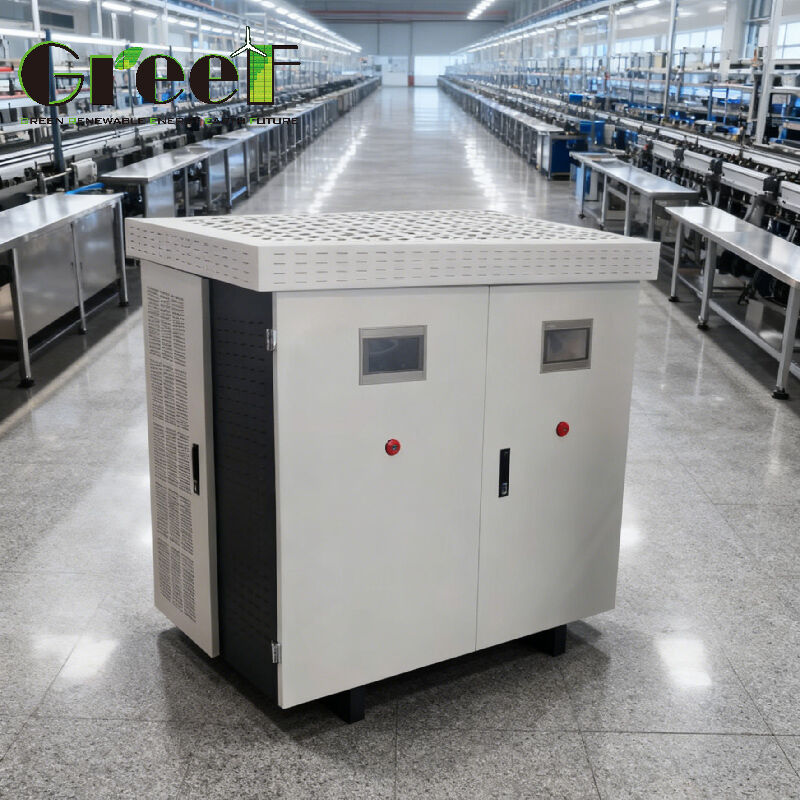

On Grid Controller with 240-550V AC Voltage Range, 95% Maximum Efficiency, and LCD SMART Touch Screen for Power Supply Solutions 0
GREEF ENERGY's multi-functional converter integrates multiple essential power management functions into a single compact unit. Designed specifically for permanent magnet generators (PM generators), it provides efficient AC-to-DC rectification for battery charging and DC-to-AC inversion capabilities. The system incorporates a comprehensive energy management system to optimize overall performance and reliability.
Technical Specifications
Generator AC Input Parameters
Rated Power 100 kW
Rated Voltage ≥320 Vac
Optimal Rated Voltage 450 Vac
AC Voltage Range 240-550 Vac
Maximum AC Current 180 A
Battery Input Data
Battery Type Lithium-ion
Voltage Range 350-450 Vdc
Rated Battery Voltage 400 Vdc
Max Charge/Discharge Current 250 A
Grid-Connected Output Parameters
Rated Power 100 kW
Maximum Power 120 kW
Rated Current 144 A
Maximum Current 173 A
Grid Voltage Range 300-460 V
Grid Frequency 50/60 Hz
Total Harmonic Distortion <3%
Power Factor >0.99 (-1 to 1)
System Performance & Protection
Maximum Efficiency
95%
Overload Capacity
1.2x nominal power for 1 minute
Protection Level
IP54
Operating Temperature
-40°C to 60°C
Key Features
  • Dual LCD touchscreen interface for intuitive control
  • Advanced voltage and frequency control for PMSG systems
  • Grid-tied operation capability with grid charging
  • Comprehensive protection features including overvoltage, short-circuit, and surge protection
  • Intelligent air cooling system
  • Multiple communication interfaces: Ethernet, RS485, WiFi
  • Remote monitoring and configuration capabilities
Applications
This versatile converter system serves multiple power management applications including renewable energy integration, off-grid power systems, industrial backup power, and grid-interactive installations.
Renewable Energy
Integration of PMSG from wind/hydro turbines
Off-Grid Systems
Remote sites, cabins, telecommunications
Grid-Interactive
Grid synchronization and battery charging
Industrial/Commercial
Backup power and building management integration
On Grid Controller with 240-550V AC Voltage Range, 95% Maximum Efficiency, and LCD SMART Touch Screen for Power Supply Solutions 1
Customization & Ordering
AC PCS Model Features:
• 100 kW rated power with 400 Vdc battery voltage
• 450 Vac optimal generator voltage (240-550 Vac range)
• CE certified for quality and safety
• Multiple communication modes: Ethernet, RS485, WiFi

Order Information:
• Minimum Order: 1 set
• Delivery: 25 working days
• Payment: T/T, Western Union, MoneyGram, L/C
• Packaging: Secure foam and plywood cases
