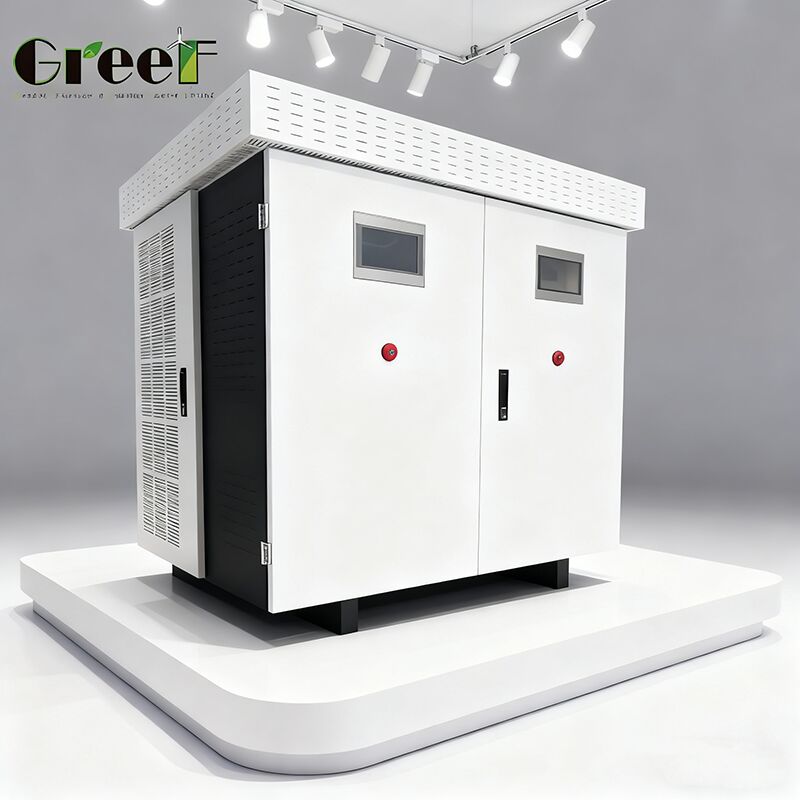

Name: 95% Maximum Efficiency On Grid Controller with 240-550V AC Voltage Range and LCD Smart Touch Screen
Brand: Qingdao Greef New Energy Equipment Co., Ltd
SKU: AC PCS
Price: 1,730.00 USD
Availability: InStock

Home > Products > On Grid Controller >

95% Maximum Efficiency On Grid Controller with 240-550V AC Voltage Range and LCD Smart Touch Screen

95% Maximum Efficiency On Grid Controller

240-550V AC Voltage Range AC Generator-Battery Hybrid Converter

LCD Smart Touch Screen Energy Management Controller

Brand Name:

Greef

Certification:

Model Number:

AC PCS

Request A Quote

95% Maximum Efficiency On Grid Controller with 240-550V AC Voltage Range and LCD Smart Touch Screen

Product Details

Display Contents:

Generator Speed(rpm),Input Voltage (Vdc), Input Current(Vac) ,Output Power(kW), Grid Voltage (Vac),Grid Current(A), Power Generate Today(kWh),Power Generate This Month, Power Generate Last Month, Power Generate This Year, Power Generate Last Year,Power Cur

Topology:

AC-DC Reticifier ,DC- DC Buck Boost ,DC-AC Invertor.EMS

Rated Grid Voltage(V):

400

Display:

LCD SMART Touch Screen

Maximum Efficiency(%):

95%

Communication Mode:

Ethemet, RS485, WIFI

Cooling Method:

Intelligent Air Cooling

AC Votlage Working Range(Vac):

240 ~ 550

Payment & Shipping Terms

Minimum Order Quantity

1Set

Price

Negotiable

Packaging Details

Foam+plywooden Case

Delivery Time

25 Working Days

Payment Terms

T/T,Western Union,MoneyGram,L/C

Supply Ability

AC Generator-Battery Hybrid Converter with 450 Vac Optimal Generator Rated Voltage and LCD SMART Touch Screen Display for 50/60 Hz Rated Grid Frequency

Get Best Price

LCD Smart Touch Screen On Grid Controller with 240-550V AC Voltage Range and 95% Maximum Efficiency for Energy Management

Get Best Price

AC Generator-Battery Hybrid Converter with 95% Maximum Efficiency and 240-550V AC Voltage Range Featuring RS485 Communication Mode

Get Best Price

95% Maximum Efficiency On Grid Controller with LCD Smart Touch Screen and Lithium-Ion Battery for Energy Management

Get Best Price

Contact Now

Product Description

AC Generator-Battery Hybrid Converter

Achieve maximum 95% efficiency with this advanced on-grid controller featuring AC voltage working range of 240-550 Vac and compatibility with 50Hz/60Hz grid frequencies.

Product Overview

The GREEF ENERGY multi-functional converter integrates multiple critical functions into a single robust unit. It provides AC-to-DC rectification for Permanent Magnet generators, enabling efficient battery charging, plus DC-to-AC inversion to convert stored DC power back to usable AC power.

Equipped with a configurable dual LCD touchscreen for intuitive monitoring and control, this converter utilizes advanced technology to maintain stable voltage and frequency control for Permanent Magnet Synchronous Generators (PMSGs), ensuring reliable uninterrupted power supply.

Technical Specifications

Parameter Category	Specifications
Generator AC Input	Rated Power: 100 kW Rated Voltage: ≥320 Vac Optimal Voltage: 450 Vac Operating Range: 240-550 Vac Max AC Current: 180 A
Battery Input	Battery Type: Lithium-ion Voltage Range: 350-450 Vdc Rated Voltage: 400 Vdc Max Charge/Discharge Current: 250 A
Grid-Connected Output	Rated Power: 100 kW Maximum Power: 120 kW Rated Current: 144 A Max Current: 173 A Grid Voltage: 400 V Voltage Range: 300-460 V Grid Frequency: 50Hz/60Hz THD: <3% Power Factor: >0.99
Performance & Protection	Maximum Efficiency: 95% Overload Capacity: 1.2x nominal power for 1 minute Operating Temperature: -40°C to 60°C Protection Level: IP54 Max Altitude: 4,000 meters

Key Features

Advanced converter topology with AC-DC rectifier, DC-DC buck-boost, and DC-AC inverter
Integrated Energy Management System (EMS)
Configurable grid-tied operation mode
Comprehensive protection systems including over voltage, speed protection, and surge protection
Intelligent air cooling technology
Multiple communication interfaces: Ethernet, RS485, WIFI
LCD Smart Touch Screen display with real-time monitoring

Applications

This versatile converter system excels in renewable energy integration, off-grid power solutions, and industrial power management applications.

Permanent Magnet Synchronous Generators from wind and hydro turbines
Off-grid and hybrid power systems for remote locations
Grid-interactive applications with battery charging and feed-in capability
Industrial and commercial power management with remote monitoring
Specialized control features for micro-hydropower plants

Customization & Ordering

Manufactured in China with CE certification. Features PWM unloading + three-phase unloading system. Delivery within 25 working days with secure packaging.
