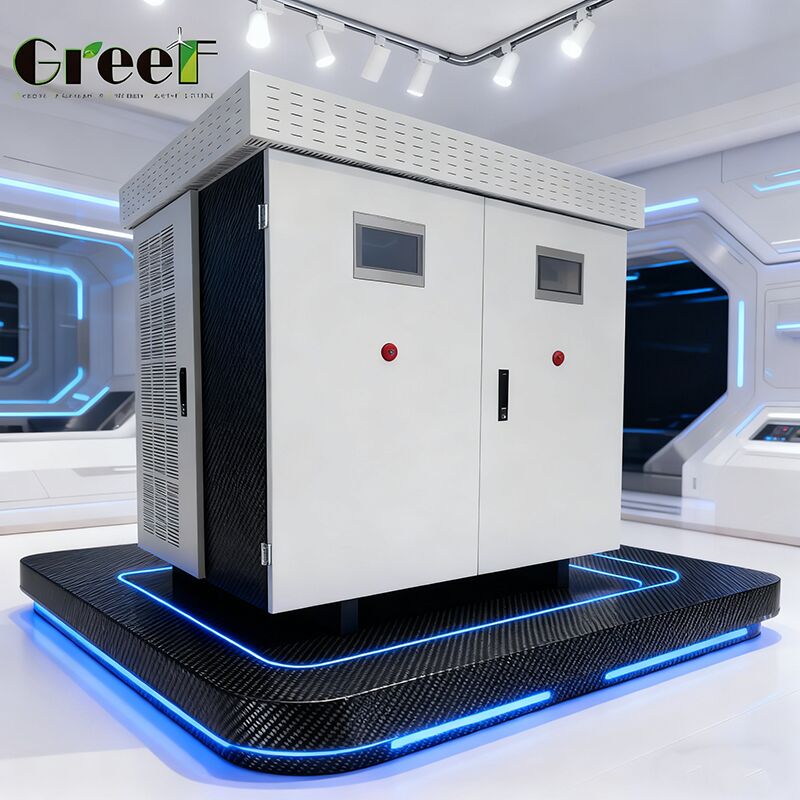

Name: Lithium-ion Battery On Grid Controller with LCD SMART Touch Screen and 95% Maximum Efficiency for Power Control
Brand: Qingdao Greef New Energy Equipment Co., Ltd
SKU: AC PCS
Price: 1,730.00 USD
Availability: InStock

Home > Products > On Grid Controller >

Lithium-ion Battery On Grid Controller with LCD SMART Touch Screen and 95% Maximum Efficiency for Power Control

Lithium-ion Battery On Grid Controller

LCD SMART Touch Screen Grid Tied Controller

95% Maximum Efficiency Energy Management Controller

Brand Name:

Greef

Certification:

Model Number:

AC PCS

Request A Quote

Lithium-ion Battery On Grid Controller with LCD SMART Touch Screen and 95% Maximum Efficiency for Power Control

Product Details

Max Charging&discharging Current(A):

250

Communication Mode:

Ethemet, RS485, WIFI

Rated Grid Voltage(V):

400

Rated Battery Voltage(Vdc):

400

Rated Grid Frequency(Hz):

50Hz/60Hz

Maximum Efficiency(%):

95%

Rated Charge And Discharge Current(A):

144

Rated Power(kW):

100

Payment & Shipping Terms

Minimum Order Quantity

1Set

Price

Negotiable

Packaging Details

Foam+plywooden Case

Delivery Time

25 Working Days

Payment Terms

T/T,Western Union,MoneyGram,L/C

Supply Ability

AC Generator-Battery Hybrid Converter with 450 Vac Optimal Generator Rated Voltage and LCD SMART Touch Screen Display for 50/60 Hz Rated Grid Frequency

Get Best Price

LCD Smart Touch Screen On Grid Controller with 240-550V AC Voltage Range and 95% Maximum Efficiency for Energy Management

Get Best Price

AC Generator-Battery Hybrid Converter with 95% Maximum Efficiency and 240-550V AC Voltage Range Featuring RS485 Communication Mode

Get Best Price

95% Maximum Efficiency On Grid Controller with LCD Smart Touch Screen and Lithium-Ion Battery for Energy Management

Get Best Price

Contact Now

Product Description

GREEF ENERGY Multi-Functional On Grid Controller

The GREEF ENERGY multi-functional converter integrates multiple power management functions into a single advanced system. This versatile device performs AC-to-DC rectification for permanent magnet generators, manages battery charging operations, and executes DC-to-AC inversion with precision.

Featuring a customizable dual LCD touchscreen interface, this converter utilizes cutting-edge technology to maintain stable voltage and frequency control for permanent magnet synchronous generators (PMSGs), ensuring reliable continuous power supply to connected loads.

The system can be programmed for grid-tied operation, enabling synchronization with electrical grids for enhanced functionality and grid charging capabilities, providing optimal performance in both standalone and grid-connected configurations.

Technical Specifications

Generator AC Input Parameters

Rated Power	100 kW
Rated Voltage	≥320 Vac (Optimal: 450 Vac)
AC Voltage Range	240-550 Vac
Maximum AC Current	180 A

Battery Input Specifications

Battery Type	Lithium-ion
Voltage Range	350-450 Vdc
Rated Battery Voltage	400 Vdc
Max Charge/Discharge Current	250 A

Grid-Connected Output Parameters

Rated Power	100 kW (Max: 120 kW)
Rated Current	144 A (Max: 173 A)
Grid Voltage	400 V (Range: 300-460 V)
Grid Frequency	50 Hz / 60 Hz
Total Harmonic Distortion	<3%
Power Factor	>0.99 (Range: -1 to 1)
Overload Capacity	1.2× nominal power for 1 minute

System Protection & Performance

Maximum Efficiency	95%
Operating Temperature	-40°C to 60°C
Protection Level	IP54
Cooling Method	Intelligent Air Cooling
Maximum Altitude	4,000 meters
Standby Power Consumption	<50 W

Display & Communication

Display Type	LCD SMART Touch Screen
Communication Modes	Ethernet, RS485, WiFi
Display Parameters	Generator speed, input voltage/current, output power, grid voltage/current, cumulative power generation data

Physical Specifications

Dimensions (H×W×D)	1500 × 1500 × 1300 mm
Weight (excl. dump load)	Up to 600 kg

Applications

Renewable Energy Systems: Integration of PMSGs from wind turbines or hydro turbines into off-grid or hybrid power setups
Off-Grid & Backup Power: Central power conversion and management for remote locations, cabins, telecom stations
Grid-Interactive Systems: Grid-tied operation for battery charging and potential power export
Industrial & Commercial Power: Stable power supply for unbalanced loads with remote monitoring capabilities
Specialized Control: Water gate motor control for micro-hydropower plants and Static Transfer Switch integration

This central platform consolidates power generation, storage, consumption control, and grid connection functionalities with modular, configurable design for residential, commercial, and small-scale power plant applications.

Customization Options

Greef offers comprehensive customization services for the AC PCS On Grid Controller, manufactured in China with CE certification. Minimum order quantity is just 1 set.

Key Customization Features:

Advanced PWM unloading + three-phase unloading system
LCD SMART Touch Screen display for user-friendly operation
Rated grid frequency: 50Hz/60Hz

Ordering & Delivery:

Secure packaging with foam and plywood cases
Standard delivery: 25 working days
Payment terms: T/T, Western Union, MoneyGram, L/C
Negotiable pricing to accommodate project requirements
