Home > Products > On Grid Controller >

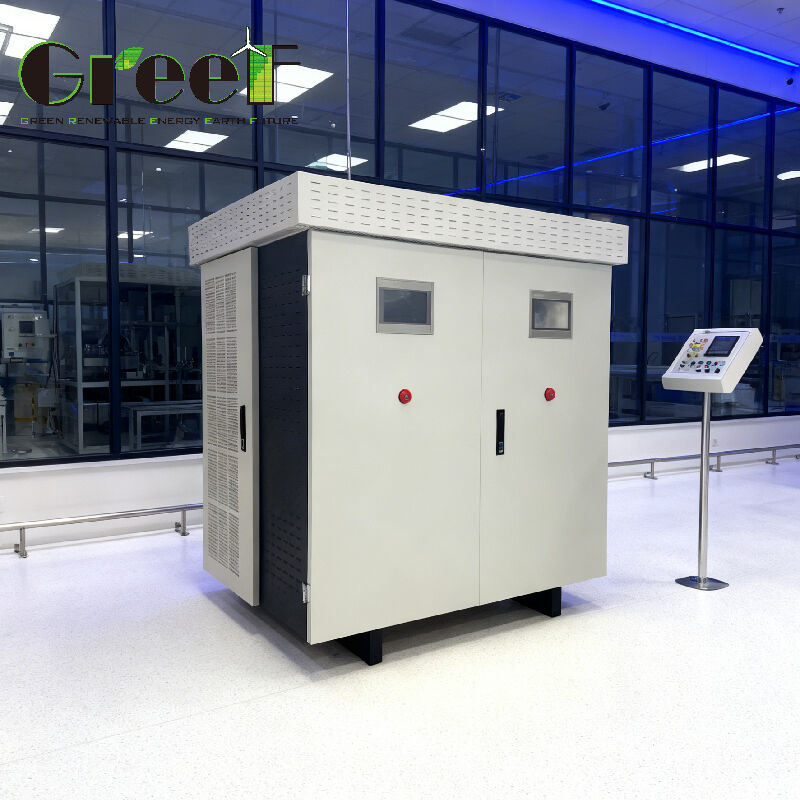

On Grid Controller with Lithium-ion Battery 240-550V AC Voltage Range and Intelligent Air Cooling for Energy Management

On Grid Controller with Lithium-ion Battery 240-550V AC Voltage Range and Intelligent Air Cooling for Energy Management

Lithium-ion Battery On Grid Controller

240-550V AC Voltage Range AC Generator-Battery Hybrid Converter

Intelligent Air Cooling Energy Management Controller

Brand Name:

Greef

Certification:

CE

Model Number:

AC PCS

Contact Us
Request A Quote
On Grid Controller with Lithium-ion Battery 240-550V AC Voltage Range and Intelligent Air Cooling for Energy Management
Product Details
Rated Voltage(Vac):
≥ 320
Cooling Method:
Intelligent Air Cooling
Max Charging&discharging Current(A):
250
AC Votlage Working Range(Vac):
240 ~ 550
Communication Mode:
Ethemet, RS485, WIFI
Rated Charge And Discharge Current(A):
144
Battery Voltage Range(Vdc):
350 - 450
Battery Type:
Lithium-ion
Highlight:

Lithium-ion Battery On Grid Controller

,

240-550V AC Voltage Range AC Generator-Battery Hybrid Converter

,

Intelligent Air Cooling Energy Management Controller

Payment & Shipping Terms
Minimum Order Quantity
1Set
Price
Negotiable
Packaging Details
Foam+plywooden Case
Delivery Time
25 Working Days
Payment Terms
T/T,Western Union,MoneyGram,L/C
Supply Ability
Supply Ability
RELATED PRODUCTS
Good price Hybrid Converter with 150V-550V AC Voltage Range 95% Maximum Efficiency and LCD Smart Touch Screen for Energy Management online Video

Hybrid Converter with 150V-550V AC Voltage Range 95% Maximum Efficiency and LCD Smart Touch Screen for Energy Management

Get Best Price
Good price Professional 5kw to 100kw Grid-Tied Wind Controller with LCD Touch Screen and Remote Monitor by APP online Video

Professional 5kw to 100kw Grid-Tied Wind Controller with LCD Touch Screen and Remote Monitor by APP

Get Best Price
Good price Ground Fault Monitoring Yes On Grid Controller Rated Power Hydro Inverter 100kw 150kw 200kw 250kw 300kw 500kw 600kw 700kw 800kw 1000kw AC Voltage 150V 550V online Video

Ground Fault Monitoring Yes On Grid Controller Rated Power Hydro Inverter 100kw 150kw 200kw 250kw 300kw 500kw 600kw 700kw 800kw 1000kw AC Voltage 150V 550V

Get Best Price
Good price 700kw Hybrid Convertor Featuring Intelligent Air Cooling and Maximum Efficiency 95 Designed for Solar Power Conversion Hydro Inverter online Video

700kw Hybrid Convertor Featuring Intelligent Air Cooling and Maximum Efficiency 95 Designed for Solar Power Conversion Hydro Inverter

Get Best Price
Contact Us
Contact Now
Product Description
AC Generator-Battery Hybrid Converter
The GREEF ENERGY multi-functional converter combines AC-to-DC rectification for permanent magnet generators, battery charging, and DC-to-AC inversion with comprehensive energy management for optimized power flow.
Technical Specifications
Parameter Specification
Model Mars-100kt
Rated Power 100 kW
Rated Voltage ≥ 320 Vac
Optimal Generator Voltage 450 Vac
AC Voltage Working Range 240 - 550 Vac
Maximum AC Current 180 A
Battery Type Lithium-ion
Battery Voltage Range 350 - 450 Vdc
Rated Battery Voltage 400 Vdc
Maximum Efficiency 95%
Generator AC Input
Rated power of 100 kW with AC voltage working range from 240 to 550 Vac and maximum AC current of 180 A.
Battery Input
Lithium-ion battery system with voltage range of 350-450 Vdc and maximum charging/discharging current of 250 A.
Grid-Connected Output
Rated charging/discharging power of 100 kW, grid voltage range of 300-460 V, and support for 50/60 Hz frequencies.
Protection & Safety
  • Over-voltage and speed protection
  • AC short-circuit protection
  • AC output overcurrent protection
  • Level 2 surge protection
Operating Conditions
Ambient temperature range: -40℃ to 60℃ • Protection level: IP54 • Maximum altitude: 4,000 meters
Applications
This versatile converter is designed for reliable power management across multiple applications:
  • Renewable energy systems with Permanent Magnet Synchronous Generators
  • Off-grid and backup power for remote locations and telecom stations
  • Grid-interactive systems for enhanced energy efficiency
  • Industrial and commercial power supply with remote monitoring
  • Micro-hydropower plants with water gate motor control
Customization Services
Greef Energy AC PCS On Grid Controller with LCD SMART Touch Screen display
Greef offers customized On Grid Controller solutions (AC PCS model) with advanced power curve controller functionality. Features include:
  • Sophisticated topology with AC-DC Rectifier, DC-DC Buck Boost, and DC-AC Inverter
  • High-resolution LCD SMART Touch Screen display
  • CE certified for quality and safety
  • Minimum order: 1 set with negotiable pricing
  • Secure packaging with foam and plywood cases
  • Delivery: 25 working days
  • Payment options: T/T, Western Union, MoneyGram, L/C
