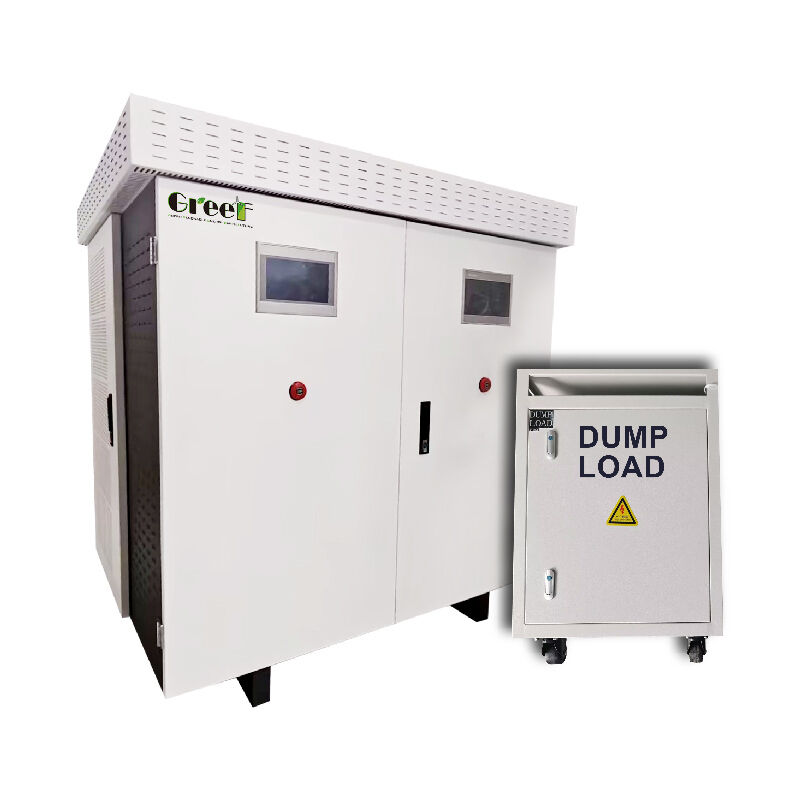

Name: AC Generator-Battery Hybrid Converter with 95% Maximum Efficiency and 240-550V AC Voltage Range Featuring RS485 Communication Mode
Brand: Qingdao Greef New Energy Equipment Co., Ltd
SKU: AC PCS
Price: 1,730.00 USD
Availability: InStock

Home > Products > On Grid Controller >

AC Generator-Battery Hybrid Converter with 95% Maximum Efficiency and 240-550V AC Voltage Range Featuring RS485 Communication Mode

95% Maximum Efficiency AC Generator-Battery Hybrid Converter

240-550V AC Voltage Range On Grid Controller

RS485 Communication Mode Energy Management Controller

Brand Name:

Greef

Certification:

Model Number:

AC PCS

Request A Quote

AC Generator-Battery Hybrid Converter with 95% Maximum Efficiency and 240-550V AC Voltage Range Featuring RS485 Communication Mode

Product Details

Ambient Temperature(℃):

-40 ~ 60

Maximum AC Current(A):

180

Rated Grid Voltage(V):

400

Rated Voltage(Vac):

≥ 320

Rated Grid Frequency(Hz):

50 / 60

Topology:

AC-DC Reticifier ,DC- DC Buck Boost ,DC-AC Invertor.EMS

AC Votlage Working Range(Vac):

240 ~ 550

Rated Charge And Discharge Current(A):

144

Payment & Shipping Terms

Minimum Order Quantity

1Set

Price

Negotiable

Packaging Details

Foam+plywooden Case

Delivery Time

25 Working Days

Payment Terms

T/T,Western Union,MoneyGram,L/C

Supply Ability

AC Generator-Battery Hybrid Converter with 450 Vac Optimal Generator Rated Voltage and LCD SMART Touch Screen Display for 50/60 Hz Rated Grid Frequency

Get Best Price

LCD Smart Touch Screen On Grid Controller with 240-550V AC Voltage Range and 95% Maximum Efficiency for Energy Management

Get Best Price

AC Generator-Battery Hybrid Converter with 95% Maximum Efficiency and 240-550V AC Voltage Range Featuring RS485 Communication Mode

Get Best Price

95% Maximum Efficiency On Grid Controller with LCD Smart Touch Screen and Lithium-Ion Battery for Energy Management

Get Best Price

Contact Now

Product Description

AC Generator-Battery Hybrid Converter

Advanced RS485 communication with power curve controller function ensures maximum 95% efficiency, optimized for solar power and wind energy systems.

Product Overview

The GREEF ENERGY multi-functional converter integrates AC-to-DC rectification for permanent magnet generators, battery charging, DC-to-AC inversion, and comprehensive energy management into a single versatile device.

Featuring a configurable dual LCD touchscreen for intuitive monitoring and control, this converter employs advanced technology to maintain stable voltage and frequency control for permanent magnet synchronous generators (PMSGs), ensuring reliable continuous power supply.

Grid-tied operation mode enables synchronization with electrical grids, supporting both regular operation and grid charging for enhanced flexibility across various power scenarios.

Key Features

EMS Smart Energy Management System

Multiple configurable operating modes: off-grid, grid-tied, and grid charging
Double LCD smart touch screen display for intuitive user interface
Generator power curve tracking technology for optimized performance
AC/DC dual backup for reliable auxiliary power during interruptions
Advanced control technology for handling unbalanced loads
RS485 Modbus RTU protocol for seamless device communication
Optional PMW dump load function for over-voltage and over-speed protection
Optional water gate motor control and WIFI/LAN remote monitoring
Customized sensor control functions and Static Transfer Switch (STS) support

Technical Specifications

Model	Mars-100kt
Rated Power	100 kW
Rated Voltage	≥ 320 Vac
Optimal Generator Rated Voltage	450 Vac
AC Voltage Working Range	240 - 550 Vac
Maximum AC Current	180 A
Battery Type	Lithium-ion
Battery Voltage Range	350 - 450 Vdc
Rated Battery Voltage	400 Vdc
Maximum Charging & Discharging Current	250 A
Maximum Efficiency	95%
Rated Grid Voltage	400 V
Permissible Grid Voltage Range	300 - 460 V
Rated Grid Frequency	50 / 60 Hz

Grid-Connected Performance

Rated charging/discharging power: 100 kW (max 120 kW) • Rated charge/discharge current: 144 A (max 173 A) • Current THD < 3% • Power factor > 0.99 (range -1 to 1) • Overload capacity: 1.2x nominal power for 1 minute

Off-Grid Performance

Rated input voltage: 400 V (±2%) • THD under linear load: < 3%

Protection Features

Optional overvoltage and speed protection • AC short-circuit protection • AC output overcurrent protection • Level 2 surge protection

Applications

Renewable Energy Systems: Integrates PMSG from wind turbines or hydro turbines into off-grid or hybrid power setups

Off-Grid and Backup Power: Manages generator inputs, battery charging, and inverter outputs for remote locations, cabins, and telecommunications stations

Grid-Interactive Systems: Grid-tied operation for battery charging and potential grid feedback

Industrial Power Management: Handles unbalanced loads with remote monitoring via WIFI/LAN and Modbus protocol integration

Specialized Controls: Water gate motor control for micro-hydropower and Static Transfer Switch for seamless grid/off-grid transitions

Customization Options

Greef offers customized On Grid Controller solutions (model AC PCS) with CE certification. Minimum order quantity: 1 set with negotiable pricing.

Features include advanced DC-DC switching controllers, PWM unloading + three-phase unloading system, and wind generator controller functionality.

Standby power consumption: < 50W • Grid voltage range: 300-460V • Maximum efficiency: 95% • Grid frequency: 50/60 Hz • Maximum AC current: 180A

Delivery: Approximately 25 working days • Payment: T/T, Western Union, MoneyGram, L/C

Packaging & Shipping

Product Packaging

Secure packaging with custom-fitted foam inserts in sturdy cardboard boxes. Includes controller device, user manual, mounting accessories, and necessary cables.

Shipping Information

Orders processed within 1-2 business days • Trusted carriers with tracking • Insurance coverage • International shipping available
