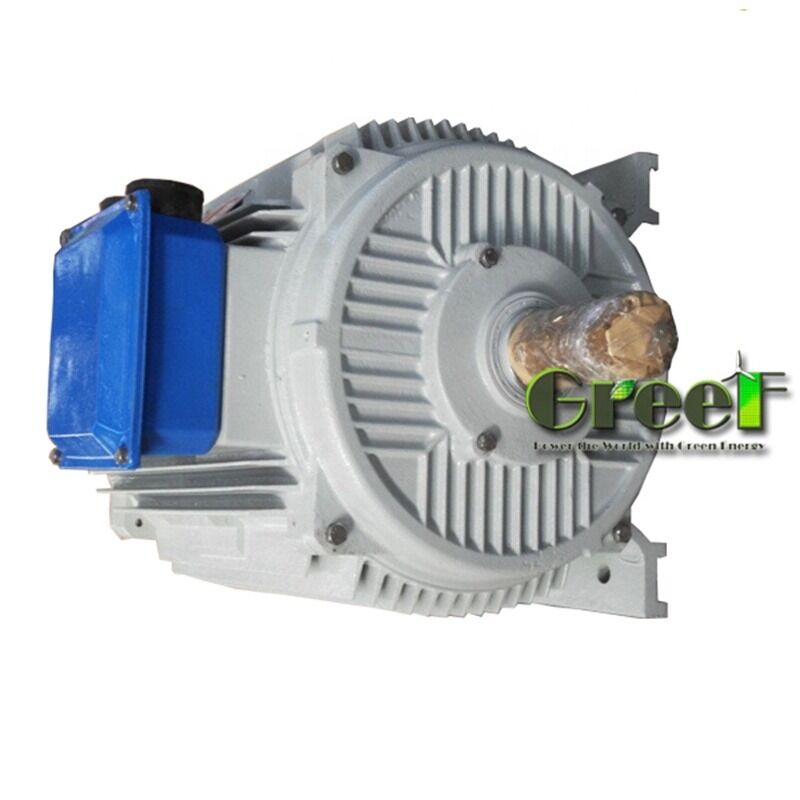

Permanent Magnet Motor with Class F Insulation, Customizable Number of Poles, and 0-3000 RPM Speed Range for Industrial Machinery

Class F Insulation Permanent Magnet Motor

Customizable Number of Poles Brushless DC Motor

0-3000 RPM Speed Range Permanent Magnet Synchronous Motor

Brand Name:

Greef

Certification:

Model Number:

TYP

Request A Quote

Product Details

Speedrange:

0-3000 RPM

Voltage:

Customization

Number Of Poles:

Customization

Insulationclass:

Class F

Classification Of Degrees:

IP54

Motortype:

Brushless DC Motor

Rated Power:

750W-5MW

Mountingtype:

Flange Mount

Payment & Shipping Terms

Minimum Order Quantity

1Set

Price

Negotiable

Packaging Details

Foam+plywooden Case

Delivery Time

25 Working Days

Payment Terms

T/T,Western Union,MoneyGram,L/C

Supply Ability

Permanent Magnet Motor with Class F Insulation, Customizable Number of Poles, and 0-3000 RPM Speed Range for Industrial Machinery

Get Best Price

Video

IP54 Rated Permanent Magnet Motor with Class F Insulation and 0-3000 RPM for Harsh Industrial Environments

Get Best Price

IP54 Rated Permanent Magnet Motor with 85% Efficiency and 0-3000 RPM Speed Range for Heavy Duty Applications

Get Best Price

IP54 Permanent Magnet Motor with 100Mohm Min Insulating Resistance and 0-3000 RPM Speed Range for Heavy Machinery

Get Best Price

Contact Now

Product Description

Permanent Magnet Motor with Class F Insulation and Customizable Poles

Product Overview

Permanent magnet motors feature rotors with integrated permanent magnets, delivering enhanced efficiency and superior power density relative to their size. These motors are typically controlled by frequency inverters, maintaining consistent torque across a broad speed range while operating efficiently even at low speeds without forced ventilation.

The W21 permanent magnet motors are engineered for low operating speeds, minimal noise production, and excellent energy-saving performance, making them ideal for applications requiring quiet and efficient operation.

Key Features

High Efficiency and Energy Conservation for cost-effective operation
Consistent Torque Across Wide Speed Range for reliable performance
Extended Bearing Life with minimal maintenance requirements
High-Performance Permanent Magnets for superior magnetic strength
Built-in Thermal Protection for safe operation
Synchronous Operation with stable speed control
Low Operating Current for reduced energy consumption
Reduced Temperature Rise for enhanced longevity
Wide Range of Applications across multiple industries
Considerable Cost Savings through energy efficiency and durability

Technical Specifications

Parameter	Specification
Voltage	Customization
Efficiency	85%
Protection Class	IP54
Insulating Resistance	100Mohm Min (500Vdc)
Rated Power	750W-5MW
Motor Type	Permanent Magnet
Motor Design	Brushless DC Motor
Mounting Type	Flange Mount
Insulation Class	Class F
Number Of Poles	Customization

Industrial Applications

TYP series high-efficiency permanent magnet frequency conversion synchronous motors deliver superior performance and energy-saving capabilities across various industrial applications.

These motors are extensively used in injection molding machines, air compressors, pipe making equipment, hydraulic machinery, food processing equipment, and pharmaceutical manufacturing systems. Their robust design also makes them suitable for cement pipe making machines, plastic extruders, and wire drawing machines.

Customization Options

Greef offers comprehensive customization for TYP series Permanent Magnet Motors with rated power from 750W to 5MW and speed range of 0-3000 RPM. These brushless DC motors feature flange mounting and CE certification for international compliance.

Minimum order quantity starts at 1 set with negotiable pricing. Products are securely packaged in foam and plywood cases with delivery within approximately 25 working days. Payment options include T/T, Western Union, MoneyGram, and L/C.

Packaging & Shipping

Each Permanent Magnet Motor is carefully wrapped in protective materials and placed in custom-designed boxes to ensure safe transit. We use reliable carriers with tracking options and offer various shipping methods to meet specific requirements.

All motors undergo thorough inspection and testing before dispatch, ensuring quality performance and a seamless purchasing experience from packaging to delivery.
