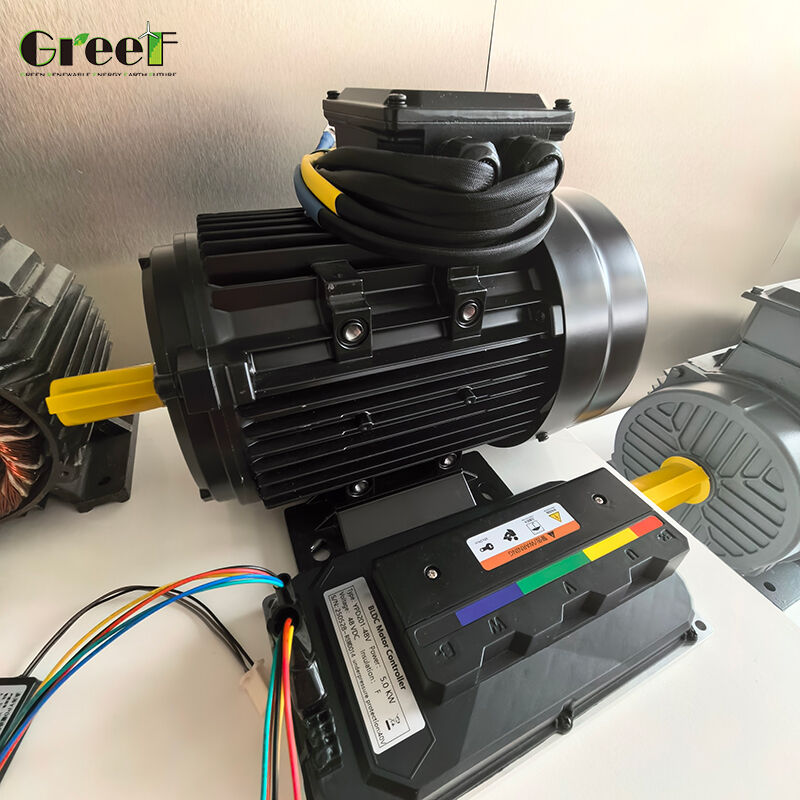

IP54 Rated Magnet Motor Generator with Class F Insulation
Designed for reliable power generation in harsh industrial environments, this permanent magnet motor generator delivers exceptional performance and energy efficiency.
Product Overview
Permanent magnet motors feature rotors embedded with permanent magnets, providing enhanced efficiency and increased power density relative to motor frame size. These motors are typically powered by frequency inverters, maintaining consistent torque across a broad speed range while operating efficiently even at low speeds without forced ventilation.
W21 permanent magnet motors are characterized by low operational speeds, reduced noise levels, and energy-saving capabilities, making them ideal for applications demanding quiet and efficient performance.
Energy Savings: Replacing an IE2 (GB3) induction motor with a TYP Magnet Ultra Premium can save approximately 9000 RMB in energy costs per year.*
*Comparison between 37kW 1500 rpm motors, considering 24 hours/365 days operation at average energy cost of 1 RMB/kWh.
Key Features
- High efficiency design for significant energy savings
- Consistent torque across wide speed range
- Long-lasting bearing life with minimal maintenance
- High-performance permanent magnets for superior efficiency
- Integrated thermal protection against overheating
- Synchronous operation for stable speed control
- Low current consumption reducing electrical load
- Lower temperature rise enhancing longevity
- Broad application range across multiple industries
- Significant cost savings through efficiency and durability
Technical Specifications
| Insulating Resistance |
100Mohm Min (500Vdc) |
| Mounting Type |
Flange Mount |
| Speed Range |
0-3000 RPM |
| Voltage |
Customization |
| Insulation Class |
Class F |
| Motor Type |
Permanent Magnet |
| Number Of Poles |
Customization |
| Classification Of Degrees |
IP54 |
| Rated Power |
750W - 5MW |
| Motor Type (Brushless) |
Brushless DC Motor |
Applications
The TYP series consists of high-efficiency permanent magnet synchronous motors designed for frequency conversion applications, offering superior performance and energy savings across various industries.
Common applications include:
- Injection molding machines
- Air compressors and pipe making equipment
- Hydraulic machinery
- Food processing machines
- Cement pipe manufacturing
- Plastic extrusion processes
- Wire drawing machines
- Pharmaceutical equipment
Customization Options
Greef offers customized Permanent Magnet Motor solutions (model TYP) with CE certification. Our power-saving motors feature high power factor construction for maximum performance.
Customization includes voltage and insulation class F options, with rated power ranging from 750W to 5MW and IP54 protection rating.
Each motor is packaged in foam and plywood cases for safe delivery. Minimum order quantity is 1 set with negotiable pricing. Delivery time is typically 25 working days with payment options including T/T, Western Union, MoneyGram, and L/C.
Packaging & Shipping
Our Permanent Magnet Motors are securely wrapped with protective materials and placed in sturdy, custom-designed boxes with proper cushioning. We use reliable carriers with tracking information and apply fragile handling labels for extra care.
Packaging meets international shipping standards and customized options are available upon request. We ensure prompt and safe worldwide delivery while maintaining the highest quality throughout the shipping process.
