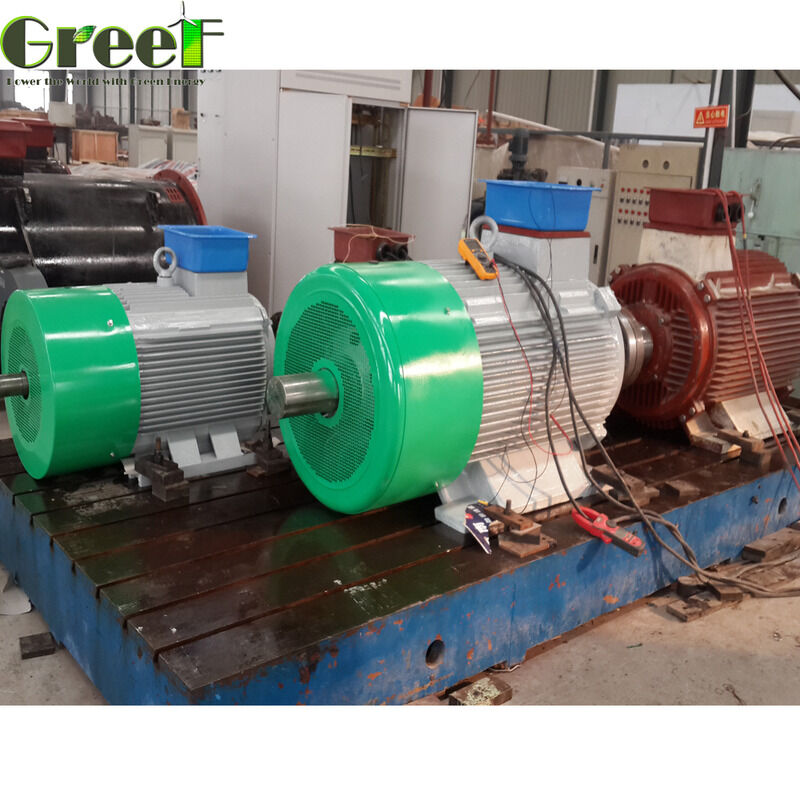

IP54 Rated Permanent Magnet Motor with 85% Efficiency and 0-3000 RPM Speed Range for Heavy Duty Applications

IP54 Rated Permanent Magnet Motor

85% Efficiency Brushless DC Motor

0-3000 RPM Synchronous Motor

Brand Name:

Greef

Certification:

Model Number:

TYP

Request A Quote

IP54 Rated Permanent Magnet Motor with 85% Efficiency and 0-3000 RPM Speed Range for Heavy Duty Applications

Product Details

Insulating Resistance:

100Mohm Min(500Vdc)

Speedrange:

0-3000 RPM

Voltage:

Customization

Insulationclass:

Class F

Mountingtype:

Flange Mount

Number Of Poles:

Customization

Rated Power:

750W-5MW

Productname:

Permanent Magnet Motor

Payment & Shipping Terms

Minimum Order Quantity

1Set

Price

Negotiable

Packaging Details

Foam+plywooden Case

Delivery Time

25 Working Days

Payment Terms

T/T,Western Union,MoneyGram,L/C

Supply Ability

Permanent Magnet Motor with Class F Insulation, Customizable Number of Poles, and 0-3000 RPM Speed Range for Industrial Machinery

Get Best Price

Video

IP54 Rated Permanent Magnet Motor with Class F Insulation and 0-3000 RPM for Harsh Industrial Environments

Get Best Price

IP54 Rated Permanent Magnet Motor with 85% Efficiency and 0-3000 RPM Speed Range for Heavy Duty Applications

Get Best Price

IP54 Permanent Magnet Motor with 100Mohm Min Insulating Resistance and 0-3000 RPM Speed Range for Heavy Machinery

Get Best Price

Contact Now

Product Description

IP54 Rated Permanent Magnet Motor

High-efficiency 85% rated motor designed for heavy-duty machinery and long-lasting operation

Product Overview

Permanent magnet motors feature rotors with embedded permanent magnets, delivering superior efficiency and higher power density relative to motor frame size. These motors are typically controlled using frequency inverters, providing consistent torque across a broad speed range while maintaining high efficiency even at low speeds without forced ventilation.

The W21 series magnet motors operate at low speeds with minimal noise generation and offer significant energy savings, making them ideal for applications requiring quiet and efficient operation.

Key Features

High efficiency and energy conservation for optimal performance with reduced power consumption
Consistent torque output across wide speed range for versatile application performance
Extended bearing life with minimal maintenance requirements
Advanced high-performance permanent magnets for enhanced magnetic field strength
Built-in thermal protection system for overheating prevention and extended lifespan
Synchronous operation with stable speed for precise performance
Low operating current to reduce electrical load and improve energy efficiency
Reduced temperature rise during operation for reliable functionality
Wide range of industrial applications across multiple sectors
Significant cost savings through energy efficiency and reduced maintenance

Energy Savings Example: Replacing an IE2 (GB3) induction motor with a TYP Magnet Ultra Premium can save approximately 9000 RMB in energy costs per year.

Comparison based on 37kW 1500 rpm motors operating 24 hours daily, 365 days annually with average energy cost of 1 RMB/kWh

Technical Specifications

Product Name	Permanent Magnet Motor
Motor Type	Brushless DC Motor, Permanent Magnet
Mounting Type	Flange Mount
Speed Range	0-3000 RPM (customizable low speed)
Efficiency	85% (power saving motor)
Protection Rating	IP54
Voltage	Customization
Number of Poles	Customization
Insulation Class	Class F
Special Feature	Large starting pitch motor

Applications

The TYP series high-efficiency permanent magnet frequency conversion synchronous motors deliver reliable performance and energy-saving features for modern industrial machinery. These motors are commonly used in:

Injection molding machines
Air compressors and pipe making equipment
Hydraulic machinery
Food processing equipment
Cement pipe making machines
Plastic extruders
Wire drawing machines
Pharmaceutical equipment

Customization Services

Greef offers comprehensive customization for the TYP Permanent Magnet Motor. This high power density motor is designed to meet diverse application requirements with exceptional performance and reliability.

Manufactured in China with CE certification, our magnet motor generator ensures quality compliance with international standards. Customization options include voltage and number of poles to precisely match your requirements.

With a minimum order quantity of 1 set and negotiable pricing, we provide flexible payment terms including T/T, Western Union, MoneyGram, and L/C. Standard delivery time is 25 working days.

Packaging and Shipping

Each Permanent Magnet Motor is securely wrapped with protective materials and placed in sturdy, custom-designed boxes with foam and plywood cases for maximum protection during transit.

We offer multiple shipping options including standard ground shipping, expedited delivery, and freight services for bulk orders. All shipments are tracked with prompt tracking information provided to customers.
