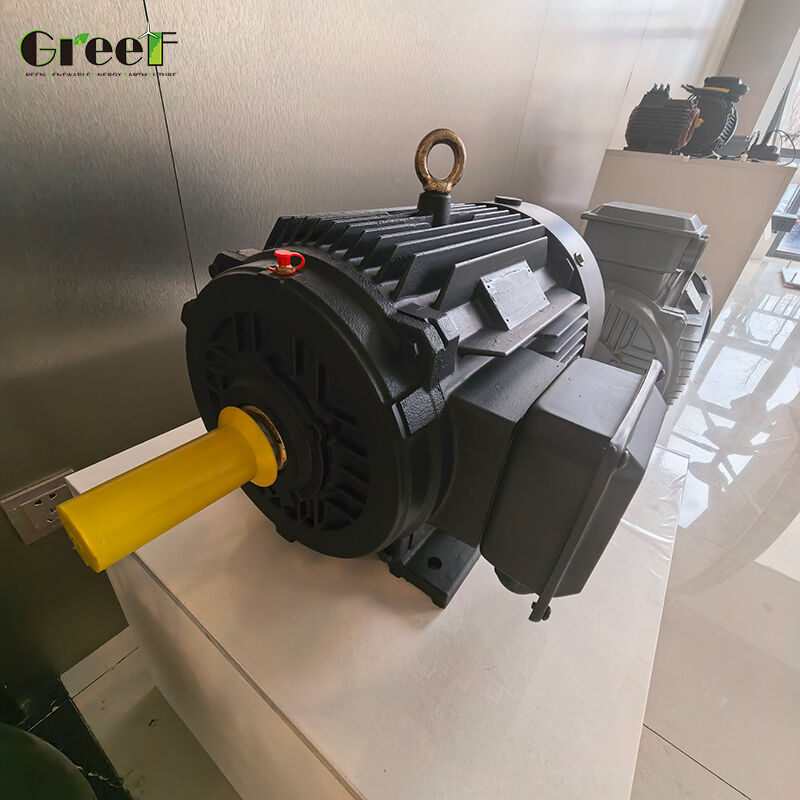

Customizable Permanent Magnet Motor with Insulating Resistance 100Mohm Min 500Vdc, Insulation Class F, and 0-3000 RPM Speed Range

Insulating Resistance 100Mohm Min 500Vdc Permanent Magnet Motor

Insulation Class F Brushless DC Motor

0-3000 RPM Synchronous Motor

Brand Name:

Greef

Certification:

Model Number:

TYP

Request A Quote

Product Details

Speedrange:

0-3000 RPM

Efficiency:

85%

Voltage:

Customization

Rated Power:

750W-5MW

Classification Of Degrees:

IP54

Insulationclass:

Class F

Motortype:

Brushless DC Motor

Productname:

Permanent Magnet Motor

Payment & Shipping Terms

Minimum Order Quantity

1Set

Price

Negotiable

Packaging Details

Foam+plywooden Case

Delivery Time

25 Working Days

Payment Terms

T/T,Western Union,MoneyGram,L/C

Supply Ability

Permanent Magnet Motor with Class F Insulation, Customizable Number of Poles, and 0-3000 RPM Speed Range for Industrial Machinery

Get Best Price

Video

IP54 Rated Permanent Magnet Motor with Class F Insulation and 0-3000 RPM for Harsh Industrial Environments

Get Best Price

IP54 Rated Permanent Magnet Motor with 85% Efficiency and 0-3000 RPM Speed Range for Heavy Duty Applications

Get Best Price

IP54 Permanent Magnet Motor with 100Mohm Min Insulating Resistance and 0-3000 RPM Speed Range for Heavy Machinery

Get Best Price

Contact Now

Product Description

Custom Permanent Magnet Motor with 100Mohm Insulating Resistance and Class F Insulation

Permanent magnet motors feature rotors with permanent magnets, delivering improved efficiency and higher power density relative to motor size. These motors are typically powered by frequency inverters, providing consistent torque across a broad speed range while maintaining high efficiency even at low speeds without forced ventilation.

The W21 permanent magnet motors are engineered for low-speed operation with minimal noise and exceptional energy efficiency, making them ideal for applications requiring quiet and economical performance.

Key Features and Benefits

Outstanding efficiency with significant energy savings
Constant torque across wide speed range
Extended bearing lifespan with minimal maintenance
High-performance permanent magnets for reliable operation
Integrated thermal protection for safety and longevity
Synchronous operation with precise speed control
Low operating current reducing electrical load
Reduced temperature rise under load conditions
Versatile application across multiple industries
Significant lifecycle cost savings

Technical Specifications

Product Name	Permanent Magnet Motor
Insulation Class	Class F
Mounting Type	Flange Mount
Insulating Resistance	100Mohm Min (500Vdc)
Number Of Poles	Customization
Efficiency	85%
Speed Range	0-3000 RPM
Rated Power	750W-5MW
Protection Class	IP54
Voltage	Customization

Industrial Applications

TYP series high-efficiency permanent magnet frequency conversion synchronous motors deliver reliable performance and energy-saving capabilities across demanding industrial applications.

Injection molding machines
Air compressors and pipe making equipment
Hydraulic machinery systems
Food processing machines
Cement pipe making machines
Plastic extruders and wire drawing machines
Pharmaceutical equipment

Customization Options

Greef offers comprehensive customization for our CE-certified TYP Permanent Magnet Motor with minimum order quantity of 1 set. Customizable voltage options and 0-3000 RPM speed range ensure perfect application fit.

Our brushless DC motors feature high power density, reliability, and 100Mohm minimum insulating resistance (500Vdc). Pricing is negotiable with secure foam and plywood packaging.

Delivery: 25 working days
Payment: T/T, Western Union, MoneyGram, L/C

Packaging and Shipping

Each Permanent Magnet Motor is securely packaged in custom-fitted foam inserts within sturdy cardboard boxes, protected against shocks and vibrations during transit.

Industrial-grade tape sealing and clear handling instructions ensure safe delivery. Multiple protective layers safeguard against moisture, dust, and external damage.

We offer standard, expedited, and freight shipping options with full tracking. Each motor undergoes final quality inspection before dispatch to ensure optimal performance.
