Name: Manual Brake On Grid Controller with LCD Touch Screen Grid Monitoring and 95% Maximum Efficiency for Advanced Voltage Regulation
Brand: Qingdao Greef New Energy Equipment Co., Ltd
SKU: AC PCS
Price: 1,730.00 USD
Availability: InStock

Home > Products > On Grid Controller >

Manual Brake On Grid Controller with LCD Touch Screen Grid Monitoring and 95% Maximum Efficiency for Advanced Voltage Regulation

LCD Touch Screen On Grid Controller

Grid Monitoring Generator Hybrid Converter

95% Maximum Efficiency Energy Management Controller

Brand Name:

Greef

Certification:

Model Number:

AC PCS

Request A Quote

Product Details

Lcd:

LCD Touch Screen

Product Type:

Generator Hybrid Convertor

Output Frequency:

50Hz/60Hz

Protectionfeatures:

Overvoltage, Overcurrent, Short Circuit, Anti-Islanding

Output Type:

AC-to-DC

Intergrated Dc Swich:

Option

Application:

Wind Turbine

Grid Monitoring:

Yes

Payment & Shipping Terms

Minimum Order Quantity

1Set

Price

Negotiable

Packaging Details

Foam+plywooden Case

Delivery Time

25 Working Days

Payment Terms

T/T,Western Union,MoneyGram,L/C

Supply Ability

High-Efficiency On Grid Controller with Lithium-ion Battery and 5-Year Warranty for Grid Connection

Get Best Price

Video

98% Efficiency On Grid Controller with LCD Touch Screen and 5-Year Warranty for Wind Turbine Control

Get Best Price

Video

High Efficiency On Grid Controller with Lithium-ion Battery and LCD Touch Screen for Energy Management

Get Best Price

Video

Lithium-ion Battery On Grid Controller with LCD Touch Screen and 95% Maximum Efficiency for Solar and Wind Systems

Get Best Price

Contact Now

Product Description

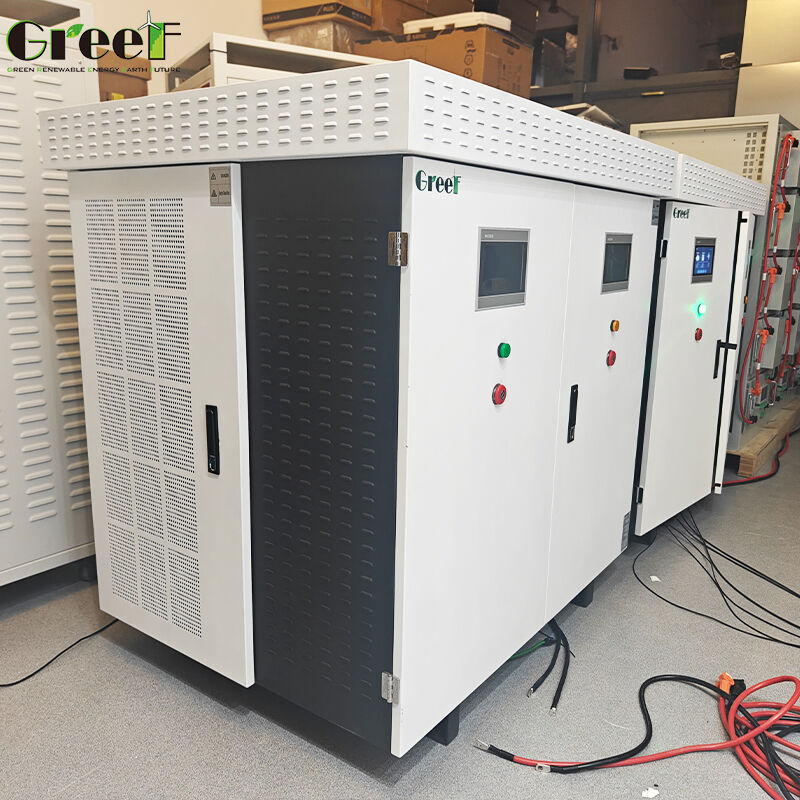

Manual Brake DC DC Switching Controllers with Grid Monitoring

The GREEF ENERGY multi-functional converter integrates multiple essential power functions into a single robust device. It provides AC-to-DC rectification specifically engineered for permanent magnet generators (PM generators), comprehensive battery charging capabilities, and DC-to-AC inversion. The integrated energy management system optimizes overall performance and efficiency.

Featuring a configurable dual LCD touchscreen interface, this converter utilizes advanced technology to maintain stable voltage and frequency control for permanent magnet synchronous generators (PMSGs), ensuring reliable and uninterrupted power supply to connected loads.

The system supports grid-tied operation for seamless integration with electrical grids, enabling both operational functionality and grid charging capabilities for enhanced energy management flexibility.

Key Features

EMS Smart Energy Management System

Multiple configurable operating modes: off-grid, grid-tied, and grid charging
Double LCD smart touch screen display for intuitive monitoring and control
Generator power curve tracking technology for optimized performance
AC/DC dual backup capabilities for reliable auxiliary power
Advanced control technology for unbalanced load management
RS 485 Modbus RTU protocol support for seamless device integration
Optional PWM dump load function for over-voltage and over-speed protection
Optional water gate motor control for hydro applications
WiFi/LAN remote monitoring and control via mobile app
Customized sensor control capabilities
Static Transfer Switch (STS) option for grid-tie and off-grid applications

Technical Specifications

Model: Mars-100kt

Parameter	Specification
Rated Power	100 kW
Rated Voltage	≥320 Vac
Optimal Generator Voltage	450 Vac
AC Voltage Working Range	240-550 Vac
Maximum AC Current	180 A
Battery Type	Lithium-ion
Battery Voltage Range	350-450 Vdc
Rated Battery Voltage	400 Vdc
Max Charging/Discharging Current	250 A
Rated Charging/Discharging Power	100 kW
Charge/Discharge Current Rating	144 A
Rated Grid Voltage	400 V
Grid Voltage Range	300-460 V
Supported Grid Frequencies	50/60 Hz
Maximum Efficiency	95%

Applications

The GREEF ENERGY multi-functional converter delivers versatile, intelligent power management solutions across diverse applications requiring reliable performance and advanced energy control.

Renewable Energy Systems: Integration with Permanent Magnet Synchronous Generators (PMSGs) from wind turbines and hydro turbines for off-grid or hybrid power setups
Off-grid & Backup Power: Central power conversion and management for remote locations, cabins, and telecom stations
Grid-Interactive Systems: Grid-tied operation with battery charging and potential energy feedback to the grid
Industrial & Commercial Power: Stable power delivery under unbalanced loads with remote monitoring and building management integration
Specialized Controls: Water gate motor control for micro-hydropower and Static Transfer Switch (STS) for seamless power source switching

This platform integrates power generation, storage, consumption management, and grid interfacing, adapting to complex scenarios from residential energy storage to commercial backup systems and small-scale renewable power plants.

Customization Options

GREEF ENERGY provides comprehensive customization services for the On Grid Controller (Model: AC PCS). This high-efficiency generator hybrid converter features advanced PWM unloading + three-phase unloading systems and supports lithium-ion batteries for wind turbine applications.

Product Details: CE certified, manufactured in China, efficiency ≥98%, LCD touch screen interface

Pricing & Ordering: Negotiable pricing, minimum order quantity: 1 set

Delivery: 25 working days with secure foam and plywood packaging

Payment Methods: T/T, Western Union, MoneyGram, L/C

Advanced Features: Powerful remote control system, PWM unloading + three-phase unloading system
