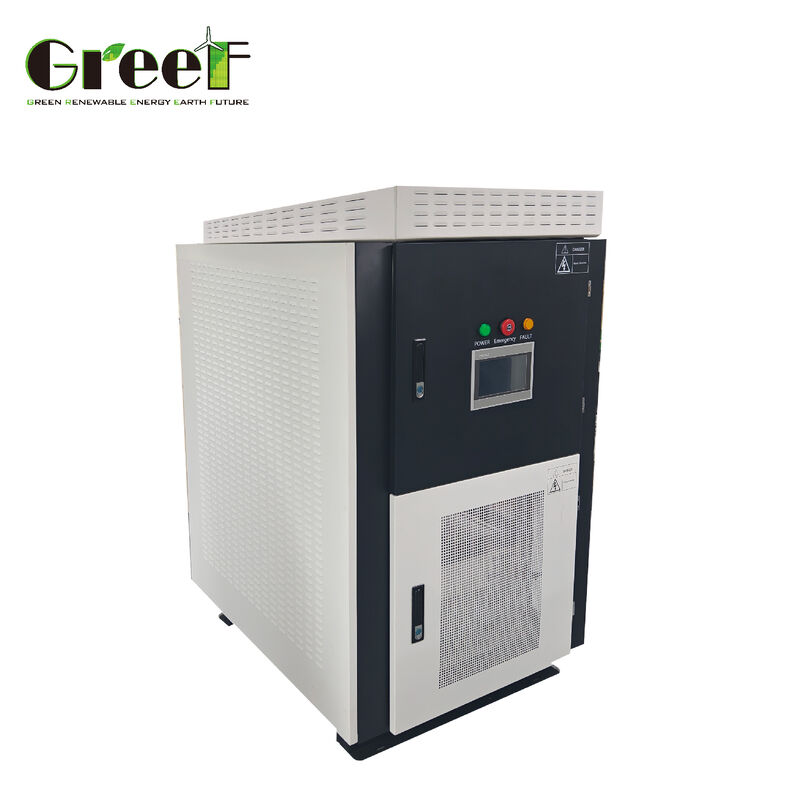

Intelligent Air Cooling On Grid Controller
The GREEF ENERGY Hydro Grid-tied Converter integrates multiple advanced functions into a single system. It performs AC-to-DC rectification for Permanent Magnet generators, DC-to-AC inversion, and includes a sophisticated energy management system. Featuring a configurable dual LCD touchscreen, the device offers user-friendly operation and adaptability to various needs.
Utilizing advanced converter technology, the system dynamically controls output power in real-time by monitoring turbine rotational speed. This enables precise regulation of voltage and frequency, essential for stable operation of Permanent Magnet Synchronous Generators (PMSGs), ensuring optimal performance and reliability.
The converter includes intelligent water gate control with integrated sensors for water level, flow, and pressure, creating a comprehensive safety framework. This system continuously monitors critical parameters to ensure secure and stable operation.
For seamless grid integration, the converter supports direct grid-tied operation, enabling grid charging and energy feedback capabilities. This allows the system to draw power when needed and feed excess energy back to the grid, enhancing overall energy efficiency.
Key Features
EMS Smart Energy Management System
- Multiple configurable operating modes: off-grid, grid-tied, or grid charging
- Double LCD smart touch screen display for intuitive user interaction
- Generator power curve tracking technology for optimized performance
- AC/DC dual backup for reliable auxiliary power supply
- Advanced control technology for managing unbalanced loads
- RS 485 Modbus RTU protocol for seamless communication
- Optional PWM dump load protection against overvoltage and overspeed
- Water gate motor control functionality
- Optional WIFI or LAN remote monitoring and control via app
- Customized sensor control functions
- Static Transfer Switch (STS) support for grid-tie and off-grid applications
Technical Specifications
| Output Type |
AC-to-DC |
| Display |
LCD SMART Touch Screen |
| Display Contents |
Generator Speed (rpm), Input Voltage (Vdc), Input Current (Vac), Output Power (kW), Grid Voltage (Vac), Grid Current (A), Power Generate Today (kWh), Power Generate This Month, Power Generate Last Month, Power Generate This Year, Power Generate Last Year, Power Curve Setting |
| Product Type |
Grid-tied Convertor |
| Protection Level |
IP54 |
| Display Mode |
LCD Touch Screen |
| Output Voltage |
400/450 VAC |
| Power |
100/150/200/250/300/400/500/600/700/800/1000 KW |
| Cooling Method |
Intelligent Air Cooling |
| Output Frequency |
50 Hz / 60 Hz |
| Operating Temperature |
-20°C to 60°C |
Applications
The Greef AC PCS On Grid Controller is ideal for efficient grid-tied conversion in renewable energy projects, particularly wind power generation. With power options from 100KW to 1000KW, it meets diverse project demands while monitoring wind turbine speed and wind speed for optimal performance and safety.
Designed for diverse environmental conditions (-20°C to 60°C operating range) and CE certified, this controller suits both domestic and international projects. The intuitive LCD touch screen interface enables easy monitoring and control, including wind turbine speed and wind speed parameters.
Perfect for wind power plants, hybrid renewable energy systems, and industrial applications requiring stable AC-to-DC conversion. Packaged in foam and plywood cases for safe delivery with a 25-working-day lead time.
Customization & Ordering
Greef offers customized AC PCS On Grid Controller solutions manufactured in China with CE certification. Minimum order quantity: 1 set with negotiable pricing.
Key customization features include touch screen display, remote control system, PWM unloading plus three-phase unloading system, input voltage range of 240-550 V DC, and communication modes (Ethernet, RS485, WIFI).
Packaging: Secure foam and plywood cases. Delivery time: 25 working days. Payment methods: T/T, Western Union, MoneyGram, L/C.
