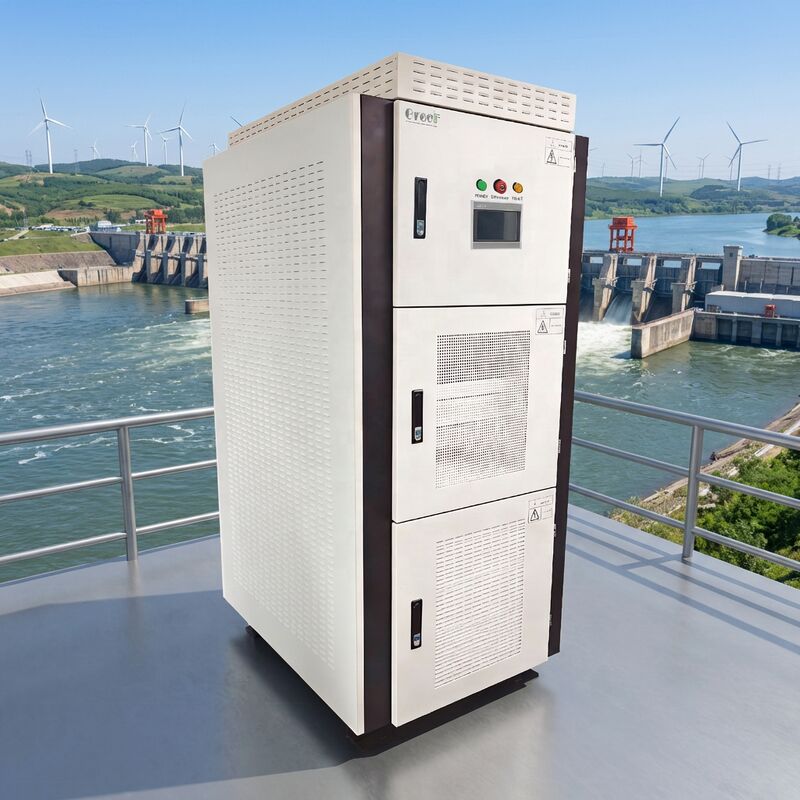

Generator Hybrid Converter with Multi-Functional Power Management
Advanced Power Conversion Technology
The GREEF ENERGY multi-functional converter integrates multiple power conversion functions into a single robust device. This advanced system performs AC to DC rectification for Permanent Magnet generators, battery charging operations, DC to AC inversion, and comprehensive energy management through an integrated EMS platform.
Featuring a customizable dual LCD touchscreen interface, this converter utilizes cutting-edge technology to maintain precise voltage and frequency control specifically optimized for Permanent Magnet Synchronous Generators (PMSGs). This ensures uninterrupted, reliable power supply for all connected loads.
The system also supports configurable grid-tied operation, enabling seamless synchronization with electrical grids for grid charging capabilities and smooth integration with utility power systems.
EMS Smart Energy Management System
The integrated EMS smart energy management system provides multiple configurable operating modes to accommodate diverse energy requirements. Users can easily switch between off-grid, grid-tied, and grid charging modes, offering exceptional flexibility for various power scenarios.
- Double LCD smart touchscreen display for intuitive operation
- Generator power curve tracking technology for performance optimization
- AC/DC dual backup for auxiliary power supply reliability
- Advanced control technology for unbalanced load management
- Standard RS-485 Modbus RTU protocol for seamless communication
- Optional PWM dump load overvoltage and overspeed protection
- Water gate motor control capabilities
- WIFI/LAN remote monitoring and control application
- Customized sensor control functions
- Static Transfer Switch (STS) integration for grid-tie and off-grid applications
Technical Specifications
| Parameter |
Specification |
| Product Name |
Generator Hybrid Convertor |
| Environment Temperature |
-40 to 60°C |
| Input Voltage Range |
240 to 550 V DC |
| Voltage Range |
150V - 550V |
| Input Voltage Range (Alternative) |
350-450V DC |
| Display Mode |
LCD Touch Screen |
| Output Frequency |
50Hz/60Hz |
| Ground Fault Monitoring |
Yes |
| Topology |
AC-DC Rectifier, DC-DC Buck Boost, DC-AC Inverter, EMS |
| Maximum Efficiency |
95% |
Application Scenarios
The GREEF AC PCS On Grid Controller is a versatile and reliable power management solution designed for residential, commercial, and industrial applications requiring stable and sustainable power supply. Certified with CE standards, this controller excels in renewable energy systems, particularly solar and wind power installations.
Advanced remote control capabilities enable users to monitor and manage systems from any location, while specialized wind controller functionality optimizes performance in wind power generation setups. The device adapts to various regional electrical standards with 50Hz/60Hz output frequency support and includes essential ground fault monitoring for enhanced safety.
The intuitive LCD touchscreen display facilitates easy configuration, real-time monitoring, and system diagnostics, making it ideal for microgrid systems, remote power stations, and backup power solutions.
Customization Options
GREEF offers customizable On Grid Controller solutions under model number AC PCS. These Generator Hybrid Convertors feature powerful remote control systems for efficient energy management and monitoring.
Customization Features:
• Voltage Range: 150V to 550V
• Input Voltage: 240-550V DC (350-450V DC specific range)
• Maximum Efficiency: 95%
• PWM unloading + three-phase unloading system
• CE Certified for international standards compliance
Packaging utilizes protective foam and plywood cases to ensure safe delivery. Minimum order quantity is 1 set with negotiable pricing. Delivery is completed within 25 working days with flexible payment options including T/T, Western Union, MoneyGram, and L/C.
Packaging and Shipping Information
Product Packaging: The On Grid Controller is securely packaged in sturdy, eco-friendly cardboard boxes with foam inserts to prevent movement and damage during transit. Each package includes the controller unit, comprehensive user manual, mounting hardware, and necessary cables, all organized for easy unpacking and installation.
Shipping: Products are shipped via reliable courier services with full tracking capabilities. All packages undergo thorough inspection before dispatch to ensure quality and completeness. Shipping options include standard and expedited delivery with estimated delivery times provided at checkout. International shipping includes appropriate customs documentation.
