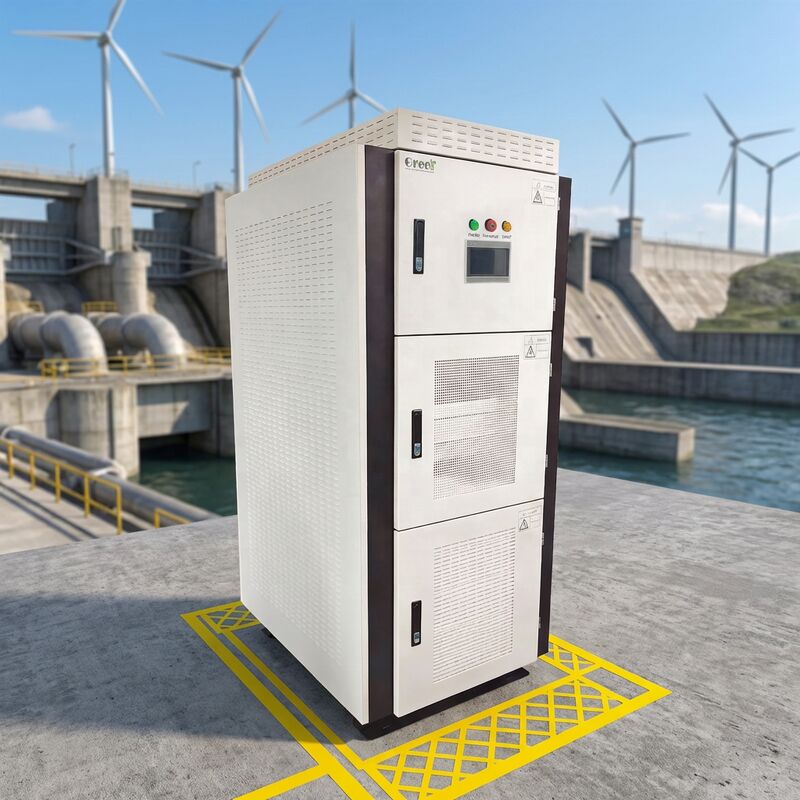

Generator Hybrid Converter with Energy Management System
The GREEF ENERGY multi-functional converter integrates multiple essential functions into a single device. It provides AC-to-DC rectification specifically engineered for permanent magnet generators (PM generators), along with battery charging, DC-to-AC inversion, and a comprehensive energy management system. This integrated approach creates a versatile solution for diverse energy applications.
Featuring a configurable dual LCD touchscreen, the converter offers an intuitive interface for easy monitoring and adjustment of settings. Advanced converter technology ensures stable voltage and frequency control when operating with permanent magnet synchronous generators (PMSGs), guaranteeing continuous and reliable power supply to connected loads.
The converter can also be configured for grid-tied operation, enabling synchronization with the power grid for seamless integration and grid charging capabilities. This flexibility makes the GREEF ENERGY converter suitable for both off-grid and grid-connected energy systems.
Key Features
EMS Smart Energy Management System
- Multiple configurable operating modes: off-grid, grid-tied, and grid charging
- Double LCD smart touch screen display for intuitive monitoring and control
- Generator power curve tracking technology for optimized performance
- AC/DC dual backup for reliable auxiliary power supply
- Advanced control technology for managing unbalanced loads
- Standard RS 485 Modbus RTU protocol for seamless communication
- Optional PMW dump load over-voltage and over-speed protection
- Optional water gate motor control functionality
- Optional WIFI/LAN remote monitoring and control via app
- Customized sensor control functions available
- Optional Static Transfer Switch (STS) for grid-tie and off-grid applications
Technical Specifications
| Product Name |
Generator Hybrid Convertor |
| Degree Of Protection |
IP20 |
| Topology |
AC-DC Rectifier, DC-DC Buck Boost, DC-AC Inverter, EMS |
| Environment Temperature |
-40 to 60°C |
| Maximum Efficiency |
95% |
| Input Voltage Range |
240-550 V DC |
| Voltage Range |
150V - 550V |
| Ground Fault Monitoring |
Yes |
| Input Voltage Range (alternative) |
350-450 V DC |
| Communication Mode |
Ethernet, RS485, WIFI |
Applications
The Greef AC PCS On Grid Controller provides a highly reliable and efficient solution for managing and optimizing energy flow in grid-tied solar power systems. CE certified and manufactured in China, this product operates efficiently in extreme environmental temperatures from -40°C to 60°C, making it ideal for diverse climates and challenging outdoor conditions.
Advanced power curve controller function intelligently manages power output to maximize efficiency and stability when interfacing with the utility grid. This capability is essential for solar farms, commercial buildings, and residential solar installations where maintaining power quality and grid compliance is critical.
With AC-DC Rectifier, DC-DC Buck Boost, and DC-AC Inverter topology, the Greef AC PCS model effectively converts and regulates power, supporting seamless energy transfer between solar panels, battery storage, and the electrical grid.
Typical Application Scenarios
- Residential solar power systems
- Commercial rooftop solar installations
- Utility-scale solar farms
- Industrial renewable energy projects
- Off-grid hybrid systems with intermittent grid connection
- Microgrids and hybrid power systems
Customization Options
Greef offers customized On Grid Controller solutions with model number AC PCS, designed as a Generator Hybrid Converter to meet specific requirements. Our advanced wind generator controller supports monitoring of wind turbine speed and wind speed for optimal performance and safety.
Customization Details:
Minimum Order Quantity: 1 set
Delivery Time: Approximately 25 working days
Packaging: Foam and plywooden case
Payment Terms: T/T, Western Union, MoneyGram, L/C
Pricing: Negotiable based on requirements
Packaging and Shipping
Product Packaging
The On Grid Controller is carefully packaged to ensure maximum protection during transit. Each unit is enclosed in an anti-static bag and cushioned with foam inserts inside a sturdy cardboard box. The packaging includes the controller, user manual, mounting accessories, and necessary cables, all securely arranged to prevent movement.
Shipping Information
We offer reliable shipping options via trusted carriers with tracking provided for all orders. Shipping times vary by destination, with expedited shipping options available. All shipments are insured against loss or damage during transit to ensure complete customer satisfaction.
