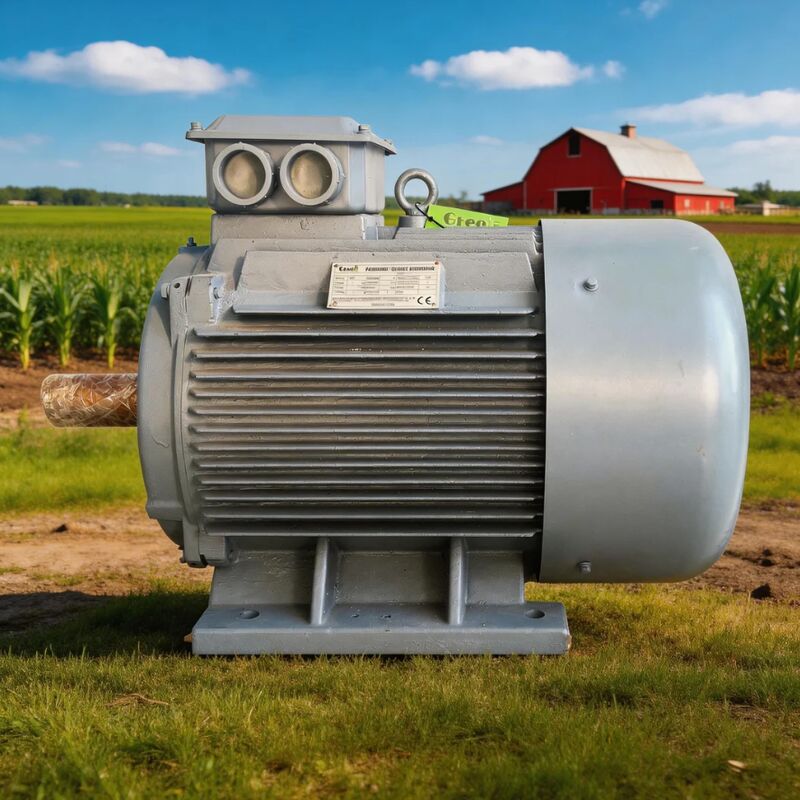

IP67 Rated 3 Phase AC Permanent Magnet Generator - Compact, Durable and Suitable for Various Industries
Product Overview
The fundamental concept behind a permanent magnet generator lies in its rotor, which is equipped with permanent magnet materials that create a steady magnetic field. This constant magnetic field is essential for the generator's operation.
When an external force, often referred to as the prime mover—such as a wind turbine, water turbine, or an engine—causes the rotor to spin, the magnetic field produced by the magnets rotates along with it. As this magnetic field moves, it intersects with the conductors present in the stator windings.
Based on the laws of electromagnetic induction, the movement of the magnetic field relative to the stator windings induces an electromotive force (EMF) within those windings. If these windings are connected to an external electrical circuit, this induced EMF allows electrical power to be generated and delivered to that circuit.
Key Features
- Direct drive system with simple design, no gear-box required, utilizing brushless technology
- Efficiency exceeding 95% with power factor approaching 1 for optimal performance
- Equipped with inserted Nd-Fe-B permanent magnets supporting both clockwise and anticlockwise rotation
- Capable of generating high voltage and power even at low speeds
- Designed for longevity with over 20-year lifespan and continuous 24/7 operation capability
- Customization available for voltage, speed, power, frequency, and other parameters
- Comprehensive 3-year free guarantee with lifelong service support
Technical Specifications
| Parameter |
Specification |
| Rated Power |
0.5 kW to 5000 kW |
| Rated Rotational Speed |
20 to 3000 RPM |
| Frequency |
50 to 60 Hz |
| Number of Poles |
2 to 48 |
| Generator Type |
3-phase AC Synchronous |
| Magnet Type |
NdFeB (Neodymium Iron Boron) |
| Winding Configuration |
Y-type |
| Maximum Magnet Temperature |
120°C |
| Maximum Winding Temperature |
180°C |
| Efficiency |
> 95% |
| Insulation Grade |
H |
| Insulating Resistance |
≥ 100 MΩ at 500 VDC |
| IP Rating |
IP54 |
| Shell Material |
Cast Iron |
| Winding Material |
100% Copper |
| Shaft Material |
High-quality Steel |
| Iron Core Material |
Cold-rolled Silicon Steel Sheets |
| Bearings |
SKF Brand |
| Cooling Method |
Fan-cooling |
| Weight |
Approximately 1200 kg |
| Installation |
Horizontal or Vertical |
Applications
- Wind Power Generation: Essential component in direct-drive and semi-direct-drive wind turbines with high efficiency during variable-speed operations
- Marine and Offshore: Used as ship shaft generators and in main/auxiliary power systems with robust reliability and minimal maintenance
- Backup Power Systems: Integrated into diesel and gas generator sets for prompt, stable emergency or standby power
- High-Speed Applications: Employed in microturbines and flywheel energy storage systems requiring performance at elevated rotational speeds
- Industrial Special-Purpose: Utilized in applications demanding high power density and utmost reliability
Customization Services
Greef offers comprehensive customization services for our Permanent Magnet Generator (Model GDF). This 3 Phase AC Permanent-magnet power generator features a pole range of 2-48 and utilizes high-quality Y-type winding material for optimal performance.
Our magnetic power generator features LOW START TORQUE, making it ideal for applications requiring efficient energy conversion at low speeds. With a rated rotor speed ranging from 20 to 3000 RPM, this generator delivers reliable magnetic power output suitable for various industrial needs.
We guarantee quality with CE certification and use SKF bearings to enhance durability and reduce maintenance. Each unit is carefully packaged in foam and plywood cases to ensure safe delivery.
Order Information: Minimum order quantity: 1 set | Price: Negotiable | Delivery Time: Approximately 25 working days | Payment Terms: T/T (Flexible)
Packaging and Shipping
Our Permanent Magnet Generator is carefully packaged to ensure it arrives in perfect condition. Each unit is securely wrapped with protective materials to prevent damage during transit. The generator is then placed in a sturdy, custom-designed cardboard box that provides additional cushioning and support.
For shipping, we use reliable carriers that offer tracking and insurance services to guarantee safe and timely delivery. The packaging is clearly labeled with handling instructions and product information to facilitate smooth transportation and handling. Whether shipping domestically or internationally, we prioritize the protection and integrity of your Permanent Magnet Generator throughout the entire shipping process.
