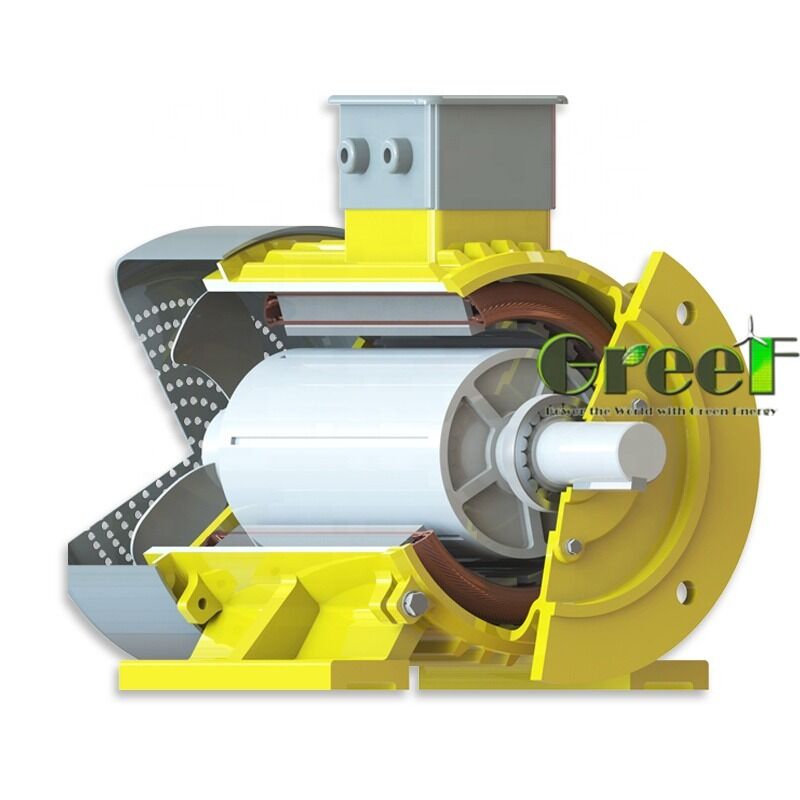

100% Copper Winding Low Speed Permanent Magnet Generator with IP54 Protection for Industrial Applications

100% copper winding permanent magnet generator

low speed permanent magnet generator IP54

industrial permanent magnet generator with warranty

Brand Name:

Greef

Certification:

Model Number:

GDF

Request A Quote

Product Details

Insulating Resistance:

100Mohm Min(500Vdc)

Classification Of Degrees:

IP54

Power Range:

500W-5000kw

Generatror Shell Material:

Cast Iron

Magnet Type:

NdFeB

Cooling Method:

Fan/water/self Cooling

Warranty:

3 Years

Winding Material:

100% Copper

Highlight:

100% copper winding permanent magnet generator

low speed permanent magnet generator IP54

industrial permanent magnet generator with warranty

Payment & Shipping Terms

Minimum Order Quantity

1 Set

Price

Negotiable

Packaging Details

Foam+plywooden Case

Delivery Time

25 Working Days

Payment Terms

T/T

Cast Iron Shell IP54 Rated 3 Phase AC Permanent Magnet Generator for Industrial Power Generation

Get Best Price

Video

12VAC to 1140VAC Permanent Magnet Generator with Fan Water Self Cooling and IP54 Classification

Get Best Price

Video

Low Start Torque Permanent Magnet Generator with 12VAC - 1140VAC Rated Voltage for Industrial Performance

Get Best Price

Video

NdFeB Permanent Magnet Generator PMG with 500W-5000kW Power Range IP54 Rated and Fan/Water/Self Cooling Options

Get Best Price

Contact Now

Product Description

100 Percent Copper Winding Material Low Speed Electrical Generator Optimized for Energy Conversion and Durable Industrial

Product Description

The fundamental concept behind a permanent magnet generator is that the rotor is equipped with permanent magnet materials which create a stable and continuous magnetic field. This magnetic field remains constant as the rotor spins.

When a prime mover, such as a wind turbine, water turbine, or an engine, causes the rotor to rotate, the magnetic field produced by the permanent magnets moves relative to the stator windings. As the magnetic field rotates, it cuts through the conductors in the stator.

Following the law of electromagnetic induction, this motion induces an electromotive force (EMF) within the stator windings. When an external load is connected to the generator, this EMF drives an electric current, thus generating electrical power that can be used in various applications.

Key Features

Exceptional high efficiency for optimal performance while minimizing energy loss
Energy conservation design emphasizing power saving without compromising functionality
High power factor maximizing effective use of electrical power
Compact size for space-saving advantages in limited installation areas
High power density delivering significant power output relative to size
Large starting pitch for smooth and reliable startup performance
Low noise levels and reduced temperature rise during operation
Enhanced durability and reliability with robust construction
Smooth torque and speed control with high mechanical rigidity

Technical Parameters

Magnet Type	NdFeB
Warranty	3 Years
Winding Method	Y
Power Range	500W - 5000kW
Classification Of Degrees	IP54
Insulating Resistance	100Mohm Min (500Vdc)
Type	Electrical Generator
Generator Shell Material	Cast Iron
Winding Material	100% Copper
Shaft Type	Vertical/Horizontal

Applications

Wind Energy: Essential component in direct-drive and semi-direct-drive wind turbines, maintaining high efficiency during variable-speed operations
Marine and Offshore: Ideal for ship shaft generators and main/auxiliary power systems due to robustness and minimal maintenance
Backup Power: Integrated into diesel and gas generator sets for quick-response, stable emergency or standby power
High-Speed Applications: Suited for microturbines and flywheel energy storage systems requiring reliable performance at elevated speeds
Industrial Equipment: Employed in specialized machinery demanding high power density combined with maximum reliability

Customization Options

Greef Customized Permanent Magnet Generator Services

Model: GDF | Made in China

Our magnetic power generator is designed as a low speed, low start torque electrical generator, ensuring efficient performance and reliability.

Features robust cast iron shell material and 100% copper winding material for superior conductivity and durability.

Certified with CE and classified with IP54 degree of protection for demanding environments.

Rated voltage ranges from 12VAC to 1140VAC to meet diverse application needs.

Minimum order quantity: 1 set with negotiable pricing.

Packaging: Foam and plywooden cases for safe delivery.

Delivery time: Approximately 25 working days.

Payment terms: T/T.

Packing and Shipping

The Permanent Magnet Generator is carefully packaged to ensure safe delivery and optimal protection during transit. Each unit is securely wrapped with anti-static and shock-absorbing materials, then placed in a custom-fit foam insert inside a sturdy cardboard box.

For bulk orders, products are placed in reinforced wooden crates with additional padding and secured firmly to avoid shifting during transport. All packages are clearly labeled with handling instructions, product details, and shipping information.

Shipping options include air freight, sea freight, and express courier services. We work with trusted logistics partners to ensure timely and safe delivery worldwide. Tracking information is provided once the order is dispatched.

We recommend inspecting the package upon arrival and reporting any damages immediately to facilitate prompt resolution.
